YTH 160 DR - Electrolux/AYP Lawn Tractor LIFT ADJUSTMENT ASSEMBLY Parts Diagram

Lawn Tractor

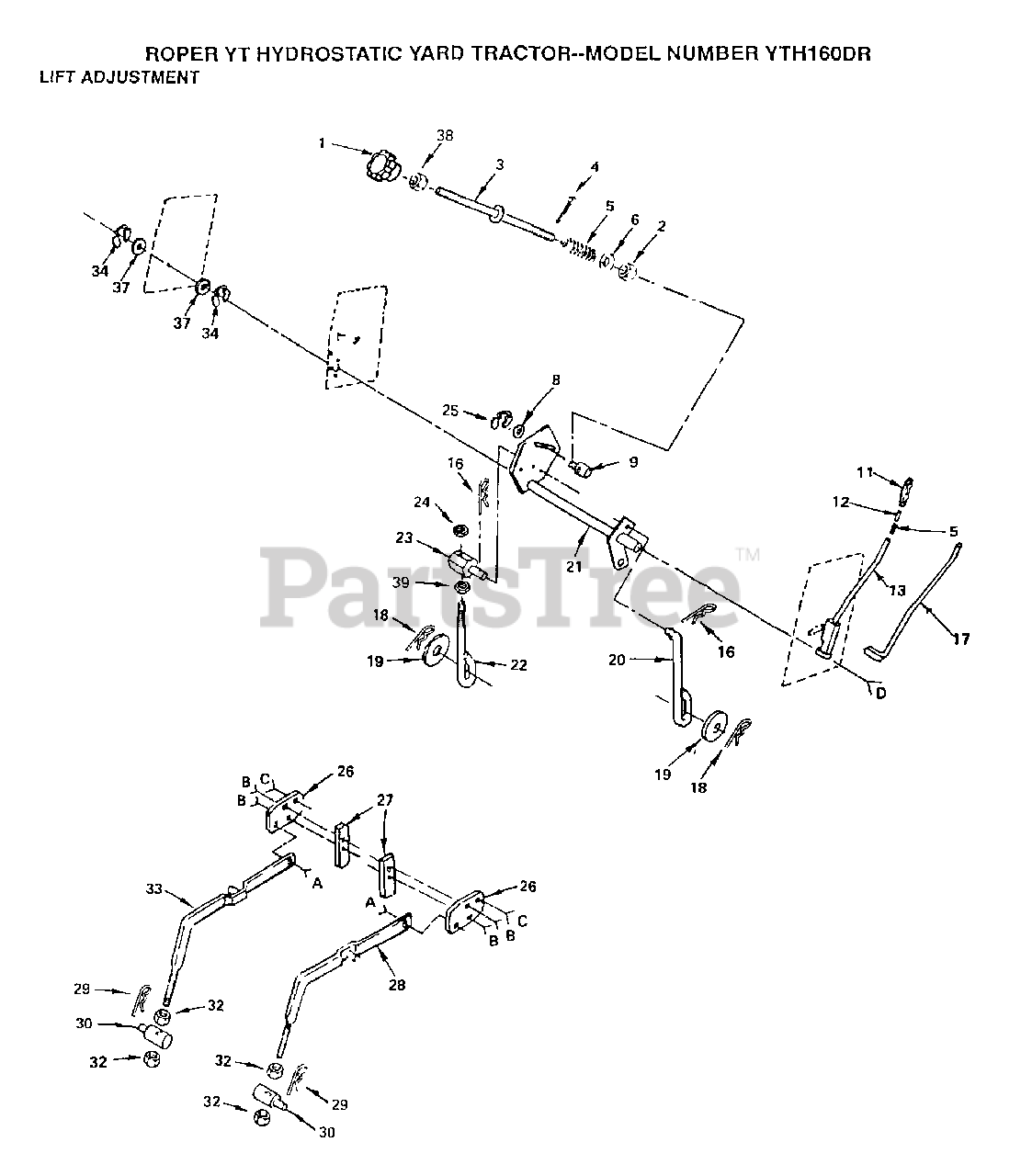

LIFT ADJUSTMENT ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 121891X

HDLE ADJ LIFT
(Superseded to 532121891)

$

$

Not available

2

Electrolux/AYP 110807X

NUT T
(Superseded to 532110807)

$

$

Not available

3

Electrolux/AYP 110729X

ROD LIFT LT
(Superseded to 532110729)

$

$

Not available

4

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available

5

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

8

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

9

Electrolux/AYP 110810X

TRUNION LT
(Superseded to 532110810)

$

$

Not available

11

Electrolux/AYP 109413X

GRIP
(Superseded to 532109413)

$7.99

$

In Stock, only 1 left!

0

12

$

$

Not available

13

Electrolux/AYP 121004X

SUB= 123096X

$

$

Not available

16

Murray 4939M

SUB= 85902

$

$

Not available

17

Electrolux/AYP 121006X

LEVER ROD LT
(Superseded to 532121006)

$34.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

$2.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 110029X

LIFT LINK LT
(Superseded to 532110029)

$

$

Not available

21

$

$

Not available

22

Electrolux/AYP 110448X

PIVOT PIN T
(Superseded to 532110448)

$7.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 110447X

SUB= 132793
(Superseded to 532110447)

$

$

Not available

24

$2.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 12000037

KLIP RING
(Superseded to 812000037)

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 105864X

"BRACKET, SUSPE T"

$

$

Not available

27

Electrolux/AYP 121252X

UPSTOP
(Superseded to 532121252)

$4.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 121600X

SUB= 121598X

$

$

Not available

29

Electrolux/AYP 9135R

SPRING H
(Superseded to 532009135)

$4.99

$

Usually ships in 3-10 days

0

30

$

$

Not available

32

Electrolux/AYP 73220800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

33

Electrolux/AYP 121601X

SUB= 121599X

$

$

Not available

34

Electrolux/AYP 12000022

E-RING
(Superseded to 812000022)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 19292016

WASHER
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 73360700

NUT
(Superseded to 873610700)

$7.49

$

In Stock, only 4 left!

0
