YTH 160 DR - Electrolux/AYP Lawn Tractor DIFFERENTIAL, PUMP ASSY Parts Diagram

Lawn Tractor

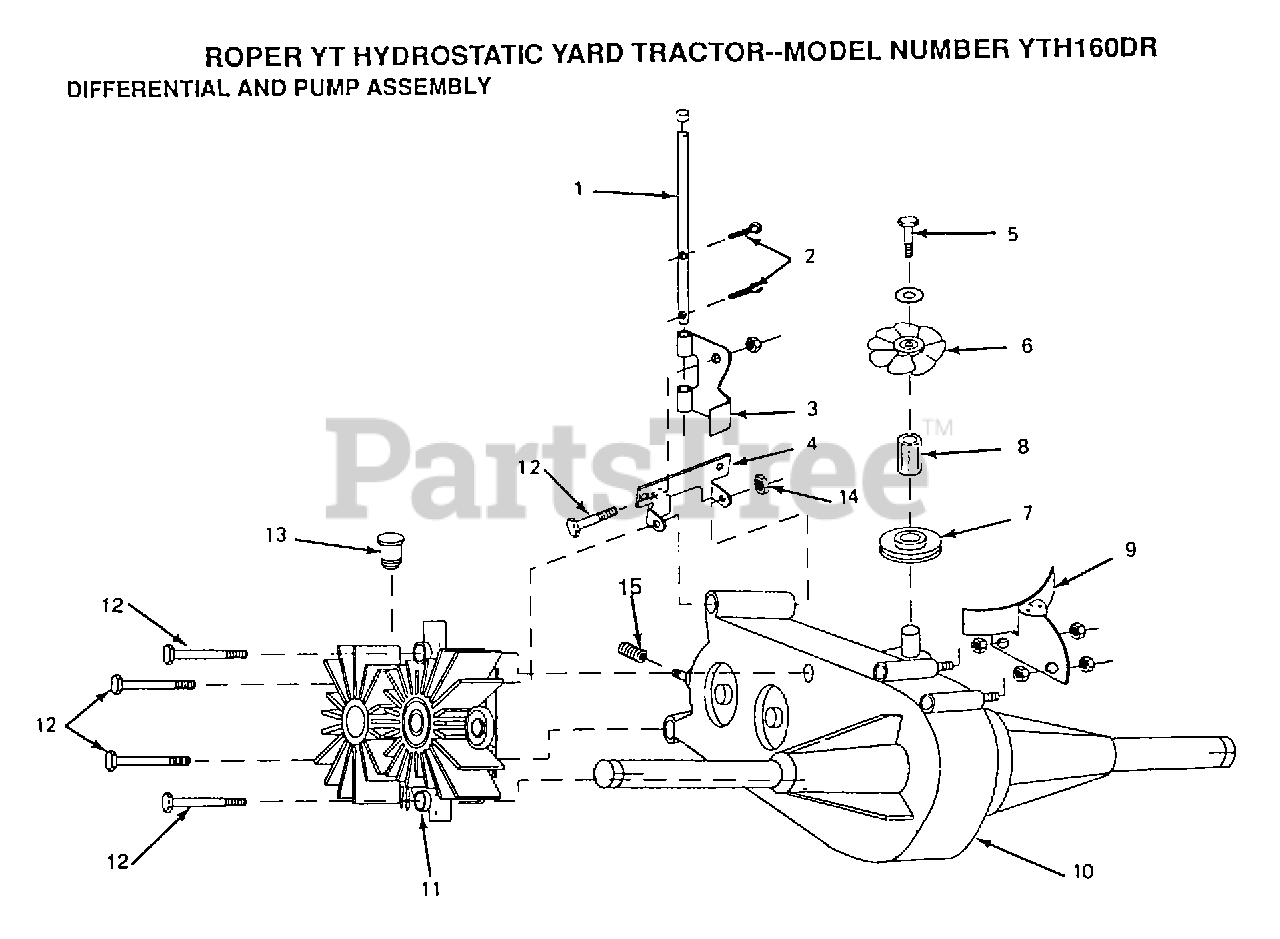

DIFFERENTIAL, PUMP ASSY Parts Diagram

  • Title

1

Electrolux/AYP 121192X

SUB= 123634X

$

$

Not available

2

Electrolux/AYP 76020312

SUB= 3145
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 121193X

SUB= 123634X

$

$

Not available

4

Electrolux/AYP 121188X

BRACKET
(Superseded to 532121188)

$

$

Not available

5

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

6

Electrolux/AYP 121186X

FAN
(Superseded to 532121186)

$

$

Not available

7

Electrolux/AYP 121180X

PULLEY TRANSAXLE
(Superseded to 532121180)

$

$

Not available

8

Electrolux/AYP 121211X

STANDOFF
(Superseded to 532121211)

$

$

Not available

9

Electrolux/AYP 121182X

GUARD ASSY
(Superseded to 532121182)

$

$

Not available

10

REFER TO IMAGE

$

$

Not available

11

REFER TO IMAGE

$

$

Not available

12

Electrolux/AYP 74760572

BOLT
(Superseded to 874780580)

$5.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 121323X

PUMP.2003081.
(Superseded to 532121323)

$

$

Not available

14

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 121250X

SPRING
(Superseded to 532121250)

$7.49

$

Usually ships in 3-10 days

0
