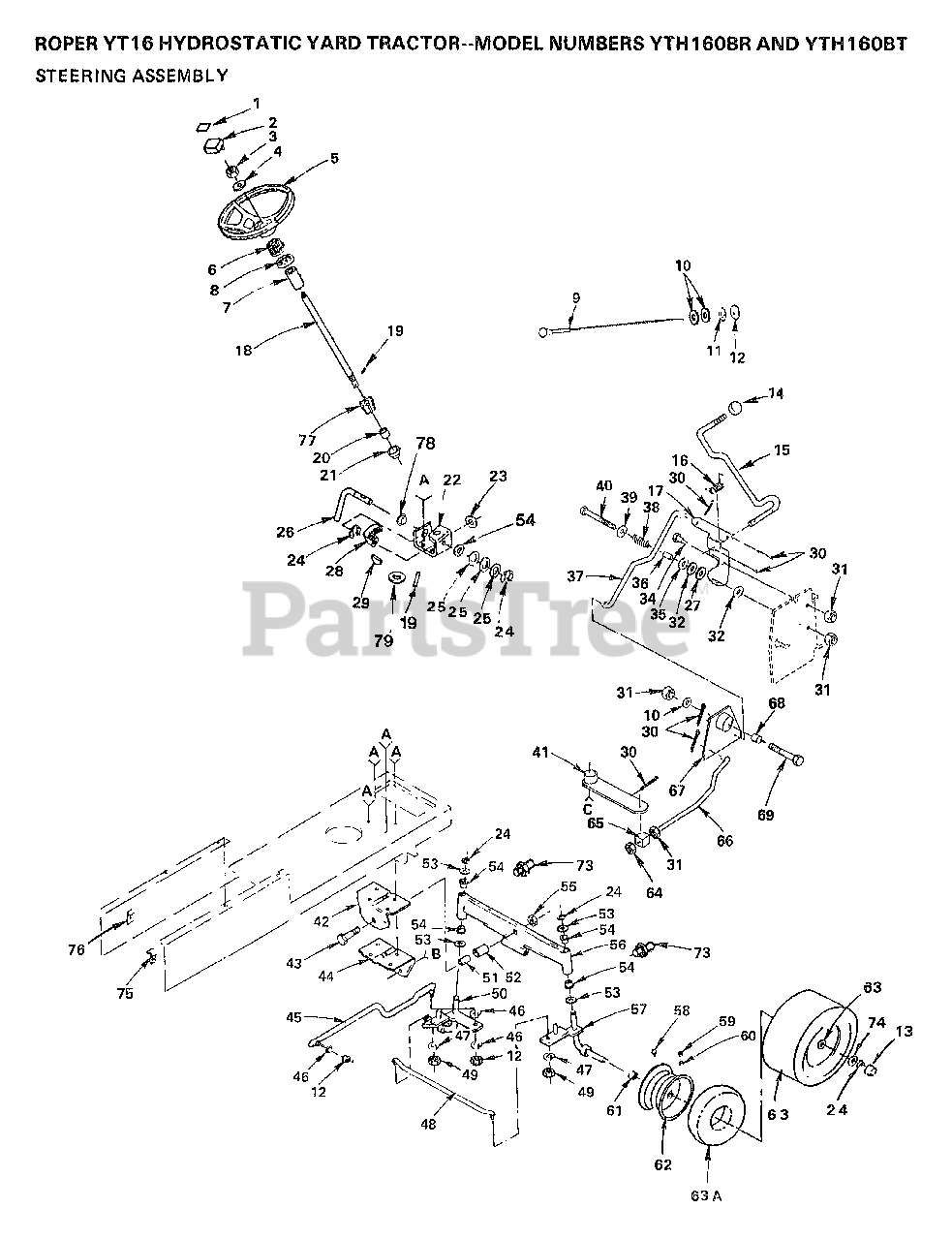

YTH 160 BT - Electrolux/AYP Lawn Tractor STEERING Parts Diagram

Lawn Tractor

STEERING Parts Diagram

  • Title
1

Electrolux/AYP 104590X

DECAL - STEERING WHEEL

$

$

Not available

2

Electrolux/AYP 100710L

INSERT-WHEEL LT
(Superseded to 532100710)

$

$

Not available

3

Electrolux/AYP 73360800

NUT
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

4

Electrolux/AYP 100712K

WASHER
(Superseded to 532100712)

$

$

Not available

5

$

$

Not available

6

Electrolux/AYP 100711L

ADAPTER LT
(Superseded to 587738905)

$9.49

$

Usually ships in 3-10 days

0

$

$

Not available

$

$

Not available

9

Electrolux/AYP 6447J

SUB= 132781
(Superseded to 532132781)

$

$

Not available

10

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 106933X

KNOB T (1/2-HOLE)
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

$

$

Not available

$

$

Not available

17

Electrolux/AYP 108196X

BRKT CONTROL HYT
(Superseded to 532108196)

$

$

Not available

18

Electrolux/AYP 109557X

STEERING SHAFT T

$

$

Not available

19

$

$

Not available

20

Electrolux/AYP 74580

SHAFT SPACER LT

$

$

Not available

21

Electrolux/AYP 71208

BUSHING
(Superseded to 532071208)

$3.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 109432X

SUB= 110150X

$

$

Not available

23

Electrolux/AYP 19212016

WASHER D
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.49

$

In Stock, Qty 15

0

26

Electrolux/AYP 108683X

ROD STEERING T

$

$

Not available

27

Electrolux/AYP 108972X

WASHER HYT
(Superseded to 532108972)

$

$

Not available

28

Electrolux/AYP 108684X

GEAR.SECTOR.HYT

$

$

Not available

29

Electrolux/AYP 106126X

KEY-WOODRUFF LT

$

$

Not available

30

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 108200X

WASHER FRIC HYT
(Superseded to 532108200)

$

$

Not available

34

Electrolux/AYP 108518X

BOLT HYT
(Superseded to 532108518)

$

$

Not available

35

Electrolux/AYP 19212016

WASHER D
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 108201X

SPACER HYT
(Superseded to 532108201)

$

$

Not available

37

Electrolux/AYP 108397X

LINK CONTROL HY

$

$

Not available

38

Electrolux/AYP 108844X

SPRING HYT
(Superseded to 532108844)

$

$

Not available

39

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 74760648

BOLT - HEX 3/8 - 16 X 3
(Superseded to 583614301)

$

$

Not available

41

Electrolux/AYP 108209X

ARM ASSEM HYT

$

$

Not available

42

Electrolux/AYP 105663X

SUPPORT-SADDL T
(Superseded to 532105663)

$

$

Not available

43

Electrolux/AYP 74761060

BOLT LT
(Superseded to 874761060)

$6.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 105664X

SUPPORT.SADDLE.FT
(Superseded to 532105664)

$9.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 105727X

LINK-DRAG LT
(Superseded to 532105727)

$

$

Not available

46

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

48

$

$

Not available

49

Electrolux/AYP 73610500

NUT
(Superseded to 582737001)

$2.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 105655X

SPINDLE LH YT

$

$

Not available

51

$

$

Not available

52

Electrolux/AYP 105725X

SUB= 110438X

$

$

Not available

53

$

$

Not available

54

Electrolux/AYP 3366R

COL. SRTG. BEAR.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

55

Electrolux/AYP 73901000

"NUT-LOC,FLANGE LT"
(Superseded to 583612401)

$3.49

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 108075X

FRONT AXLE
(Superseded to 532108075)

$

$

Not available

57

$

$

Not available

58

Electrolux/AYP 278H

FITTING LT
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

60

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

61

Electrolux/AYP 9040H

"FLANGE, BEARING"
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

62

Electrolux/AYP 106732X

SUB= 106732X417

$

$

Not available

63

Electrolux/AYP 106222X

SUB= 122073X
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

63A

Electrolux/AYP 59904

TUBE.5.3/4.5/6
(Superseded to 532059904)

$37.99

$

In Stock, Qty 9

0

64

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

65

Electrolux/AYP 108212X

TRUNION HYT
(Superseded to 532108212)

$18.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 108213X

ROD-ADJ. CONTROL

$

$

Not available

67

Electrolux/AYP 108205X

"HYT, BELLCRANK"

$

$

Not available

68

$

$

Not available

69

Electrolux/AYP 74760624

SUB= 74930624
(Superseded to 874760624)

$7.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 6855M

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

74

$

$

Not available

75

Electrolux/AYP 5320R

INSUL CLIP T
(Superseded to 532005320)

$5.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

77

Electrolux/AYP 108685X

GEAR PINION T

$

$

Not available

78

Electrolux/AYP 109816X

NYLINER T
(Superseded to 532109816)

$6.49

$

In Stock, only 2 left!

0

79

$

$

Not available
