YTH 160 AR - Electrolux/AYP Lawn Tractor DIFFERENTIAL, PUMP ASSY Parts Diagram

Lawn Tractor

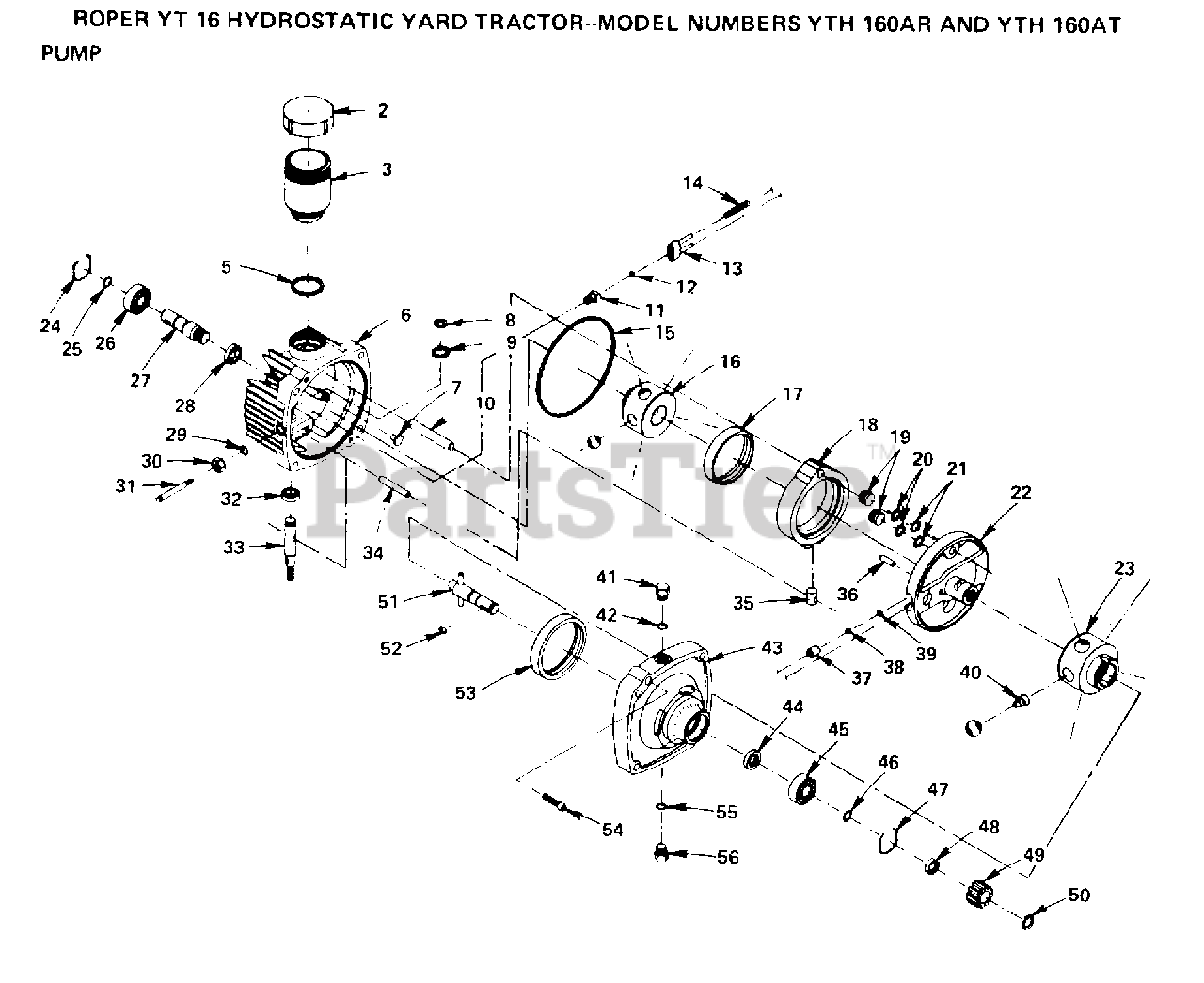

DIFFERENTIAL, PUMP ASSY Parts Diagram

  • Title
1

Electrolux/AYP 106932X

KNOB T(3/8 HOLE)
(Superseded to 532106932)

$7.99

$

In Stock, Qty 5

0

2

Electrolux/AYP 108587X

ROD COAST HYT

$

$

Not available

3

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 108212X

TRUNION HYT
(Superseded to 532108212)

$18.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 108222X

CONTROL COAST HYT

$

$

Not available

7

Electrolux/AYP 108182X

BRKT ASSEM HYT

$

$

Not available

8

Electrolux/AYP 74760648

BOLT - HEX 3/8 - 16 X 3
(Superseded to 583614301)

$

$

Not available

9

Electrolux/AYP 74760416

BOLT
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 19092016

WASHER
(Superseded to 819092016)

$6.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 108833X

FAN HYDRO HYT
(Superseded to 583655801)

$5.99

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

14

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

16

$13.99

$

Usually ships in 3-10 days

0

$

$

Not available

18

Electrolux/AYP 2898J

KEY T
(Superseded to 532002898)

$

$

Not available

19

Electrolux/AYP 108180X

PUMP HYDRO HYT

$1025.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 108179X

GASKET HYDRO HYT
(Superseded to 583654501)

$3.99

$

Usually ships in 3-10 days

0

21

REFER TO IMAGE

$

$

Not available

22

$

$

Not available

23

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0
