YTH 160 (954140008-A) - Husqvarna Yard Tractor (1997-11) Seat Assembly Parts Diagram

Yard Tractor

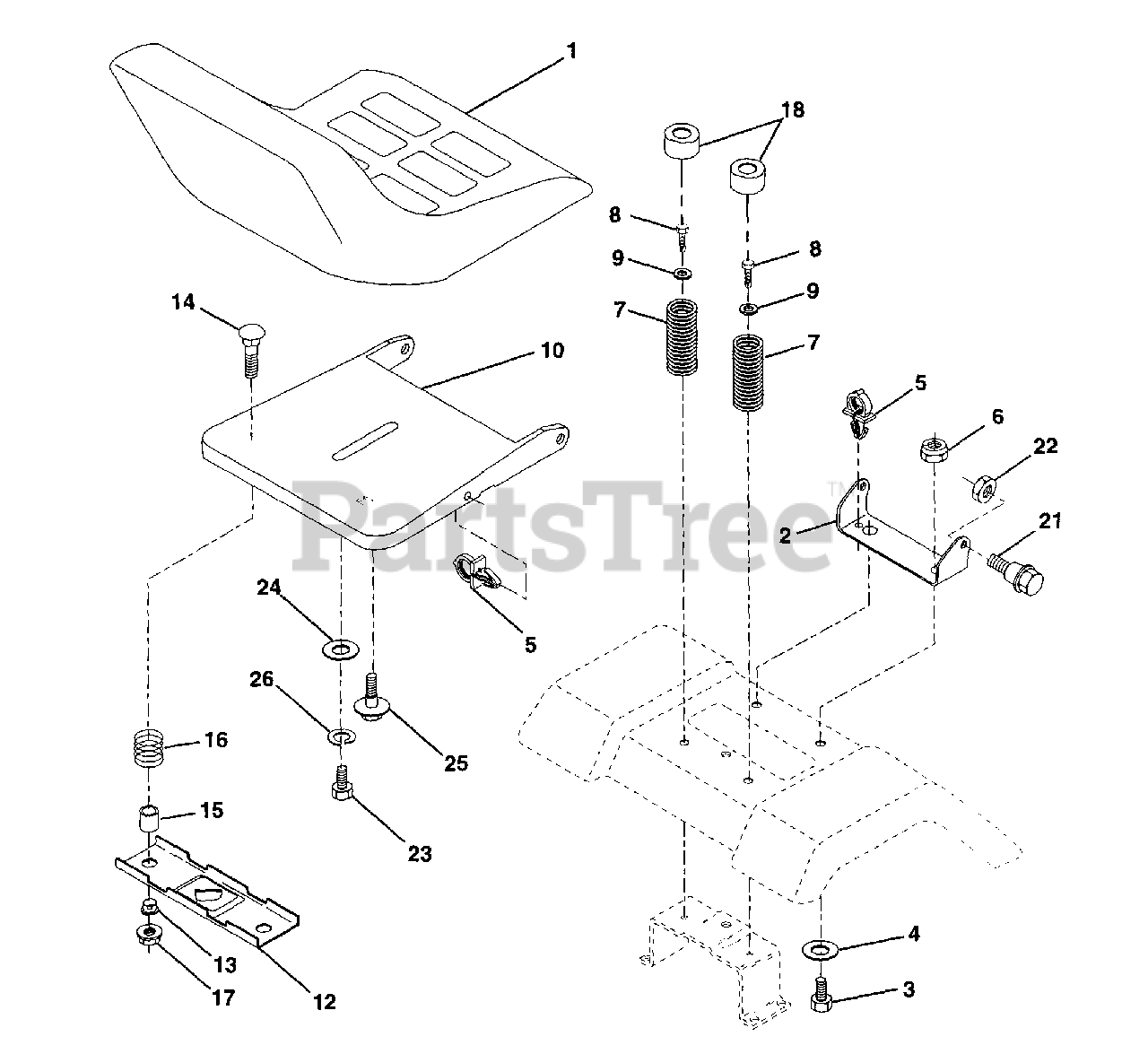

Seat Assembly Parts Diagram

  • Title
1

Husqvarna 532140839

Seat
(Superseded to 532439699)

$206.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532140551

Bracket Pivot Seat 8 720

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 874760616

Bolt Fin Hex 3/8-16unc X 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 819131610

Washer 13/32 X 1 X 10 Ga

$6.49

$

In Stock, Qty 7

0

5

Husqvarna 532145006

Clip Push-In

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

Nut Hex w/Ins. 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

Spring Seat Cprsn 2 250 Blk Zi
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 817490616

Screw Thdrol 3/8-16 X 1 Ty-tt
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 819131614

Washer 13/32 X 1 X 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532155925

Pan Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532121246

Bracket Mounting Switch
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532121248

Bushing Snap Blk Nyl 50 Id

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 872050411

Bolt Rdhd Sqnk 1/4-20 x 1-3/8

$

$

Not available

15

Husqvarna 532134300

Spacer Split 28 x 96 Yel Zinc

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532121250

Spring Cprsn 1 27 Blk Pnt

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

Nut Lock 1/4 Lge Flg Gr 5 Zinc
(Superseded to 873900400)

$4.99

$

In Stock, Qty 16

0

18

Husqvarna 532124238

Cap Spring Seat Blk

$

$

Not available

21

Husqvarna 532153236

Bolt Shoulder 5/16-18 Unc
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

22

Husqvarna 873800500

Nut Hex Lock W/ins 5/16-18

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 874780814

Bolt, Hex Head, Fin 1/2-13 x 7/8 Grade 5
(Superseded to 871110814)

$10.99

$

Usually ships in 3-10 days

0

24

Husqvarna 819171912

Washer 17/32 X 1-3/16 X 12 Ga.

$7.49

$

In Stock, only 1 left!

0

25

Husqvarna 532127018

Bolt Shoulder 5/16-18 X 62

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 810040800

Washer Lock

$6.99

$

Usually ships in 3-10 days

0
