YTH 16 - Jonsered Yard Tractor (1995-01) SEAT Parts Diagram

Yard Tractor

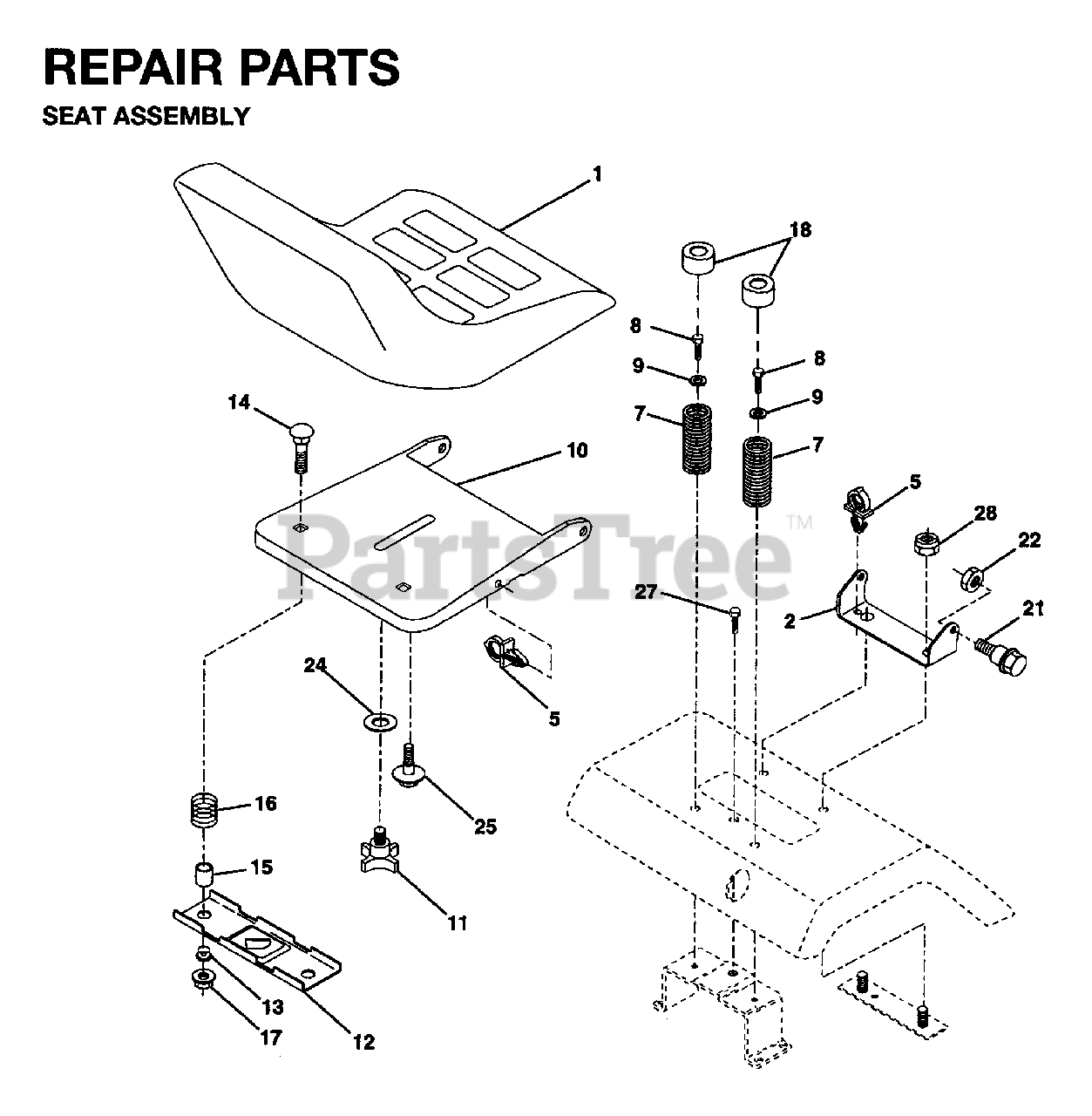

SEAT Parts Diagram

  • Title
1

Jonsered 532127440

SEAT
(Superseded to 532140121)

$

$

Not available

2

Jonsered 532140551

SEAT PIVOT BRKT

$6.49

$

Usually ships in 3-10 days

0

5

Jonsered 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

7

Jonsered 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

$6.49

$

Usually ships in 3-10 days

0

9

Jonsered 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Jonsered 532140552

SEAT PAN
(Superseded to 532155925)

$21.99

$

Usually ships in 3-10 days

0

11

Jonsered 532120068

KNOB 1/2" YT
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

12

Jonsered 532121246

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

$6.49

$

Usually ships in 3-10 days

0

14

Jonsered 872050411

BOLT CARRIAGE 1/4-20X1 3/8

$

$

Not available

15

Jonsered 532121249

SPACER SPLIT

$6.49

$

In Stock, only 2 left!

0

16

Jonsered 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

18

Jonsered 532124238

CAP SPRING

$

$

Not available

$6.49

$

In Stock, only 1 left!

0

22

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

$7.49

$

In Stock, only 1 left!

0

25

Jonsered 532127018

BOLT,SHOULD

$7.49

$

Usually ships in 3-10 days

0

27

$6.49

$

Usually ships in 3-10 days

0

28

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 10

0
