YTH 1542 XPT (960430006-00) - Husqvarna 42" Yard Tractor (2006-06) Mower Deck Parts Diagram

42" Yard Tractor

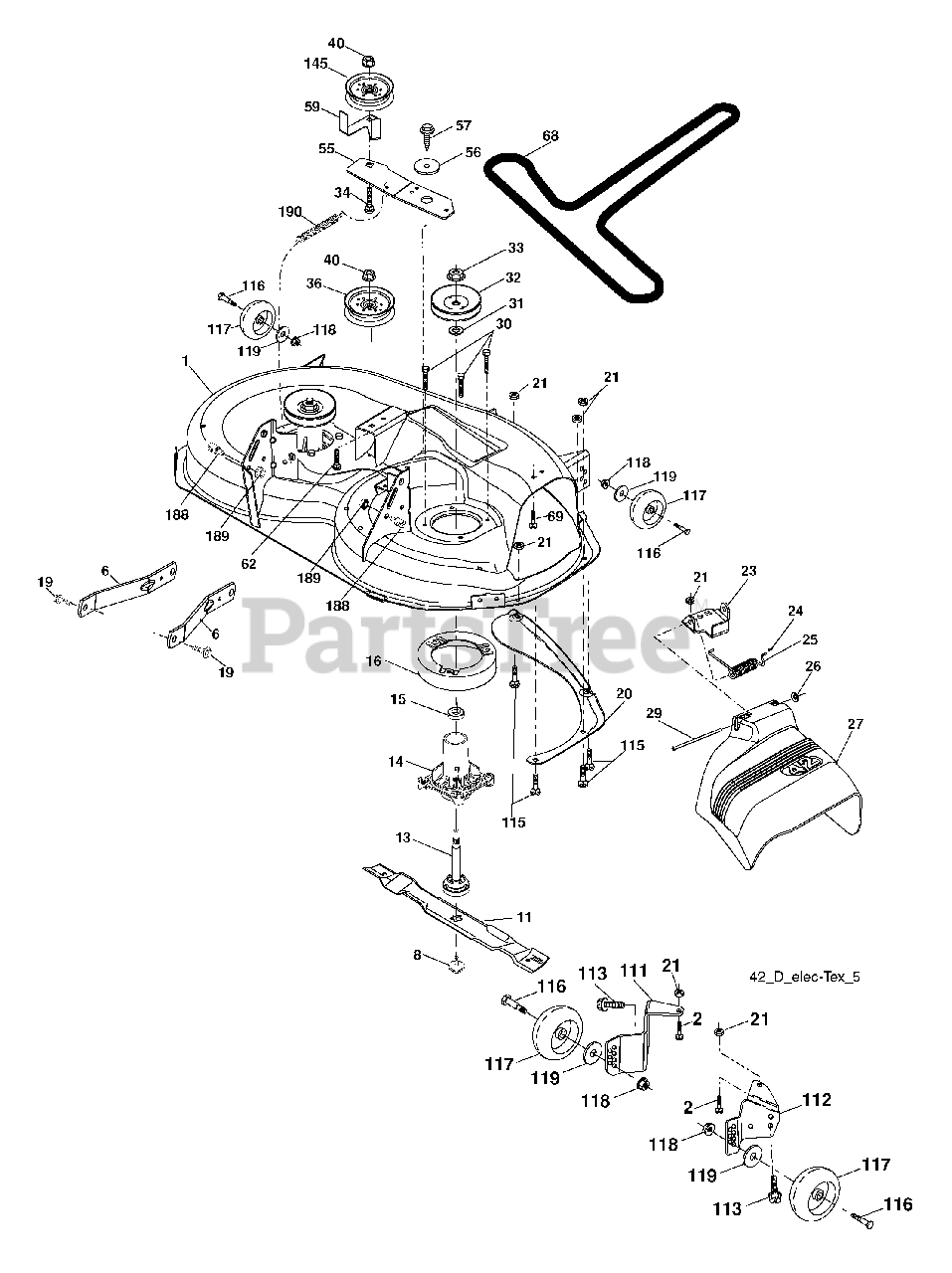

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532402999

Mower Deck Assembly, 42"
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

Bolt Rdhd Sqnk 5/16-18 unc x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532195186

Arm Susp. Rear

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532193003

Bolt/Washer Asm 7/16-20 unf

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532138971

Blade Mower 42" Hi-Lift

Note: (for bagging and discharging)

$20.99

$

In Stock, Qty 20+

0

11

Husqvarna 532134149

Blade, Mulching 42" Std
(Superseded to 594892701)

Note: (for mulching mowers only)

$

$

Not available

11

Husqvarna 532139775

Blade Mulching 42" Premium
(Superseded to 594893101)

Note: (For better wear when mulching)

$

$

Not available

13

Husqvarna 532192872

Shaft Assembly, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

14

Husqvarna 532187281

Housing, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

Husqvarna 532110485

Bearing, Ball, Mandrel

$13.99

$

In Stock, Qty 6

0

16

Husqvarna 532174493

Stripper, Mandrel Deck

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532196539

Bolt, Shoulder

$7.49

$

In Stock, Qty 20+

0

20

Husqvarna 532159770

Baffle, Vortex

$

$

Not available

21

Husqvarna 873680500

Nut
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

Bracket, Deflector Mower 42

$9.49

$

In Stock, Qty 5

0

24

Husqvarna 532105304

Cap, Sleeve 80 x 112 Blk Mower

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532197026

Spring, Torsion, Deflector

$10.99

$

In Stock, Qty 15

0

26

Husqvarna 532110452

Nut, Push Phos & Oil

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532403004

Shield, Deflector 42" Blk

$44.99

$

Usually ships in 3-10 days

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

Rod, Hinge 42" 6 75 W/G
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

Screw Thdrol
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

Washer, Spacer Mower Vented

$4.99

$

In Stock, Qty 8

0

32

Husqvarna 532173436

Pulley, Mandrel

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

Nut, Toplock
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

34

Husqvarna 872110612

Bolt Carr SH 3/8-16 x 1-1/2 Gr.5

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532196106

Pulley, Idler, Flat

$39.99

$

In Stock, Qty 20+

0

40

Husqvarna 873900600

Nut Lock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 532177968

Pulley Idler Glat

$31.99

$

In Stock, Qty 5

0

55

Husqvarna 532197249

Arm, Idler

$

$

Not available

56

Husqvarna 532199092

Spacer, Retainer

$6.99

$

In Stock, Qty 11

0

57

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0

59

Husqvarna 532141043

Guard TUV Idler
(Superseded to 531165901)

$5.99

$

In Stock, only 3 left!

0

61

Husqvarna 532174882

Spring Ext Elect. Clutch

$26.99

$

In Stock, only 2 left!

0

62

Husqvarna 872110616

Bolt Rdhd Sqnk 3/8-16 unc x 2

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532144959

V-Belt, 42" Mower

$43.99

$

In Stock, Qty 20+

0

69

Husqvarna 872140505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

111

Husqvarna 532179292

Bracket Wh Gauge RH
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

112

Husqvarna 532179293

Bracket Wh Gauge LH
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

113

Husqvarna 817000510

Screw 5/16-18

$7.49

$

In Stock, Qty 12

0

115

Husqvarna 872110505

Nut Crownlock
(Superseded to 596039401)

$3.99

$

In Stock, Qty 18

0

116

Husqvarna 532193406

Bolt, Shoulder
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Husqvarna 532174873

Wheel, Gauge
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

118

Husqvarna 873900600

Nut Centerlock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

119

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532173437

Pulley Idler Flat

$28.99

$

In Stock, only 3 left!

0

188

Husqvarna 532195161

Stud Fastner W/D Anti-Rotation

$

$

Not available

189

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

190

Husqvarna 532197251

Spring Mower Drive

$11.99

$

In Stock, only 1 left!

0

Husqvarna 532192870

Mandrel Assembly
(Superseded to 587819701)

Note: (Includes Housing Shaft and Shaft Hardware Only - Pulley Not Included)

$56.99

$

In Stock, Qty 20+

0

Husqvarna 532401228

Replacement Mower
(Superseded to 598602801)

Note: Complete (Std. deck Order separately gauge wheel components Key Nos. 116-119)

$398.99

$

Usually ships in 3-10 days

0
