YTH 1542 XP (960430006-02) - Husqvarna 42" Yard Tractor (2006-10) MOWER DECK / CUTTING DECK Parts Diagram

42" Yard Tractor

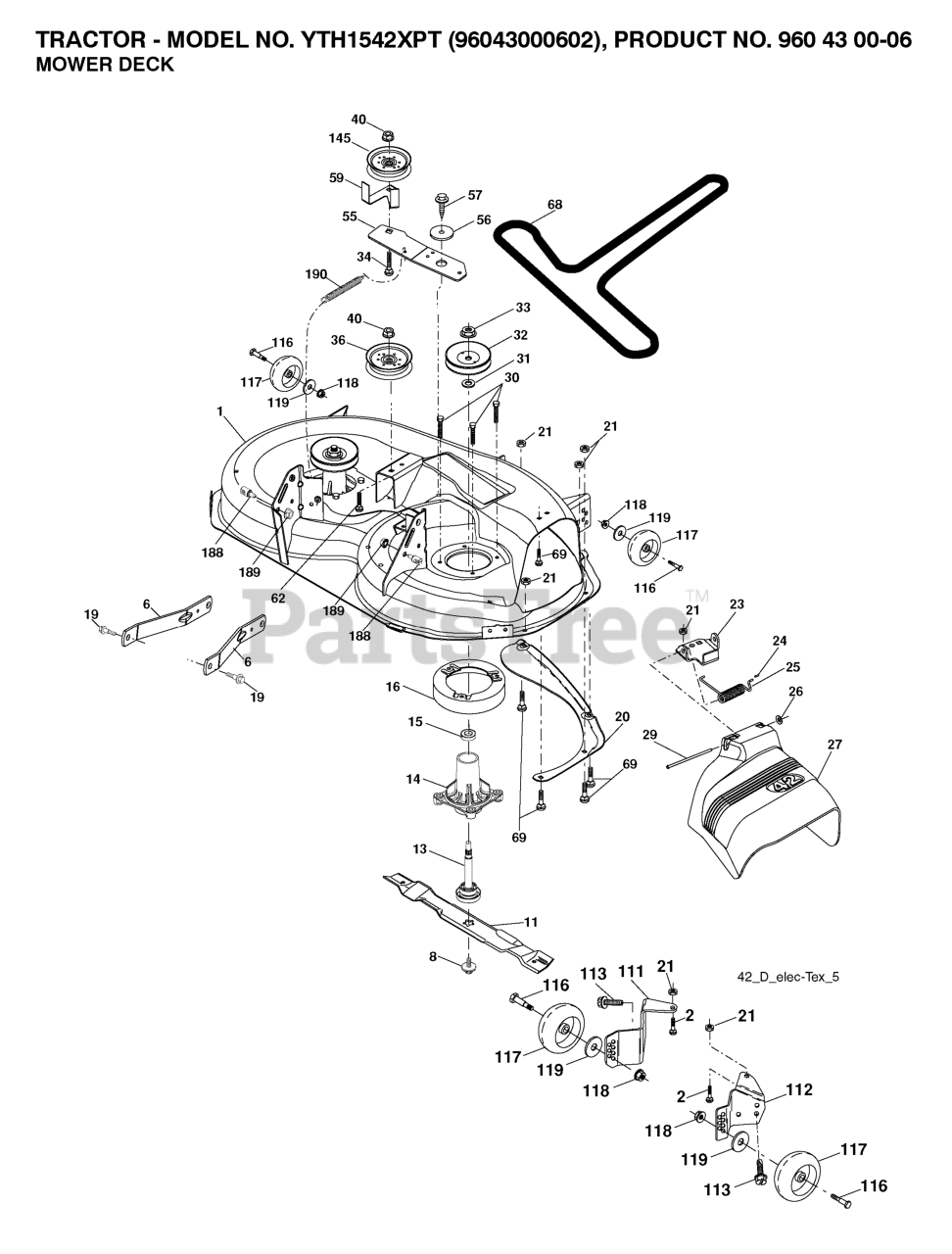

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

190

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$11.99

$

Usually ships in 3-10 days

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532402999

DECK.WELDMENT.42"PAINT
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0

116

Husqvarna 532004898

BOLT.SHLD."A"2.41."B"1.66

$

$

Not available

15

$13.99

$

In Stock, Qty 11

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 20+

0

56

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

- -

Husqvarna 532139775

BLADE.42"MULCH.PREMIUM
(Superseded to 594893101)

$

$

Not available

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

32

Husqvarna 532173436

PULLEY MANDREL

$17.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

112

Husqvarna 532179293

BRACKET, WHEEL
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

55

$

$

Not available

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 532159770

BAFFLE.VORTEX

$

$

Not available

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 532177968

PULLEY.IDLER.FLAT

$31.99

$

In Stock, Qty 9

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

11

Husqvarna 532138971

42" HI-LIFT BLADE

$20.99

$

In Stock, Qty 20+

0

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK

$7.49

$

Usually ships in 3-10 days

0

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 13

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

111

Husqvarna 532179292

BRACKET, WHEEL
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

119

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 8

0

- -

Husqvarna 532134149

BLADE.42".MULCH
(Superseded to 594892701)

$

$

Not available

- -

Husqvarna 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532174882

SPRING EXT ELEC CLUTCH

$26.99

$

In Stock, only 2 left!

0

145

Husqvarna 532173437

PULLEY.IDLER.FLAT.PLATED

$28.99

$

In Stock, only 3 left!

0

- -

Husqvarna 532401228

DECK ASM SVC 42" 4GWB GREY
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

68

Husqvarna 532144959

BELT V SECONDARY

$43.99

$

In Stock, Qty 20+

0

27

Husqvarna 532403004

SHIELD.DEFLECTOR.MOWER.42"BLAC

$44.99

$

Usually ships in 3-10 days

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 2 left!

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$3.99

$

Usually ships in 3-10 days

0

118

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

117

Husqvarna 532188606

WHEEL.GAGE.HALF.SPOKED
(Superseded to 589527401)

$11.99

$

In Stock, Qty 8

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

113

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0
