YTH 1542 XP (954567253) - Husqvarna 42" Yard Tractor (2001-11) MOWER DECK / CUTTING DECK Parts Diagram

42" Yard Tractor

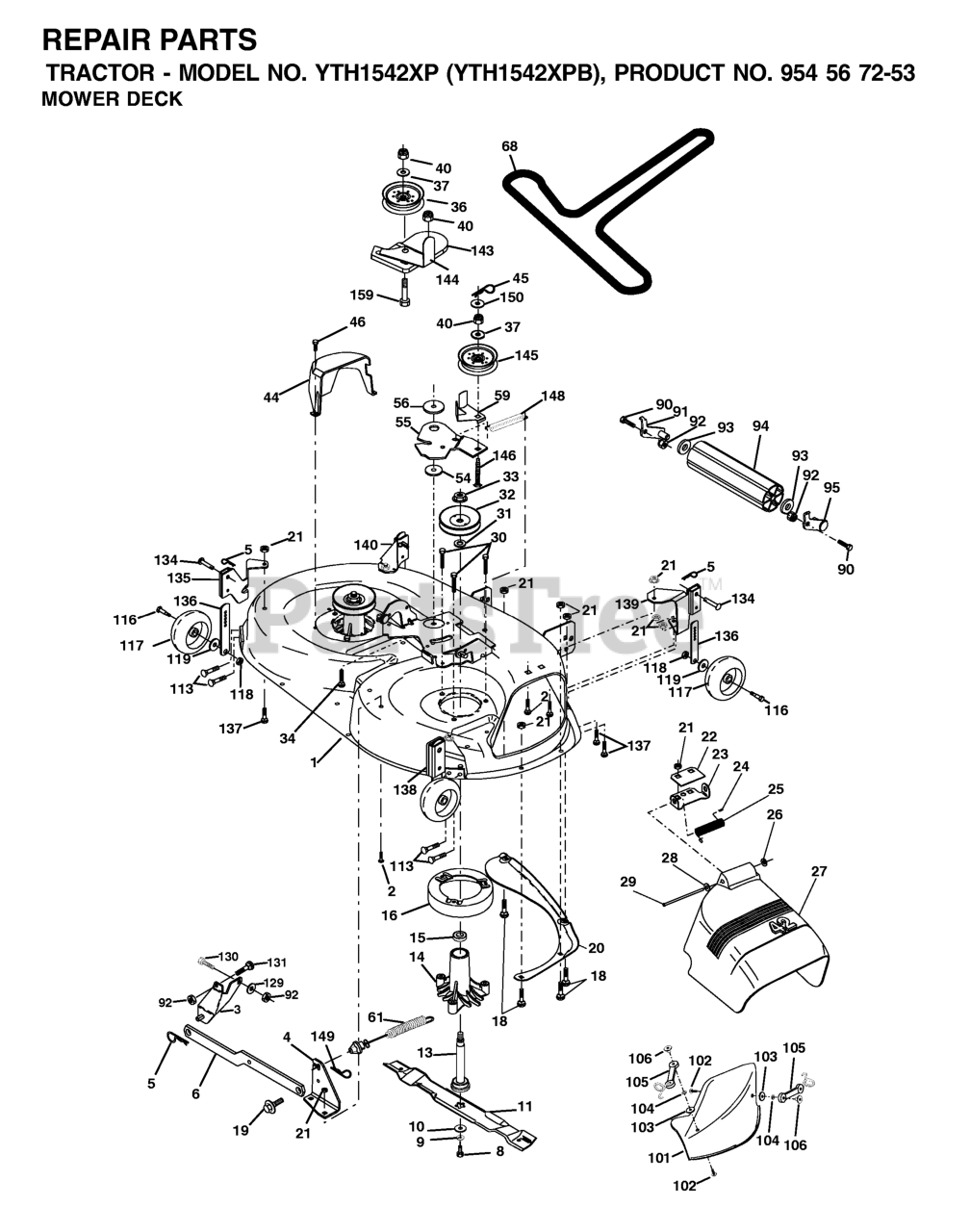

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
40

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532123713

SPRING TORSION

$7.99

$

In Stock, only 1 left!

0

131

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

56

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

95

Husqvarna 532132273

BRACKET RH (B)
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

93

Husqvarna 819171416

Washer 1 17/32 X 7/8 X 16 Ga

$4.99

$

In Stock, Qty 8

0

1

Husqvarna 532165894

DECK, 42"
(Superseded to 583147401)

$433.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

134

Husqvarna 532156941

RIVET.PIN.HEAD.YELLOW.

$

$

Not available

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

129

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532174882

SPRING EXT ELEC CLUTCH

$26.99

$

In Stock, only 2 left!

0

- -

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

$56.99

$

In Stock, only 2 left!

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

23

Husqvarna 532131267

DEFLECTOR BRACKET
(Superseded to 532177563)

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

139

Husqvarna 532178077

BRACKET ASM, WHEEL
(Superseded to 532159767)

$21.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

90

Husqvarna 874760516

BOLT RB
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532138498

Blade Mower 42" High Perf.
(Superseded to 532138971)

$20.99

$

In Stock, Qty 20+

0

106

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

144

Husqvarna 532173441

KEEPER BELT 42" CLUTCH

$9.99

$

In Stock, only 1 left!

0

68

Husqvarna 532174883

V-BELT PRIMARY 42"

$45.99

$

In Stock, only 1 left!

0

22

Husqvarna 532134753

STIFFENER BRACKET
(Superseded to 532177563)

$

$

Not available

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

113

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532132274

BRACKET LH (A)
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

102

Husqvarna 871081010

SCREW
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532171859

SHIELD DEFLECTOR
(Superseded to 532130968)

$39.99

$

In Stock, Qty 9

0

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 532165460

BRACKET SWAY BAR 42" DECK

$13.99

$

In Stock, only 1 left!

0

3

Husqvarna 532138017

BRKT ASM SWAY BAR

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532178024

BAR SWAY DECK

$8.99

$

In Stock, only 4 left!

0

103

$4.99

$

Usually ships in 3-10 days

0

101

Husqvarna 532136420

COVER MULCH 42"

$29.99

$

In Stock, only 2 left!

0

135

Husqvarna 532178074

BRACKET ASM, WHEEL
(Superseded to 532159765)

$15.99

$

Usually ships in 3-10 days

0

532 13 41-49

Husqvarna 532134149

BLADE.42".MULCH
(Superseded to 594892701)

$

$

Not available

44

Husqvarna 532140088

GUARD MANDREL LH BLACK

$34.99

$

In Stock, Qty 10

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

146

Husqvarna 532171977

BOLT, CARRIAGE IDLER BLACK
(Superseded to 532173443)

$7.49

$

In Stock, Qty 6

0

104

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 11

0

148

Husqvarna 532169022

IDLER RETURN SPRING

$5.99

$

In Stock, Qty 5

0

15

$13.99

$

In Stock, Qty 11

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

32

Husqvarna 532173436

PULLEY MANDREL

$17.99

$

In Stock, Qty 20+

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$34.99

$

Usually ships in 3-10 days

0

145

Husqvarna 532173437

PULLEY.IDLER.FLAT.PLATED

$28.99

$

In Stock, only 3 left!

0

20

Husqvarna 532159770

BAFFLE.VORTEX

$

$

Not available

33

Husqvarna 532178342

NUT, FLG TOPLOCK 9/16"
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK

$7.49

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

117

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 10

0

149

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

Usually ships in 3-10 days

0

136

Husqvarna 532155986

BAR.ADJUST.WHEEL.ANTI.SCALP.BL

$20.99

$

In Stock, Qty 10

0

92

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532173438

PULLEY.IDLER.FLAT
(Superseded to 597025001)

$26.99

$

In Stock, Qty 5

0

150

$

$

Not available

105

532160793

LATCH ASSY

$

$

Not available

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

138

Husqvarna 532178075

BRACKET.ASM.WHL.GA.R.RH.42".GR
(Superseded to 532437046)

$18.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

140

Husqvarna 532178076

BRACKET ASM, WHEEL
(Superseded to 532159768)

$24.99

$

Usually ships in 3-10 days

0

137

Husqvarna 872110505

BOLT.CARR.5/16-18X5/8.SHORT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

54

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

116

Husqvarna 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

143

Husqvarna 532157109

BRACKET, ARM IDLER

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

59

Husqvarna 532173442

GUARD TUV IDLER
(Superseded to 532141043)

$5.99

$

In Stock, only 2 left!

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532132264

NOSE ROLLER

$44.99

$

In Stock, Qty 20+

0

55

Husqvarna 532155046

ARM IDLER 42" MOWER LT/YT
(Superseded to 531166601)

$17.99

$

In Stock, only 3 left!

0
