YTH 1542 XP (954567253-G) - Husqvarna 42" Yard Tractor (2003-03) Engine Parts Diagram

42" Yard Tractor

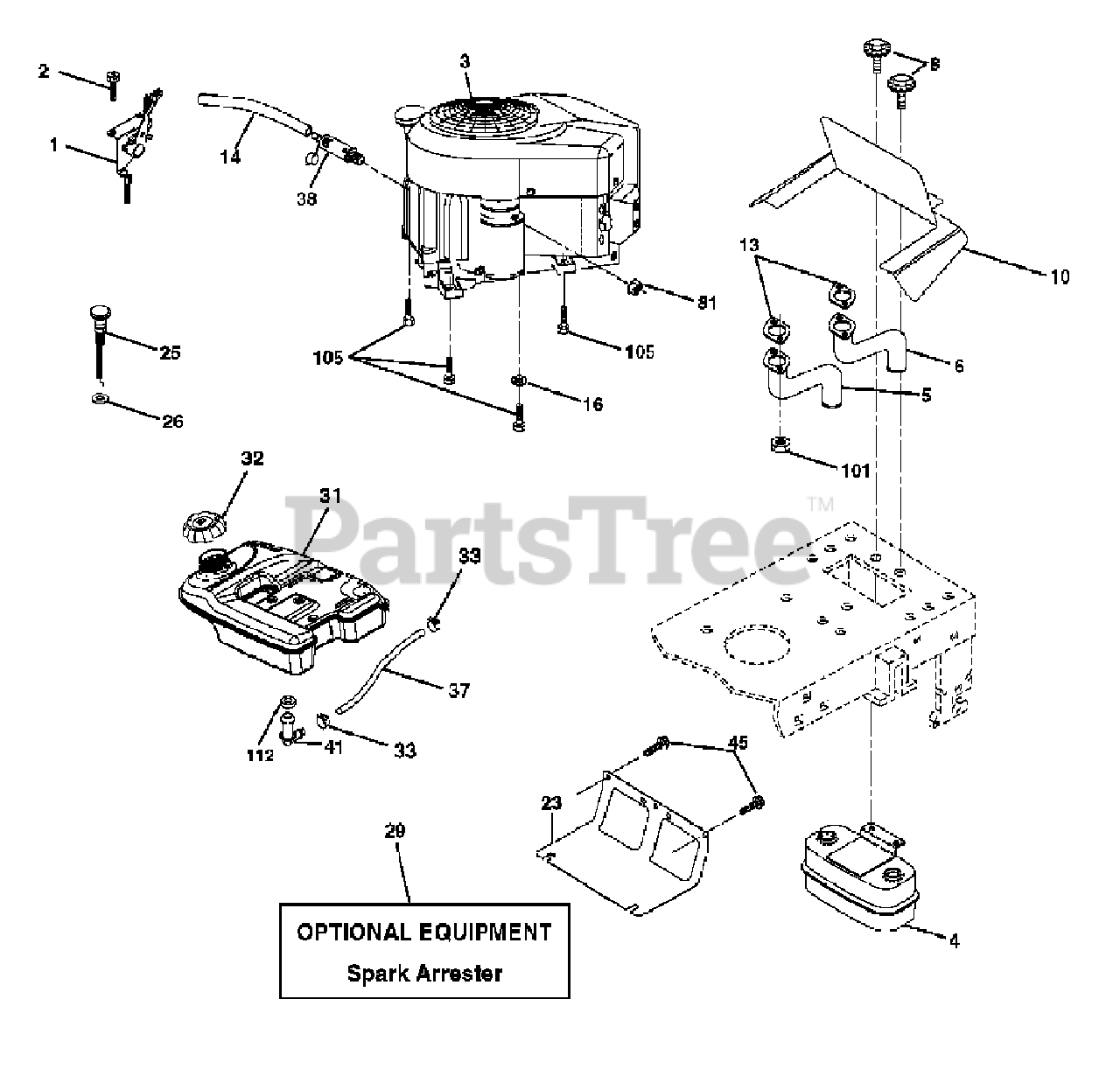

Engine Parts Diagram

  • Title
1

Husqvarna 532170803

Control Throt Flg

$30.99

$

In Stock, only 1 left!

0

2

Husqvarna 817720408

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

3

Engine KAWA FH430V

Note: (Order Parts from Engine Manufacturer)

$

$

Not available

4

Husqvarna 532149723

Muffler Asm Twin Lo-Tone

$74.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532181444

Exhaust Tube Lh

$51.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532181442

Exhaust Tube Rh

$72.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532171877

Bolt 5/16-18unc x 3/4 W/Sems

$7.49

$

In Stock, Qty 5

0

10

Husqvarna 532146629

Shield Browning
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

13

Gasket Muffler

Note: (Order Parts from Engine Manufacturer)

$

$

Not available

14

Tube Drain Oil Easy

Note: (Order Parts from Engine Manufacturer)

$

$

Not available

16

Husqvarna 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

23

Husqvarna 532169837

Shield Browning

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532132782

Choke Control
(Superseded to 532132781)

$

$

Not available

26

Husqvarna 873920600

Nut, Keps 3/8-24 Unf

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Kit Spark Arrestor (Flat Scrn)

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532179022

Tank Fuel 4.0 Rear

$

$

Not available

32

Husqvarna 532181803

Cap Asm Fuel Gauge
(Superseded to 532179124)

$37.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Clamp Hose Blk

$7.49

$

In Stock, only 1 left!

0

37

Husqvarna 532142158

Line Fuel
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

38

Plug Drain Oil

Note: (Order Parts from Engine Manufacturer)

$

$

Not available

41

Husqvarna 532139277

Stem Tank Fuel

$8.99

$

In Stock, Qty 7

0

45

Husqvarna 817000612

Screw Hexwsh Thdr 3/8-16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

81

Husqvarna 873510400

Nut Keps Hex 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

101

Husqvarna 532163305

Nut Flange M8-1.25
(Superseded to 873030800)

$

$

Not available

105

Husqvarna 817120616

Screw 3/8-16 x 1

$5.99

$

In Stock, Qty 17

0

112

Husqvarna 532124952

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0
