YTH 1542 XP (954567253-E) - Husqvarna 42" Yard Tractor (2002-02) Mower Deck Parts Diagram

42" Yard Tractor

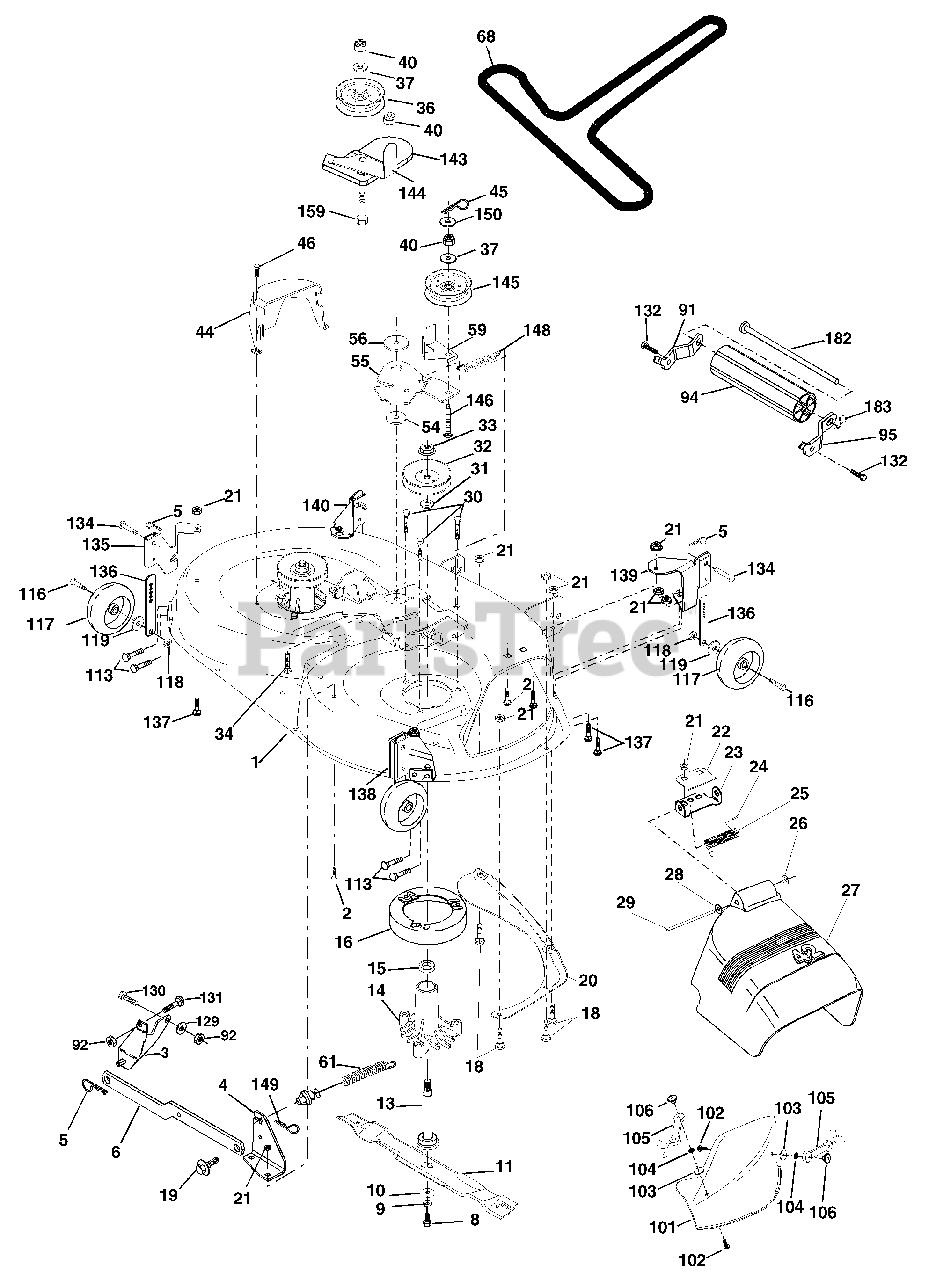

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532165894

Mower Deck Assembly, 42"
(Superseded to 583147401)

$433.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

Bolt
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

Bracket Assembly, Sway Bar, Front

$12.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532165460

Bracket Sway Bar 42" Deck

$13.99

$

In Stock, only 1 left!

0

5

Husqvarna 532124670

Retainer Spring

$

$

Not available

6

Husqvarna 532178024

Bar Sway Deck

$8.99

$

In Stock, only 4 left!

0

8

Husqvarna 532850857

Bolt, Hex 3/8-24 x 1.25 Gr. 8

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 810030600

Washer, Lock
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

Washer, Hardened

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 532138498

Blade Mower 42" High Perf.
(Superseded to 532138971)

$20.99

$

In Stock, Qty 20+

0

11

Husqvarna 532134149

Blade, Mulching
(Superseded to 594892701)

$

$

Not available

13

Husqvarna 532137645

Shaft Assembly, Mandrel, Vented
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Husqvarna 532128774

Housing, Mandrel, Vented

$34.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

Bearing, Ball, Mandrel

$13.99

$

In Stock, Qty 14

0

16

Husqvarna 532174493

Stripper

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 872140505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

Bolt, Shoulder

$

$

Not available

20

Husqvarna 532159770

Baffle, Vortex

$

$

Not available

21

Husqvarna 873680500

Nut Crownlock 5/16-18 UNC
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532134753

Stiffener Bracket
(Superseded to 532177563)

$

$

Not available

23

Husqvarna 532131267

Bracket, Deflector
(Superseded to 532177563)

$

$

Not available

24

Husqvarna 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532123713

Spring, Torsion, Deflector

$7.99

$

In Stock, only 1 left!

0

26

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532171859

Shield, Deflector
(Superseded to 532130968)

$39.99

$

In Stock, Qty 9

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

Screw Thdrol Hex
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532129963

Washer, Spacer
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

32

Husqvarna 532173436

Pulley, Mandrel

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532178342

Nut, Toplock, Flanged
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

34

Husqvarna 87211064

Bolt

$

$

Currently unavailable

36

Husqvarna 532173438

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

37

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 873680600

Nut Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532140088

Guard, Mandrel, L.H.

$34.99

$

In Stock, Qty 10

0

45

Husqvarna 532124788

Retainer
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

46

Husqvarna 532137729

Screw, Thd. Roll 1/4-20 x 5/8

$4.99

$

In Stock, Qty 19

0

54

Husqvarna 532133943

Washer, Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532155046

Arm, Idler
(Superseded to 531166601)

$17.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532122052

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

59

Husqvarna 532173442

Guard, TUV Idler
(Superseded to 532141043)

$5.99

$

In Stock, only 3 left!

0

61

Husqvarna 532174882

Spring Ext Elect Clutch 42" Dck

$26.99

$

In Stock, only 2 left!

0

68

Husqvarna 532174883

V-Belt

$45.99

$

In Stock, only 1 left!

0

91

Husqvarna 532180532

Bracket Asm Noseroller Lh

$4.99

$

Usually ships in 3-10 days

0

92

Husqvarna 873800500

Nut Lock Hex 5/16-18

$3.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532132264

Roller Nose 38"-50"

$44.99

$

In Stock, Qty 20+

0

95

Husqvarna 532180533

Bracket Asm Noseroller Rh

$6.49

$

Usually ships in 3-10 days

0

101

Husqvarna 532136420

Mulcher Cover

$29.99

$

In Stock, only 3 left!

0

102

Husqvarna 871081010

Screw
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

103

Husqvarna 819061216

Washer #10

$4.99

$

Usually ships in 3-10 days

0

104

Husqvarna 810071000

Washer, Lock

$4.99

$

In Stock, Qty 11

0

105

532160793

Latch Assembly, Bagger

$

$

Not available

106

Husqvarna 532125004

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

113

Husqvarna 817060512

Screw 5/16-18 x 3/4 Tap R
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

116

Husqvarna 532124842

Bolt, Shoulder
(Superseded to 532004898)

$

$

Not available

117

Husqvarna 532165746

Wheel, Gauge

$

$

Not available

118

Husqvarna 873930600

Nut, Centerlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

Washer 3/8 x 7/8 x 14 Gauge
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

129

Husqvarna 819131312

Washer 13/32 x 13/16 x Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

130

Husqvarna 874780616

Bolt Fin Hex 3/8-16unc x 1 Gr.5

$6.49

$

Usually ships in 3-10 days

0

131

Husqvarna 872140608

Bolt Rdhd Sqnk 3/8-16unc x 1
(Superseded to 872110608)

$4.99

$

Usually ships in 3-10 days

0

132

Husqvarna 817060612

Screw 3/8-16 x .75
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

134

Husqvarna 532156941

Pin Head Rivet

$

$

Not available

135

Husqvarna 532178074

Bracket Asm Whl GA R LH
(Superseded to 532159765)

$15.99

$

Usually ships in 3-10 days

0

136

Husqvarna 532155986

Bar Adjusting GA WHL

$20.99

$

In Stock, Qty 10

0

137

Husqvarna 872110505

Bolt Carr 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

138

Husqvarna 532178075

Bracket Asm Whl GA R RH
(Superseded to 532437046)

$18.99

$

Usually ships in 3-10 days

0

139

Husqvarna 532178077

Bracket Asm Whl GA F RH
(Superseded to 532159767)

$21.99

$

Usually ships in 3-10 days

0

140

Husqvarna 532178076

Bracket Asm Whl GA F LH
(Superseded to 532159768)

$24.99

$

Usually ships in 3-10 days

0

143

Husqvarna 532157109

Bracket Arm Idler 42"

$6.49

$

Usually ships in 3-10 days

0

144

Husqvarna 532173441

Keeper Belt 42" Clutch Cable

$9.99

$

In Stock, only 1 left!

0

145

Husqvarna 532173437

Pulley Idler Flat

$28.99

$

In Stock, only 3 left!

0

146

Husqvarna 532171977

Bolt Carriage Idler
(Superseded to 532173443)

$7.49

$

In Stock, Qty 6

0

148

Husqvarna 532169022

Spring Return Idler

$5.99

$

In Stock, Qty 7

0

149

Husqvarna 532165898

Retainer Spring Yellow Zinc

$7.49

$

Usually ships in 3-10 days

0

150

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga.

$

$

Not available

159

Husqvarna 872140614

Bolt Rdhd Sqn 3/8-16 UNC x 1- 3/4

$4.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532179126

Rod Roller Nose

$

$

Not available

183

Husqvarna 532163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 532130794

Mandrel Assembly

Note: (Includes Housing, Shaft and Shaft Hardware Only - Pulley Not Included)

$56.99

$

In Stock, Qty 5

0

Husqvarna 532176050

Replacement Mower, Complete

$728.99

$

Usually ships in 3-10 days

0
