YTH 1542 XP (954567253-A) - Husqvarna 42" Yard Tractor (2001-01) Engine Parts Diagram

42" Yard Tractor

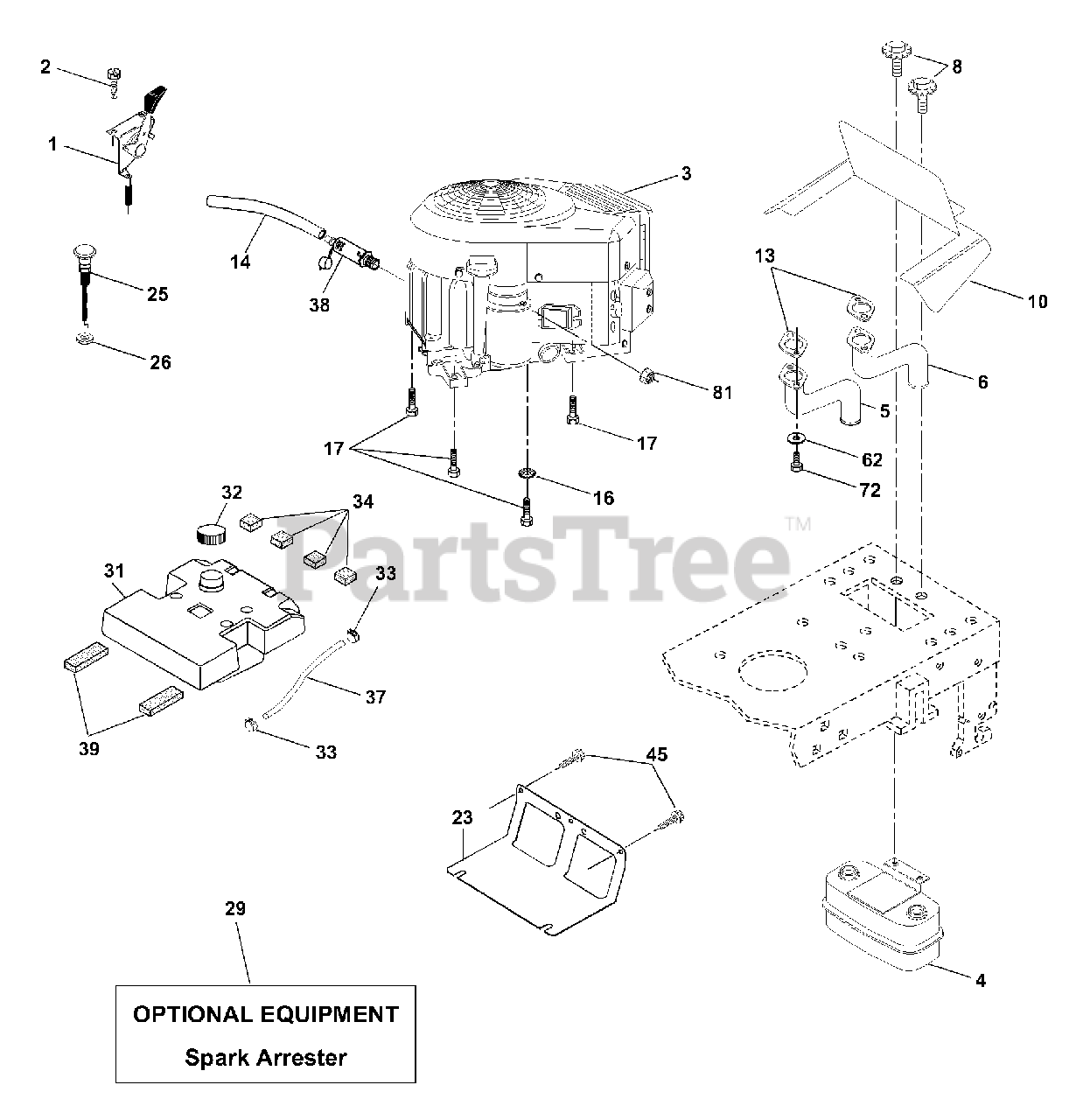

Engine Parts Diagram

  • Title

1

Husqvarna 532170863

Control Th/ch Flag

$

$

Not available

2

Husqvarna 817720410

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

3

Engine Kawa

Note: Model FH45IV; (Order parts from engine manufacturer)

$

$

Not available

4

Husqvarna 532149723

Muffler

$74.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532176068

Exhaust Tube LH

$113.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532176067

Exhaust Tube RH

$113.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532171877

Bolt 5/16-18 x 3/4

$7.49

$

In Stock, Qty 5

0

10

Husqvarna 532146629

Shield Heat Muffler
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532178084

Gasket
(Superseded to 532178591)

$

$

Not available

14

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, only 4 left!

0

16

Husqvarna 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

17

UNKNOWN

$

$

Not available

23

Husqvarna 532169837

Shield BRN/DBR Guard

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532145996

Control Choke

$

$

Not available

26

Husqvarna 873920600

Nut Keps 3/8-24

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Kit Spark Arrestor (Flat Scrn)

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532157103

Tank Fuel

$

$

Not available

32

Husqvarna 532140527

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Clamp Hose Black

$7.49

$

In Stock, only 4 left!

0

34

Husqvarna 532106082

Pad Spacer 1 x 1 x 1

$

$

Not available

37

Husqvarna 532142158

Line Fuel
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

38

Husqvarna 532148315

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

39

Husqvarna 532109227

Pad Idler 1.75 x .75 x .06

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532124028

Bushing Snap Nyl Black Fuel Line

$5.99

$

In Stock, only 3 left!

0

41

Husqvarna 532139277

Stem Tank

$8.99

$

In Stock, Qty 8

0

45

Husqvarna 817000612

Screw Hex Wsh Thdrol 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

62

UNKNOWN

$

$

Not available

72

Husqvarna 871070512

Screw Hex Hd Cap 5/16-18 x 3/4
(Superseded to 532192334)

$

$

Not available

78

Husqvarna 817060620

Screw 3/8-16 x 1-1/4

$7.49

$

In Stock, Qty 11

0

81

Husqvarna 532163305

Nut Flange M-8-1.25
(Superseded to 873030800)

$

$

Not available

105

Husqvarna 817120616

Screw 3/8-16 x 1

$5.99

$

In Stock, Qty 19

0
