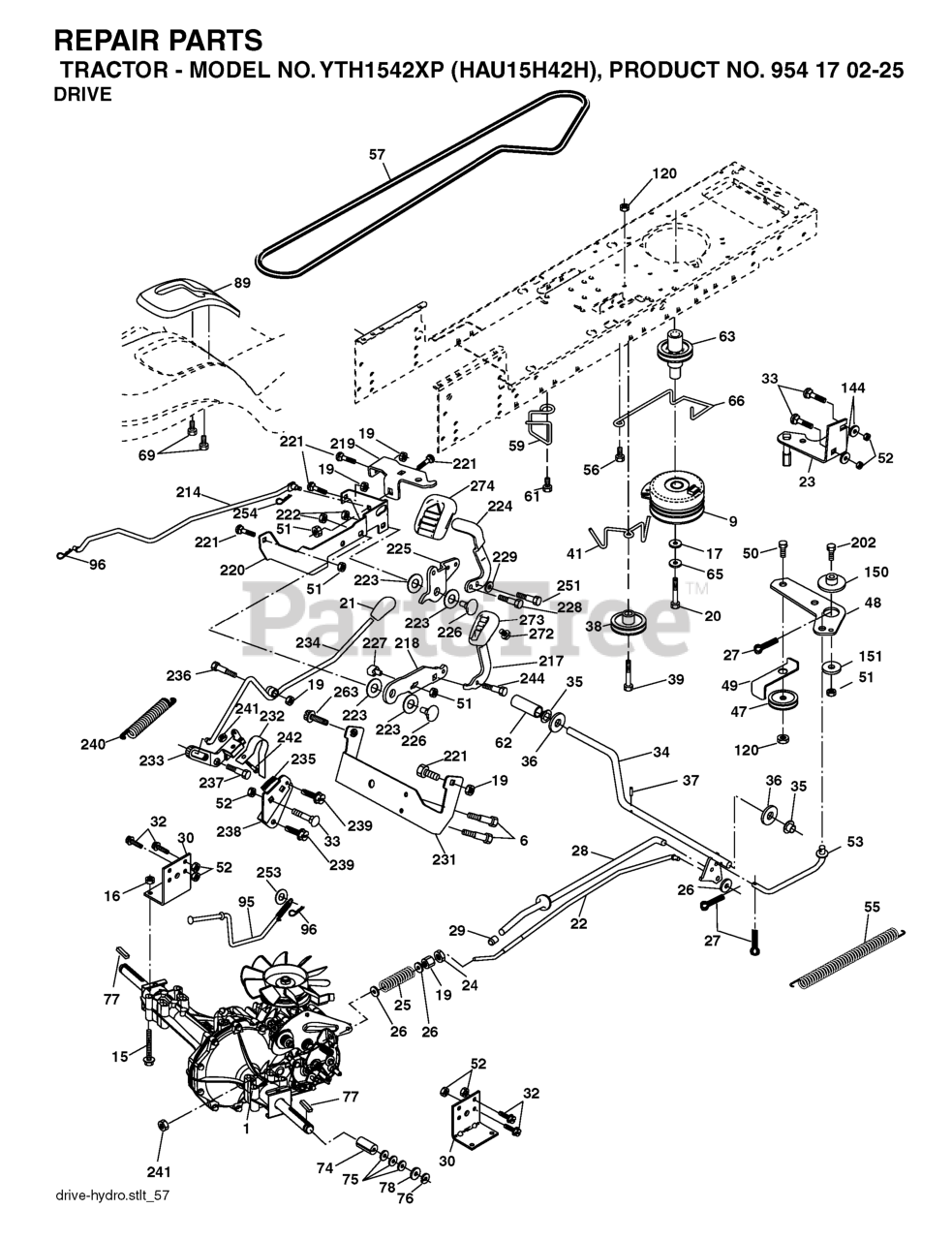

YTH 1542 XP (954170225-H) - Husqvarna 42" Yard Tractor (2004-09) DRIVE Parts Diagram

42" Yard Tractor

DRIVE Parts Diagram

  • Title
47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

226

Husqvarna 532174902

BOLT PIVOT SPACER

$

$

Not available

240

Husqvarna 532175610

SPRING RETURN CRUISE CONTROL

$7.99

$

Usually ships in 3-10 days

0

274

Husqvarna 532175646

COVER PEDAL FORWARD

$9.99

$

Usually ships in 3-10 days

0

51

$3.99

$

Usually ships in 3-10 days

0

218

Husqvarna 532174713

ARM CONTROL PEDAL REVERSE

$

$

Not available

20

Husqvarna 532150280

BOLT HEX
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

95

Husqvarna 532180825

ROD BYPASS

$

$

Not available

$3.49

$

Usually ships in 3-10 days

0

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

150

Husqvarna 532175456

SPACER, RETAINER

$

$

Not available

263

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

214

Husqvarna 532174735

LINK TRANSAXLE

$48.99

$

Usually ships in 3-10 days

0

120

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

$4.99

$

In Stock, Qty 9

0

251

Husqvarna 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

232

Husqvarna 532175570

ACUATOR CRUISE DISENGAGE

$

$

Not available

30

Husqvarna 532169592

BRKT, TRNSXLE MNT 20"

$6.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532169691

KEEPER, BELT CENTER

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

144

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532160889

ELECTRIC CLUTCH

$284.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532181454

NEEDS DESCRIPTION

$

$

Not available

61

Husqvarna 817120614

SCREW 3/8-16X.875
(Superseded to 817490614)

$

$

Not available

239

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532179032

BOLT SHOULDER
(Superseded to 532171873)

$5.99

$

Usually ships in 3-10 days

0

219

Husqvarna 532174839

BRACKET FREST PDL

$9.99

$

Usually ships in 3-10 days

0

225

Husqvarna 532174712

ARM CONTROL PEDAL FORWARD

$

$

Not available

50

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

233

Husqvarna 532174856

PAWL CONTROL CRUISE

$

$

Not available

234

Husqvarna 532174858

LEVER CONTROL CRUISE

$17.99

$

Usually ships in 3-10 days

0

254

Husqvarna 532178062

CLIP RETAINER

$4.99

$

In Stock, only 1 left!

0

55

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

In Stock, only 1 left!

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

62

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

273

Husqvarna 532179610

NEEDS DESCRIPTION

$

$

Not available

34

Husqvarna 532175578

SHAFT, FOOT PEDAL

$31.99

$

Usually ships in 3-10 days

0

231

Husqvarna 532174573

STRAP TORQUE
(Superseded to 583279501)

$9.49

$

Usually ships in 3-10 days

0

222

Husqvarna 873680700

Nut, Crownlock Hex 7/16-14 unc

$2.99

$

Usually ships in 3-10 days

0

32

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

$6.99

$

In Stock, only 2 left!

0

29

Husqvarna 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

56

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

241

Husqvarna 873930400

NUT CENTERLOCK
(Superseded to 873690400)

$4.99

$

In Stock, Qty 18

0

238

Husqvarna 532175807

ARM MTG.CRUISE SECTOR

$

$

Not available

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532140294

DRIVE BELT, LTH & YTH TRACTORS

$39.99

$

In Stock, only 3 left!

0

223

Husqvarna 532174840

WASHER NYLON

$

$

Not available

235

Husqvarna 532174857

SECTOR CONTROL CRUISE

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532175556

KEEPER, BELT IDLER

$9.99

$

In Stock, only 1 left!

0

74

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

63

Husqvarna 532175414

PULLEY, ENGINE

$80.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532179114

PULLEY IDLER COMPOSITE

$31.99

$

Usually ships in 3-10 days

0

272

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

66

Husqvarna 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

242

Husqvarna 874780412

BOLT
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

227

Husqvarna 532174710

CAM REVERSE PEDAL LT

$7.49

$

In Stock, only 1 left!

0

49

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

36

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532175896

ROD.BRAKE.HG-0510.PEDAL.CONTRL

$21.99

$

Usually ships in 3-10 days

0

6

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 14

0

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$8.99

$

Usually ships in 3-10 days

0

237

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 7

0

244

Husqvarna 817490510

CAPSCREW.HXHD.FLG.5/16-18X.625

$4.99

$

Usually ships in 3-10 days

0

253

$6.49

$

In Stock, only 2 left!

0

76

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532175765

ROD, PARKING BRAKE

$6.49

$

Usually ships in 3-10 days

0

229

Husqvarna 532176451

WASHER.SERRATED.5/16X.75

$4.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

224

Husqvarna 532174736

PEDAL FORWARD

$79.99

$

Usually ships in 3-10 days

0

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

220

Husqvarna 532174711

BRACKET MTG.PDL CONTROL

$14.99

$

Usually ships in 3-10 days

0

221

Husqvarna 872140606

Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4

$

$

Not available

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

217

Husqvarna 532179433

PEDAL REVERSE

$

$

Not available

23

$12.99

$

In Stock, only 1 left!

0

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

89

Husqvarna 532191915

NEEDS DESCRIPTION

$

$

Currently unavailable
