YTH 1542 (954567048) - Husqvarna 42" Yard Tractor (2001-12) 42INCH CUTTING DECK Parts Diagram

42" Yard Tractor

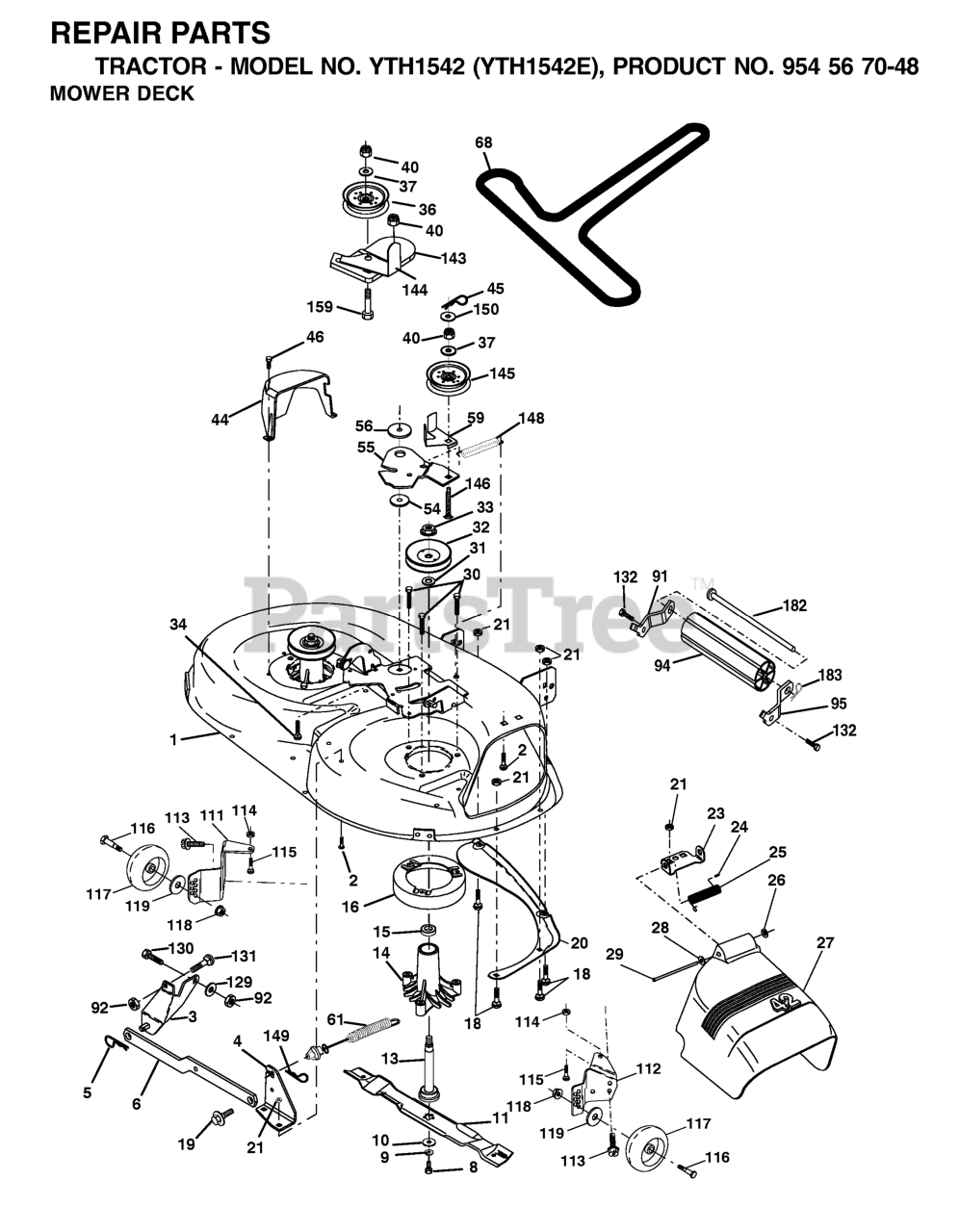

42INCH CUTTING DECK Parts Diagram

  • Title

143

Husqvarna 532157109

BRACKET, ARM IDLER

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

113

Husqvarna 817060510

Screw Tapping 3/8-16 x .625

$

$

Not available

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

$62.99

$

In Stock, Qty 20+

0

146

Husqvarna 532171977

BOLT, CARRIAGE IDLER BLACK
(Superseded to 532173443)

$7.49

$

In Stock, only 2 left!

0

145

Husqvarna 532173437

PULLEY.IDLER.FLAT.PLATED

$28.99

$

In Stock, Qty 20+

0

20

Husqvarna 532159770

BAFFLE.VORTEX

$

$

Not available

54

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

In Stock, Qty 20+

0

144

Husqvarna 532173441

KEEPER BELT 42" CLUTCH

$9.99

$

In Stock, Qty 11

0

22

Husqvarna 532134753

STIFFENER BRACKET
(Superseded to 532177563)

$

$

Not available

115

Husqvarna 872110505

BOLT.CARR.5/16-18X5/8.SHORT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532178024

BAR SWAY DECK

$8.99

$

In Stock, only 4 left!

0

116

Husqvarna 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

159

Husqvarna 872140614

BOLT

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

91

Husqvarna 532180532

BRACKET ASM NOSEROLLER LH

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

95

Husqvarna 532180533

BRACKET ASM NOSEROLLER RH

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532165892

42" DECK KIT
(Superseded to 532176027)

$399.99

$

Usually ships in 3-10 days

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532173438

PULLEY.IDLER.FLAT
(Superseded to 597025001)

$28.99

$

In Stock, Qty 20+

0

44

Husqvarna 532140088

GUARD MANDREL LH BLACK

$37.99

$

In Stock, Qty 6

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

112

Husqvarna 532181393

BRACKET WHEEL GUAGE KIT
(Superseded to 532181040)

$37.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532178342

NUT, FLG TOPLOCK 9/16"
(Superseded to 596134801)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, Qty 20+

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, Qty 20+

0

183

Husqvarna 532163552

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

111

Husqvarna 532181392

GUAGE WHEEL BRACKET LH
(Superseded to 532181040)

$37.99

$

Usually ships in 3-10 days

0

40

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532131267

DEFLECTOR BRACKET
(Superseded to 532177563)

$

$

Not available

27

Husqvarna 532171859

SHIELD DEFLECTOR
(Superseded to 532130968)

$43.99

$

In Stock, Qty 20+

0

150

Husqvarna 819091216

WASHER PM

$

$

Not available

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$34.99

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

BRKT ASM SWAY BAR

$12.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532173442

GUARD TUV IDLER
(Superseded to 532141043)

$5.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, Qty 20+

0

56

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, Qty 12

0

Husqvarna 532176789

DECK ASM. 42"
(Superseded to 532176207)

$789.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532123713

SPRING TORSION

$7.99

$

In Stock, Qty 20+

0

4

Husqvarna 532165460

BRACKET SWAY BAR 42" DECK

$13.99

$

Usually ships in 3-10 days

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

68

Husqvarna 532174883

V-BELT PRIMARY 42"

$51.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 20+

0

182

Husqvarna 532179126

ROD ROLLER NOSE STANDARD

$

$

Not available

149

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

In Stock, Qty 10

0

117

Husqvarna 532165746

WHEEL.GAUGE.STANDARD

$

$

Not available

94

Husqvarna 532132264

NOSE ROLLER

$44.99

$

In Stock, Qty 20+

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

148

Husqvarna 532169022

IDLER RETURN SPRING

$5.99

$

In Stock, Qty 20+

0

114

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$6.99

$

In Stock, Qty 20+

0

61

Husqvarna 532174882

SPRING EXT ELEC CLUTCH

$26.99

$

In Stock, Qty 10

0

34

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532138498

Blade Mower 42" High Perf.
(Superseded to 532138971)

$20.99

$

In Stock, Qty 20+

0

15

Husqvarna 532110485

BEARING

$14.99

$

In Stock, Qty 20+

0

32

Husqvarna 532173436

PULLEY MANDREL

$20.99

$

In Stock, Qty 20+

0

55

Husqvarna 532155046

ARM IDLER 42" MOWER LT/YT
(Superseded to 531166601)

$20.99

$

In Stock, Qty 20+

0
