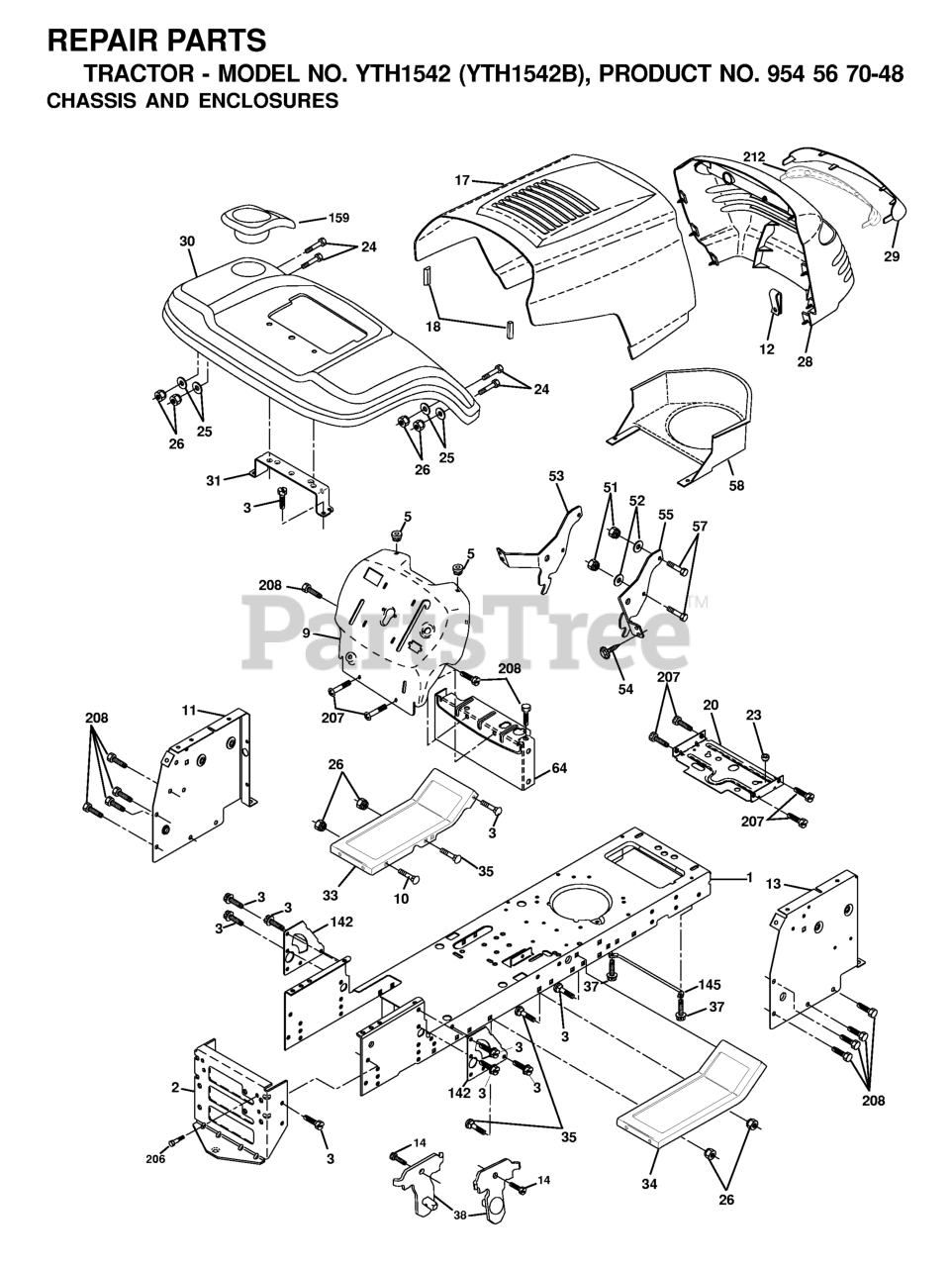

YTH 1542 (954567048) - Husqvarna 42" Yard Tractor (2001-01) CHASSIS & ENCLOSURES Parts Diagram

42" Yard Tractor

CHASSIS & ENCLOSURES Parts Diagram

  • Title
23

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$5.99

$

In Stock, only 3 left!

0

29

Husqvarna 532176645

LENS
(Superseded to 532146654)

$

$

Not available

206

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, only 3 left!

0

207

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

142

Husqvarna 532165867

PLATE
(Superseded to 532175702)

$9.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532161464

SCREW.HEX.WS.HD.8-18 X 7/8

$

$

Not available

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532172106

PANEL ASM, DASH RH

$18.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532155927

PANEL DASH LH
(Superseded to 532174996)

$

$

Not available

212

Husqvarna 532156229

REPL BY 532 1745-03
(Superseded to 532174503)

$26.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532150127

AIR DUCT P/L/LT

$

$

Not available

57

Husqvarna 874780412

BOLT
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532162237

HOOD ASM.
(Superseded to 532159639)

$61.99

$

In Stock, only 2 left!

0

53

Husqvarna 532144697

BRACKET.GRILLE.LH

$

$

Not available

37

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532156437

PLATE MTG
(Superseded to 532180679)

$11.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

55

$

$

Not available

33

Husqvarna 532147203

FOOT REST LH

$

$

Not available

25

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

$3.49

$

In Stock, only 1 left!

0

2

Husqvarna 532176554

DRAWBAR, 12GA

$43.99

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

34

Husqvarna 532147202

FOOTREST RH
(Superseded to 532145243)

$

$

Not available

31

Husqvarna 532136619

BRACKET FENDER

$

$

Not available

51

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532171682

DASH SLKSCR
(Superseded to 532168346)

$

$

Not available

18

Husqvarna 532126938

BUMPER HOOD T

$

$

Not available

14

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532170475

GRILLE ASM
(Superseded to 532179845)

$

$

Not available

1

Husqvarna 532174619

CHASSIS STAMPING
(Superseded to 579841401)

$433.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532154798

DASH LOWER

$20.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532169834

BRACKET
(Superseded to 532175710)

$11.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0
