YTH 1542 (954567048-C) - Husqvarna 42" Yard Tractor (2001-04) Engine Parts Diagram

42" Yard Tractor

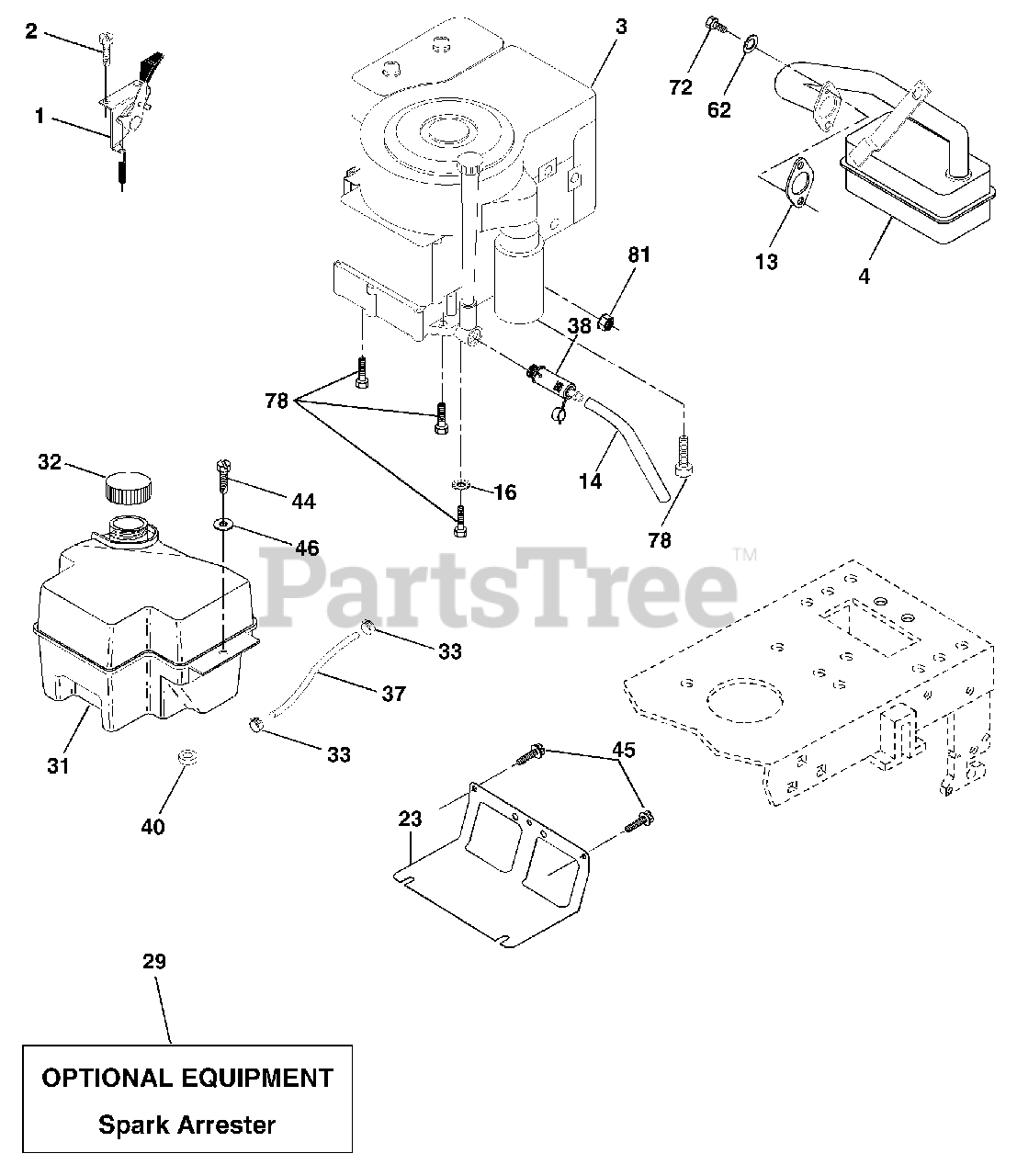

Engine Parts Diagram

  • Title
1

Husqvarna 532170551

Control Th/ch Flag Dom.

$37.99

$

Usually ships in 3-10 days

0

2

Husqvarna 817720410

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 874780410)

$3.99

$

In Stock, only 3 left!

0

3

Engine B&S Model 311777

Note: (Order parts from engine manufacturer)

$

$

Not available

$45.99

$

In Stock, only 3 left!

0

13

Husqvarna 532165291

Gasket
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, Qty 5

0

16

Husqvarna 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532169837

Shield BRN/DBR Guard

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Kit Spark Arrestor (Flat Scrn)

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532174642

Tank Fuel
(Superseded to 532180645)

$

$

Not available

32

Husqvarna 532140527

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Clamp Hose Black

$7.49

$

In Stock, only 4 left!

0

37

Husqvarna 532137040

Line Fuel
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

38

Husqvarna 532148315

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

40

Husqvarna 532124028

Bushing Snap Nyl Black Fuel Line

$5.99

$

In Stock, only 3 left!

0

44

Husqvarna 817670412

Screw Hex Wsh Thdrol 1/4-20 x 3/4

$6.49

$

In Stock, only 2 left!

0

45

Husqvarna 817000612

Screw Hex Wsh Thdrol 3/8-16 x 3/4

$4.99

$

In Stock, only 4 left!

0

46

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 810040500

Washer Lock Hvy Hlcl Spr. 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

72

Husqvarna 871070512

Screw Hex Hd Cap 5/16-18 x 3/4
(Superseded to 532192334)

$

$

Not available

78

Husqvarna 817060620

Screw 3/8-16 x 1-1/4

$7.49

$

In Stock, Qty 11

0

81

Husqvarna 873510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0
