YTH 1542 (954567048-B) - Husqvarna 42" Yard Tractor (2001-01) Mower Lift Parts Diagram

42" Yard Tractor

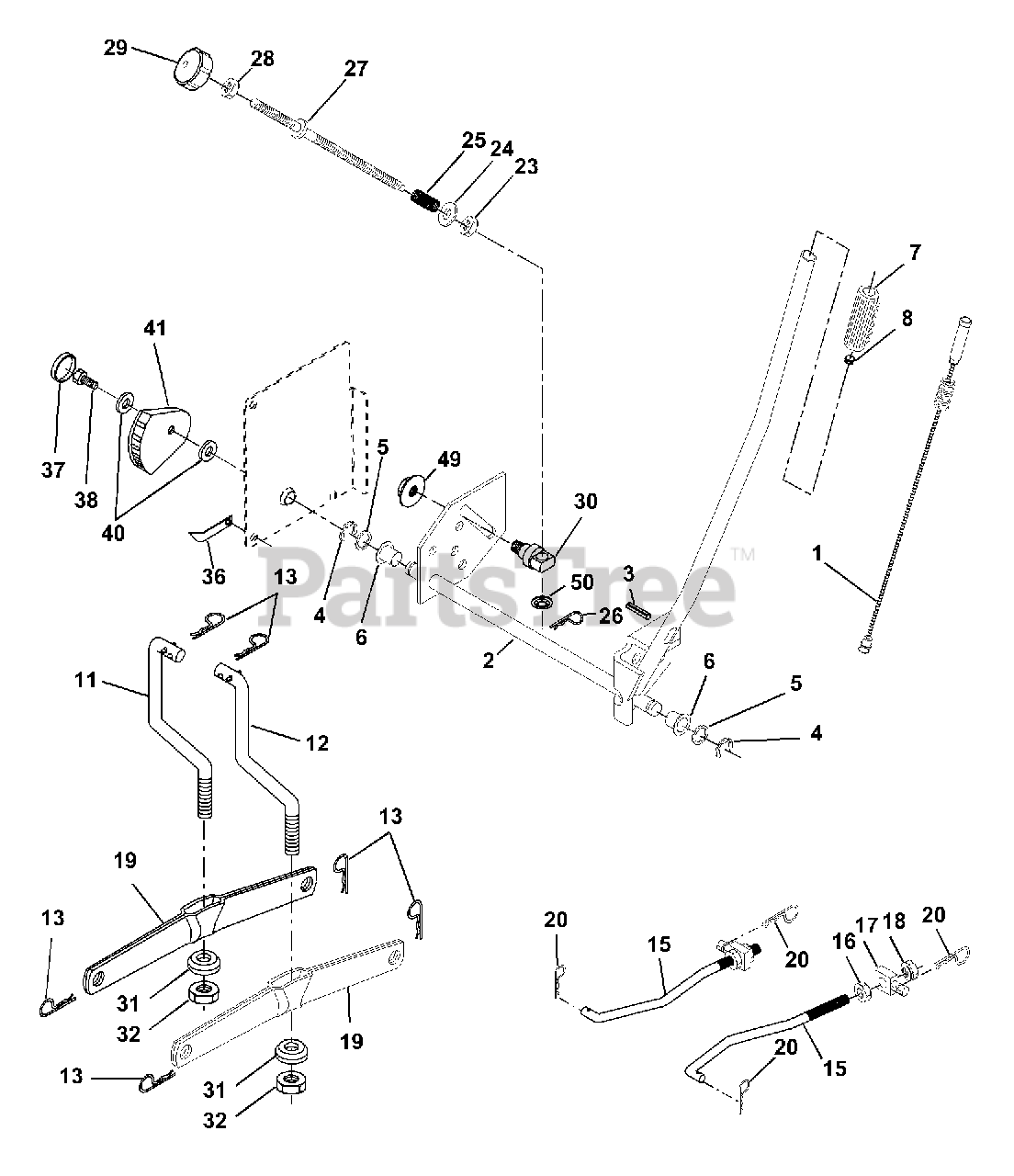

Mower Lift Parts Diagram

  • Title
1

Husqvarna 532159460

Wire Asm Inner W/plunger

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532159471

Shaft Asm Lift RH w/Inf

$54.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532105767

Pin Groove 1 500 Zinc

$6.49

$

In Stock, only 3 left!

0

4

Husqvarna 812000002

E Ring #5133-62

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 819211621

Washer 21/32 X 1 X 21 Ga

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 532120183

Bearing Nylon Blk 629 Id

$6.99

$

In Stock, only 3 left!

0

7

Husqvarna 532125631

Grip Handle Fluted Blk

$7.99

$

In Stock, only 1 left!

0

8

Husqvarna 532124526

Button Plunger Black
(Superseded to 532125925)

$

$

Not available

11

Husqvarna 532139865

Link Lift LH Fixed Length
(Superseded to 532145537)

$26.99

$

In Stock, only 1 left!

0

12

Husqvarna 532139866

Link Lift RH Fixed Length
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Husqvarna 532124670

Retainer Spring

$

$

Not available

15

Husqvarna 532173288

Link Front

$13.99

$

In Stock, only 2 left!

0

16

Husqvarna 873350800

Nut Jam Hex 1/2-13 Unc

$

$

Not available

17

Husqvarna 532130171

Trunnion Blk Zinc
(Superseded to 532175689)

$

$

Not available

18

Husqvarna 873800800

Nut Lock w/Wsh 1/2-13unc
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 532139868

Arm Suspension Rear

$15.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532110807

Nut Special

$

$

Not available

24

Husqvarna 819131016

Washer 13/32 X 5/8 X 16 Ga

$6.49

$

In Stock, Qty 5

0

25

Husqvarna 532124874

Spring 2-1/8"
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532169484

Retainer Clip

$

$

Not available

27

Husqvarna 532126971

Rod Adj Lift Zinc 7.49 Wrk Lg

$

$

Not available

28

Husqvarna 873350600

Nut Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 532138057

Knob Inf 3/8-16 Unc Blk W/sym

$8.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532150233

Trunnion Infin Height

$12.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532169865

Bearing Pvt Lift

$

$

Not available

32

Husqvarna 873540600

Nut Crownlock 3/8 - 24

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532155097

Pointer Height Indicator

$

$

Not available

37

Husqvarna 532123935

Plug Hole Blk 1.485/1.515 Dia.

$5.99

$

Usually ships in 3-10 days

0

38

Husqvarna 817060516

Screw 5/16-18 x 1

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 819112410

Washer 11/32 x 1-1/2 10 Ga.

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532155098

Indicator Height STLT

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 532110452

Nut Phos & Oil

$3.99

$

Usually ships in 3-10 days

0
