YTH 150 (960410022-02) - Husqvarna Yard Tractor (2008-01) ENGINE Parts Diagram

Yard Tractor

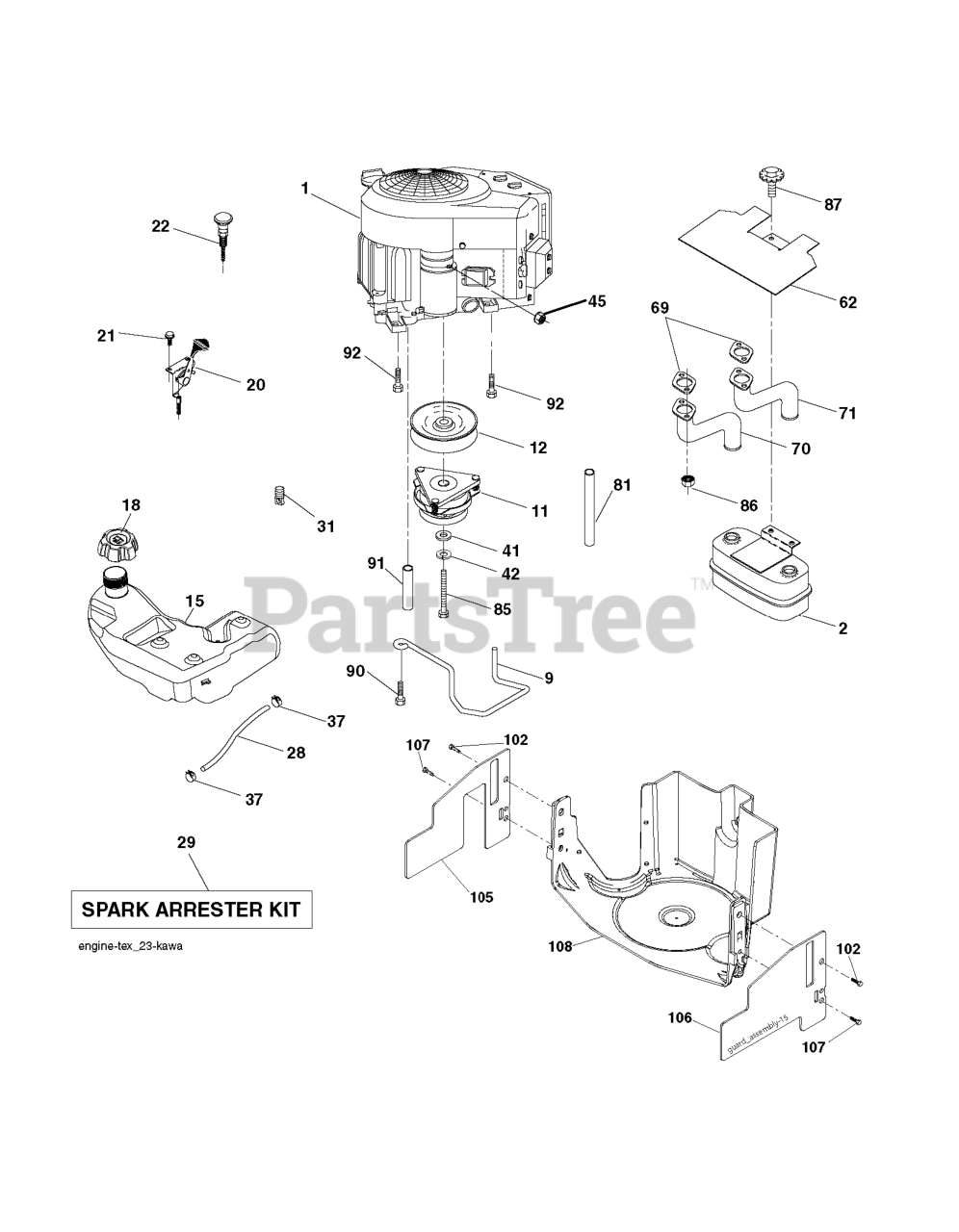

ENGINE Parts Diagram

  • Title

87

Husqvarna 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$7.49

$

In Stock, only 4 left!

0

18

Husqvarna 532194267

CAP.FUEL.TANK.3"GREY
(Superseded to 584248702)

$17.99

$

In Stock, only 1 left!

0

71

Husqvarna 532181442

EXHAUST TUBE RH KAWI

$72.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

21

Husqvarna 532191611

SCREW
(Superseded to 532416358)

$

$

Not available

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 1 left!

0

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$40.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532193499

TANK.FUEL.4GAL

$145.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available

105

Husqvarna 532410528

SHIELD.SIDE.LH.3842"TEX FRENCH

$

$

Not available

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

31

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

106

Husqvarna 532410529

SHIELD.SIDE.RH.3842"TEX FRENCH

$

$

Not available

108

Husqvarna 532410532

NEEDS DESCRIPTION

$

$

Not available

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

Usually ships in 3-10 days

0

107

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

69

NEEDS DESCRIPTION

Note: Gasket

$

$

Not available

20

Husqvarna 532178385

THROTTLE CABLE
(Superseded to 532175437)

$44.99

$

In Stock, only 1 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

11

Husqvarna 532180505

RB.CLUTCH.OGURA.4.4.PD
(Superseded to 583389701)

$399.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

62

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532181444

EXHAUST TUBE LH KAWI

$51.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0
