YTH 150 (954140108-B) - Husqvarna Yard Tractor (1999-11) Steering Assembly Parts Diagram

Yard Tractor

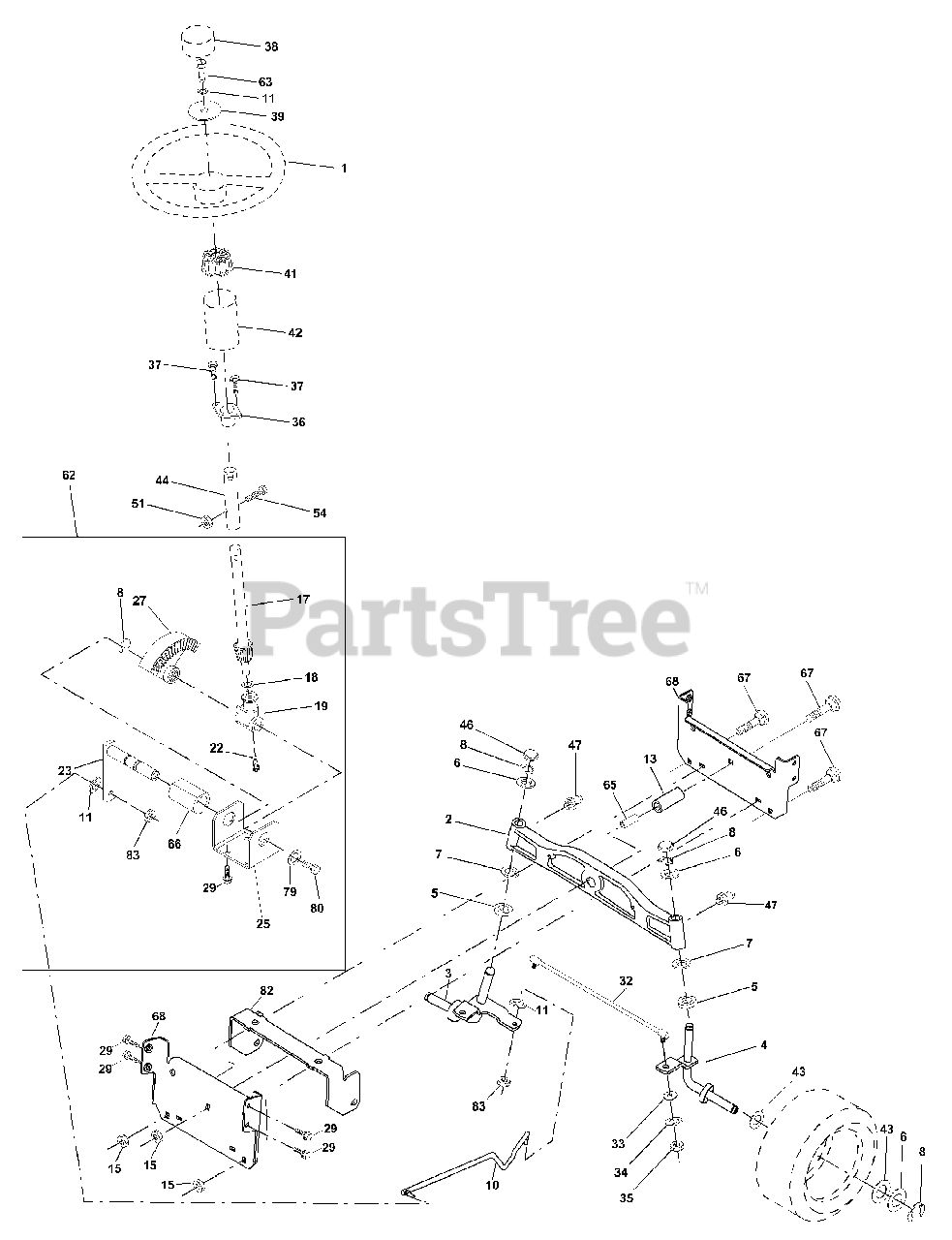

Steering Assembly Parts Diagram

  • Title
1

Husqvarna 532166627

Wheel Steering
(Superseded to 532159944)

$

$

Not available

2

Husqvarna 532165854

Axle Cast LT Machined
(Superseded to 532193542)

$169.99

$

In Stock, only 1 left!

0

3

Husqvarna 532169840

Spindle Asm Cast LH
(Superseded to 596873901)

$18.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532169839

Spindle Asm Cast RH
(Superseded to 596873801)

$31.99

$

In Stock, only 1 left!

0

5

Husqvarna 532124931

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 10

0

6

Husqvarna 532121748

Washer 25/32 X 1-5/8 X 16 Ga

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 819272016

Washer 27/32 X 1-1/4 X 16 Ga

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 812000029

Ring Klip #t5304-75

$4.99

$

Usually ships in 3-10 days

0

10

$80.99

$

In Stock, only 1 left!

0

11

Husqvarna 810040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

13

Husqvarna 532136518

Spacer Brg Axle Front

$9.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532145212

Nut Hex Flange Lock Yel D
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532156546

Shaft Asm Strg Private Label
(Superseded to 531166901)

$49.99

$

In Stock, only 3 left!

0

18

Husqvarna 532057079

Washer Thrust 515 x 750 x 033

$6.49

$

In Stock, Qty 10

0

19

Husqvarna 532160395

Support Shaft

$10.99

$

In Stock, Qty 7

0

22

Husqvarna 532165857

Screw Hex Wshhd Torx

$6.49

$

In Stock, only 3 left!

0

23

Husqvarna 532165851

Shaft Asm Pittman

$22.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532154406

Bracket Steering

$8.99

$

In Stock, only 1 left!

0

27

Husqvarna 532136874

Gear Sector 22 Teeth

$80.99

$

In Stock, only 1 left!

0

29

Husqvarna 817060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 532139929

Rod Tie
(Superseded to 532171888)

$68.99

$

In Stock, only 1 left!

0

33

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 11

0

34

Husqvarna 810040500

Washer Lock Hvy. Helical 5/16 SD
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

35

Husqvarna 873680500

Nut Crown Lock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532155099

Bushing Strg
(Superseded to 532155106)

$10.99

$

In Stock, Qty 12

0

37

Husqvarna 532152927

Screw TT #32.5 x 5 x 3/8 Flange

$7.49

$

In Stock, only 2 left!

0

38

Husqvarna 532166626

Cap Wheel Steer
(Superseded to 532172092)

$17.99

$

Usually ships in 3-10 days

0

39

Husqvarna 819132411

Washer 13/32 x 1-1/20 x 11 Ga.

$

$

Not available

40

Husqvarna 532124701

Nut Lock Center 3/8-24 Unf
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532159945

Adaptor Wheel Strg

$

$

Not available

42

Husqvarna 532169634

Boot Dash Steering
(Superseded to 532145054)

$

$

Not available

43

Husqvarna 532121749

Washer 25/32 X 1 1/4 X 16 Ga

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532153720

Extension Steering Non-adjust
(Superseded to 532153721)

$

$

Not available

46

Husqvarna 532121232

Cap Spindle Fr Top Blk

$4.99

$

In Stock, Qty 8

0

47

Husqvarna 532124836

Fitting Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

51

Husqvarna 873800500

Nut Lock Hex W/Ins 5/16-18 UNC

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 874780520

Bolt Fin Hex 5/16-18 UNC x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532167902

Steering Assembly
(Superseded to 584371701)

$136.99

$

In Stock, only 1 left!

0

63

Husqvarna 874780616

Bolt Fin Hex 3/8-16 UNC x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532160367

Spacer, Brace Axle
(Superseded to 532414736)

$6.99

$

In Stock, only 4 left!

0

66

Husqvarna 532154404

Bearing Arm Pittman

$6.49

$

In Stock, only 3 left!

0

67

Husqvarna 872110618

Bolt Rdhd Sqnk 3/8-16 x 2-1/4

$6.49

$

In Stock, only 2 left!

0

68

Husqvarna 532169827

Brace, Axle

$21.99

$

Usually ships in 3-10 days

0

79

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

80

Husqvarna 874950612

Bolt Hex Nylon 3/8-16 x 3/4

$6.49

$

In Stock, only 3 left!

0

82

Husqvarna 532169835

Bracket Susp Chassis Front 15"
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

83

UNKNOWN

$

$

Not available
