YTH 150 (954140108-B) - Husqvarna Yard Tractor (1999-11) Engine Parts Diagram

Yard Tractor

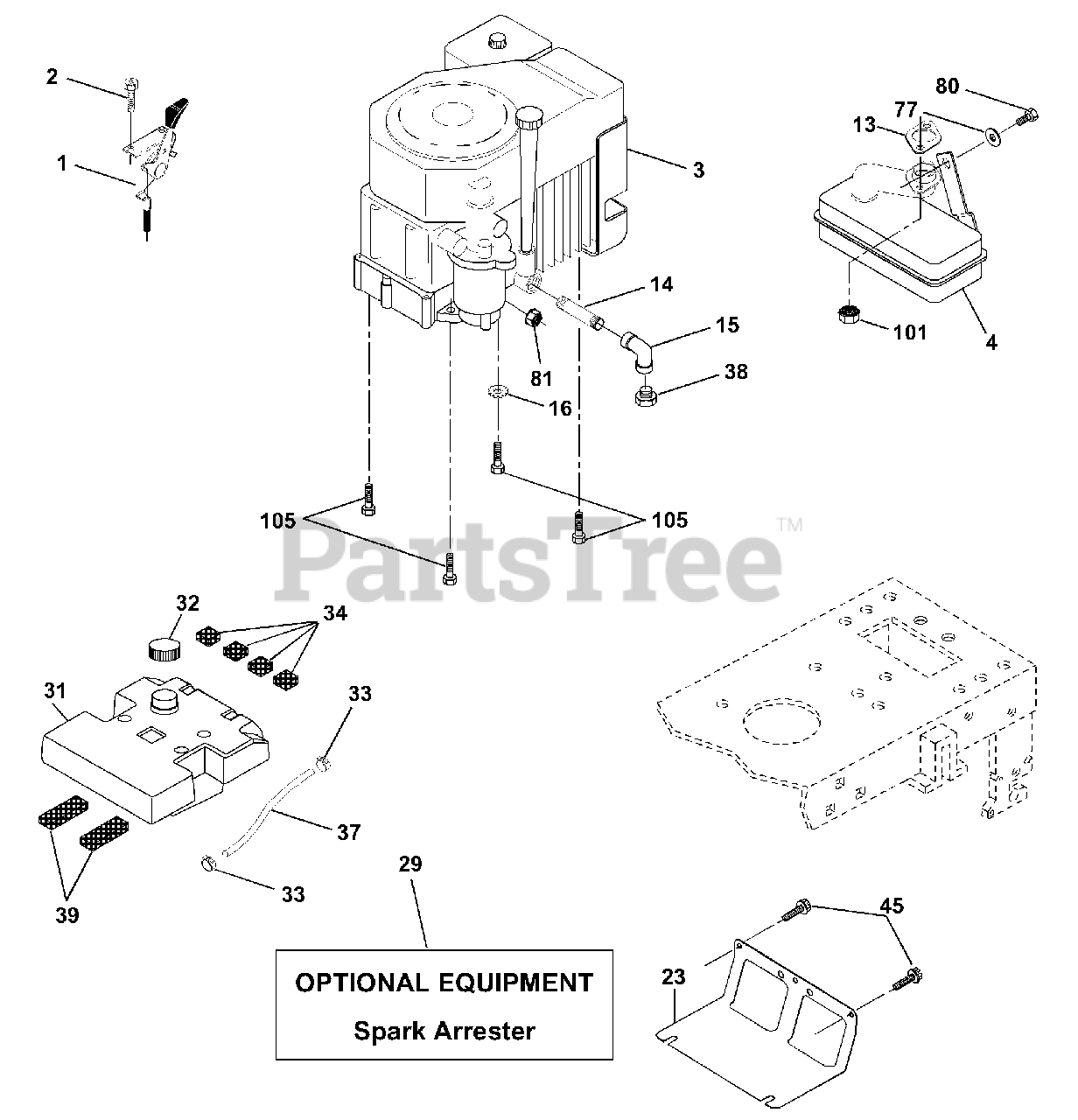

Engine Parts Diagram

  • Title
1

Husqvarna 532141296

Control Th/ch 27. LH. Flag Dom.
(Superseded to 532170805)

$

$

Not available

2

Husqvarna 817720410

Screw Hex Thd Cut 1/4-20 x 5/8 T
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

3

Engine Kohler Model CV15

Note: (Order parts from engine manufacturer)

$

$

Not available

4

Husqvarna 532159420

Muffler Kohler Single w/Port

$121.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532163831

Gasket Kohler CV13-CV16.5

$

$

Not available

14

Husqvarna 813280328

Nipple Pipe 3/8 Npt X 3-1/2

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 813200300

Elbow Std 90 Degree 3/8-18 Npt
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

16

Husqvarna 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

23

Husqvarna 532169837

Shield BRN/DBR Guard

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Kit Spark Arrestor (Flat Scrn)

Note: Optional Equipment

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532157103

Tank Fuel 3.5 STLT W/O Sensor

$

$

Not available

32

Husqvarna 532140527

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Clamp Hose Black

$7.49

$

In Stock, only 1 left!

0

34

Husqvarna 532106082

Pad Spacer

$

$

Not available

37

Husqvarna 532124923

Line Fuel 7.5"
(Superseded to 587044808)

$6.99

$

Usually ships in 3-10 days

0

38

Plug Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available

39

Husqvarna 532109227

Pad Idler 1.75 x .75 x .06

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 817060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

77

Husqvarna 819101216

Washer 5/16 x 3/4 x 16 Ga.
(Superseded to 734115441)

$4.99

$

In Stock, only 1 left!

0

80

Husqvarna 874760508

Bolt Hex Hd. 5/16-18unc x 1/2

$3.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532128861

Nut Flange 1/4-20 Starter Nut
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

101

Husqvarna 532163305

Nut Flange M8-1.25 Non-LK
(Superseded to 873030800)

$

$

Not available

105

Husqvarna 817120616

Screw 3/8-16 x 1

$5.99

$

In Stock, Qty 17

0
