YTH 150 (954140007-C) - Husqvarna Yard Tractor (1997-01) ENGINE Parts Diagram

Yard Tractor

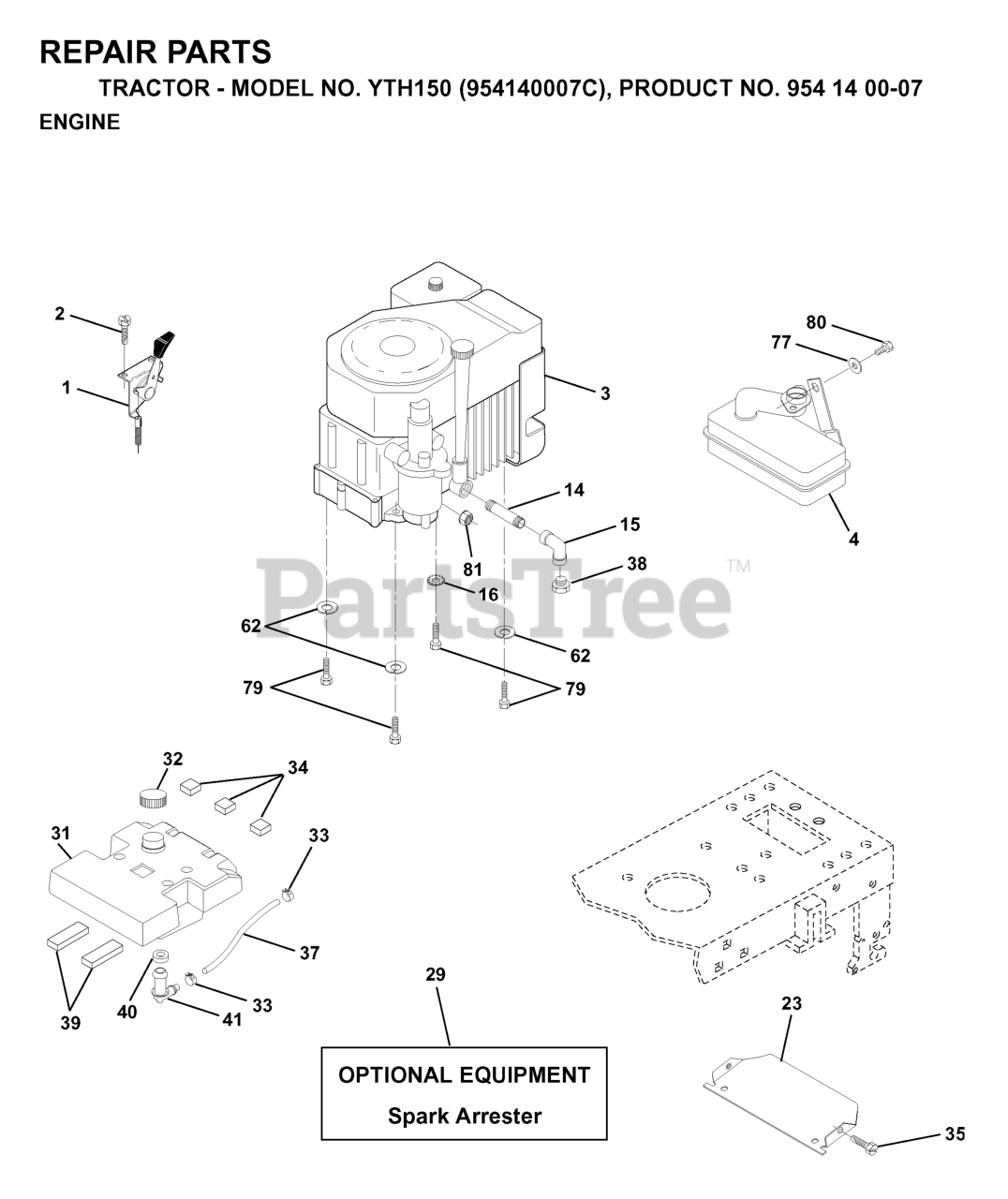

ENGINE Parts Diagram

  • Title
34

Husqvarna 532106082

PAD-SPACER LT

$

$

Not available

40

Husqvarna 532124952

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532128861

NUT FLANGE 1/4-20 STARTER NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532156123

SHIELD HEAT

$

$

Not available

2

Husqvarna 817720410

SCREW LT
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

15

Husqvarna 813200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

39

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 532137350

MUFFLER LT 12.5
(Superseded to 532159420)

$121.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532157103

TANK.FUEL(3.5.GAL)

$

$

Not available

37

Husqvarna 532124923

HOSE T
(Superseded to 587044808)

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

79

Husqvarna 532125398

BOLT, HEX
(Superseded to 740108025)

$

$

Not available

16

Husqvarna 811050500

WASHER EXT TOOTH LOCK 5/16
(Superseded to 810040500)

$3.99

$

In Stock, only 3 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 813280328

Std. Pipe Nipple 3/8 - 18 NPT x 3 1/2

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 819101216

WASHER
(Superseded to 734115441)

$4.99

$

In Stock, only 2 left!

0

41

Husqvarna 532139277

STEM FUEL TANK

$8.99

$

In Stock, Qty 7

0

80

Husqvarna 874760508

Bolt, Hex Head, Fin. 5/16-18 x 1/2

$3.99

$

Usually ships in 3-10 days

0
