YTH 150 (954140007-A) - Husqvarna Yard Tractor (1997-01) ELECTRICAL Parts Diagram

Yard Tractor

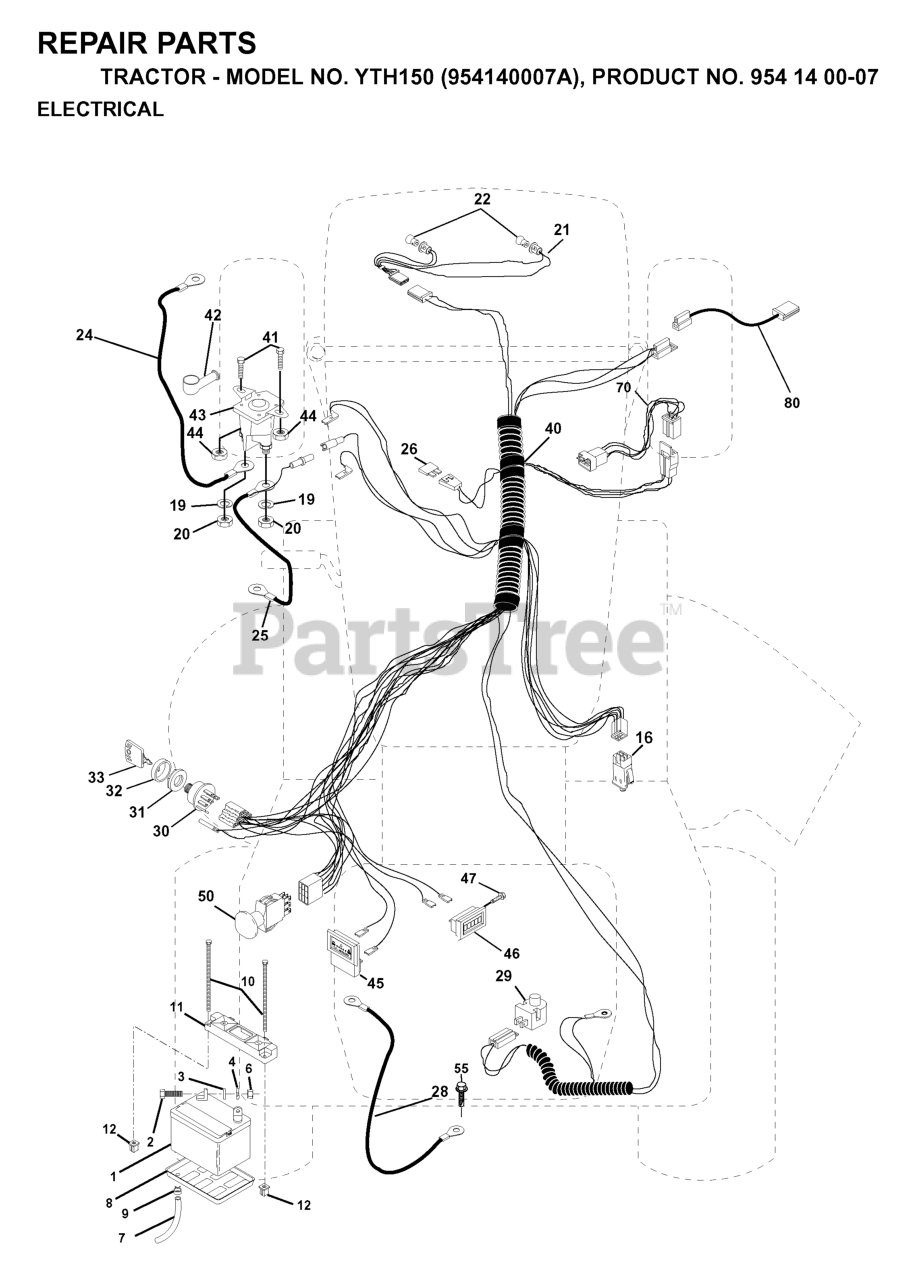

ELECTRICAL Parts Diagram

  • Title

46

Husqvarna 532110940

HOUR METER T
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

55

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532154959

SWITCH PTO 3 PDT
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

80

Husqvarna 532146685

HARNESS, CLUTCH

$26.99

$

In Stock, only 2 left!

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

16

Husqvarna 532153664

SWITCH INTERLOCK
(Superseded to 532176138)

$22.99

$

In Stock, Qty 7

0

3

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532140301

SWITCH.IGNITION.4.POSITION

$37.99

$

In Stock, only 1 left!

0

20

Husqvarna 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

10

Husqvarna 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

29

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

32

Husqvarna 532141226

COVER SWITCH KEY

$5.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532145673

SOLINOID
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

47

Husqvarna 817011008

Screw 10-24 x 1/2 Black

$

$

Not available

4

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

44

Husqvarna 873640400

Nut, Keps Blk Hex 1/4-20 UNC

$

$

Not available

28

Husqvarna 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

Usually ships in 3-10 days

0

41

Husqvarna 871110408

BOLT
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532142621

HARNESS ENG. KOHLER

$

$

Not available

1

Husqvarna 532146139

BATTERY
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

31

Husqvarna 532124211

NUT IGNITION

$5.99

$

In Stock, only 1 left!

0

11

Husqvarna 532150109

BATTERY HOLDDOWN FRONT MOUNT

$

$

Not available

24

Husqvarna 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

21

Husqvarna 532136850

HARNESS LIGHT SOCKET

$

$

Not available

33

Husqvarna 532122147

KEY.MOLDED.GENERIC

$

$

Not available

6

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 532007697

PLASTIC TUBE

$

$

Not available

19

Husqvarna 810090400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

26

Husqvarna 532108824

FUSE HYT

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532121433

AMMETER
(Superseded to 532122822)

$20.99

$

In Stock, only 1 left!

0

9

Husqvarna 532109596

HOSE CLAMP T

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532156443

IGN HARNESS

$

$

Not available

25

Husqvarna 532146148

CABLE BATTERY 6 GA 22" W/16W

$18.99

$

Usually ships in 3-10 days

0
