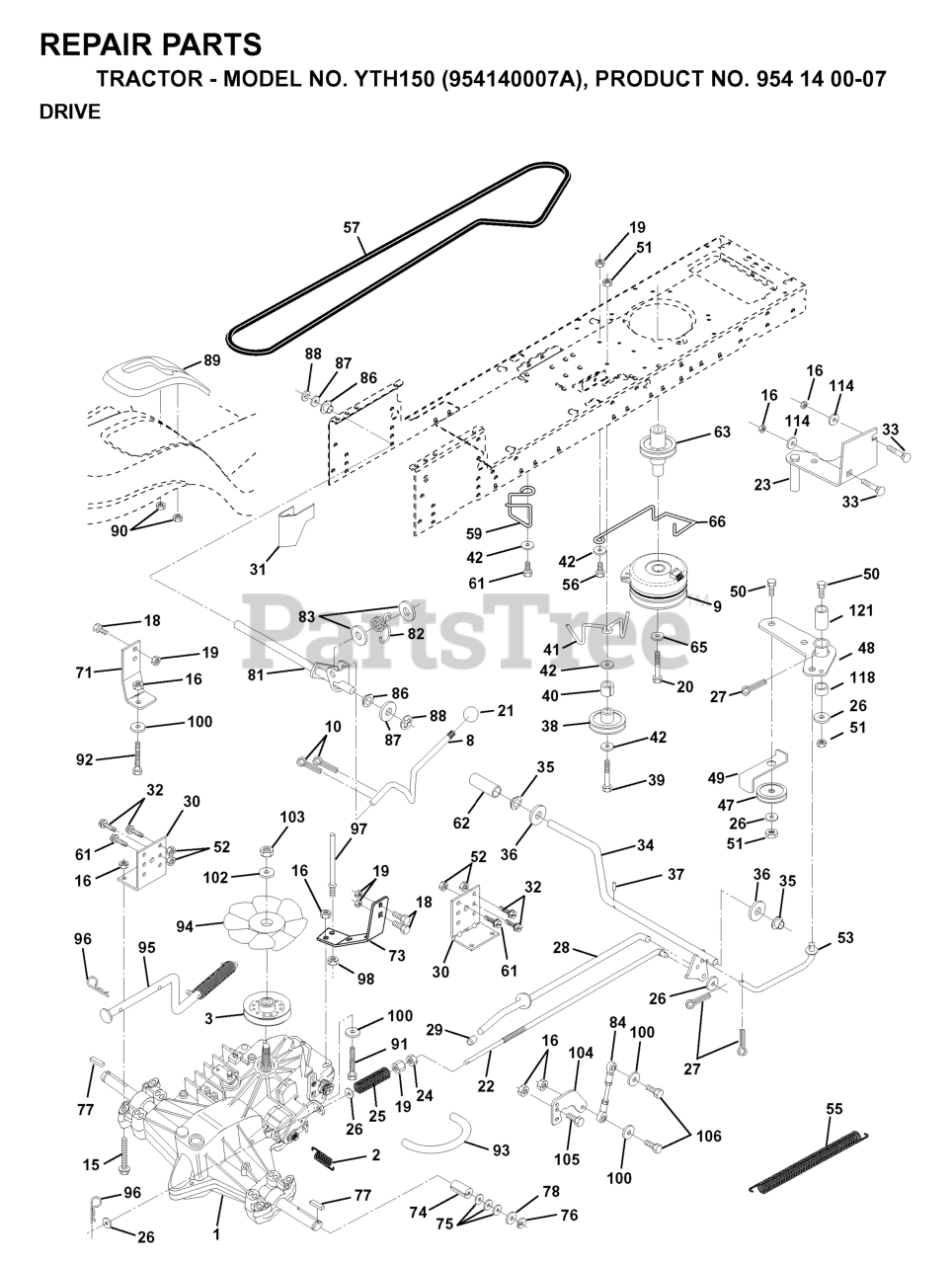

YTH 150 (954140007-A) - Husqvarna Yard Tractor (1997-01) DRIVE Parts Diagram

Yard Tractor

DRIVE Parts Diagram

  • Title
3

Husqvarna 532143995

PULLEY, TRANSAXLE

$34.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

15

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

97

Husqvarna 532140469

KEEPER BELT RH

$

$

Not available

61

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

9

Husqvarna 532145028

CLUTCH.ELECT.EVX.

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

63

Husqvarna 532145868

PULLEY, CLUTCH ELECT EVX

$100.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532156046

SHAFT ASSY

$

$

Not available

84

Husqvarna 532140548

ROD.TIE.BALL.4.75

$

$

Not available

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532154777

KEEPER, BELT IDLER
(Superseded to 532165838)

$

$

Not available

36

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

$13.99

$

Usually ships in 3-10 days

0

40

$6.49

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

71

Husqvarna 532140158

STRAP LH TORQUE

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

$3.49

$

Usually ships in 3-10 days

0

106

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

50

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532124346

NUT.PUSH.3/16

$7.99

$

In Stock, only 1 left!

0

89

Husqvarna 532154882

CONSOLE SHIFT
(Superseded to 532164890)

$24.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532155071

SHAFT, FOOT PEDAL

$

$

Not available

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

30

Husqvarna 532130807

BRACKET TRANSAXLE

$3.99

$

Usually ships in 3-10 days

0

103

Husqvarna 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

95

Husqvarna 532144643

CONTROL ARM, BYPASS HYDRO
(Superseded to 532167696)

$

$

Not available

48

Husqvarna 532154604

BELLCRANK ASSEMBLY

$

$

Not available

62

Husqvarna 532123533

COVER, PEDAL (1 2)

$6.99

$

Usually ships in 3-10 days

0

33

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

118

Husqvarna 532154774

SPACER BELLCRANK

$

$

Not available

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 532150071

TRANSAXLE ASSEMBLY

$

$

Not available

94

Husqvarna 532140462

FAN 7" HYDRO

$12.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532140312

KEEPER CENTER SPAN
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 1 left!

0

23

Husqvarna 532154978

BRACKET, ASM CLUTCH MTG

$

$

Not available

55

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

76

$4.99

$

Usually ships in 3-10 days

0

93

Husqvarna 532142564

LINE FUEL HYD 4"

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

104

Husqvarna 532140156

CONTROL ARM

$

$

Not available

73

Husqvarna 532156347

STRAP TORQUE RH HYDRO

$

$

Not available

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

2

Husqvarna 532142431

SPRING BRAKE

$8.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532145627

ROD BRAKE HYDRO

$193.99

$

In Stock, only 1 left!

0

31

Husqvarna 532127275

KEEPER BELT LH

$

$

Not available

29

Husqvarna 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

87

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

121

Husqvarna 532154419

NYLINER CLUTCHING

$

$

Not available

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

86

Husqvarna 532071208

BUSHING.STEERING.ROD LTB-WSL

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532140294

DRIVE BELT, LTH & YTH TRACTORS

$39.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532150280

BOLT HEX
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

100

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

$3.99

$

In Stock, Qty 11

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

28

Husqvarna 532145204

ROD BRAKE PARK LT

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

92

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$

$

Not available

74

Husqvarna 532121199

SPACER SPLIT

$

$

Not available

114

Husqvarna 819111214

Washer 11/32 x 3/4 x 14 Gauge

$

$

Not available

91

Husqvarna 874780536

BOLT.FIN HEX 5/16-18UNC X2 1/4

$

$

Not available

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

102

$4.99

$

Usually ships in 3-10 days

0

88

$6.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

82

Husqvarna 532123782

SPRING,TORSION

$

$

Not available

51

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532154792

ROD SHIFT FENDER

$12.99

$

Usually ships in 3-10 days

0
