YTH 142 (954000352-A) - Husqvarna Yard Tractor (1991-08) Steering Assembly Parts Diagram

Yard Tractor

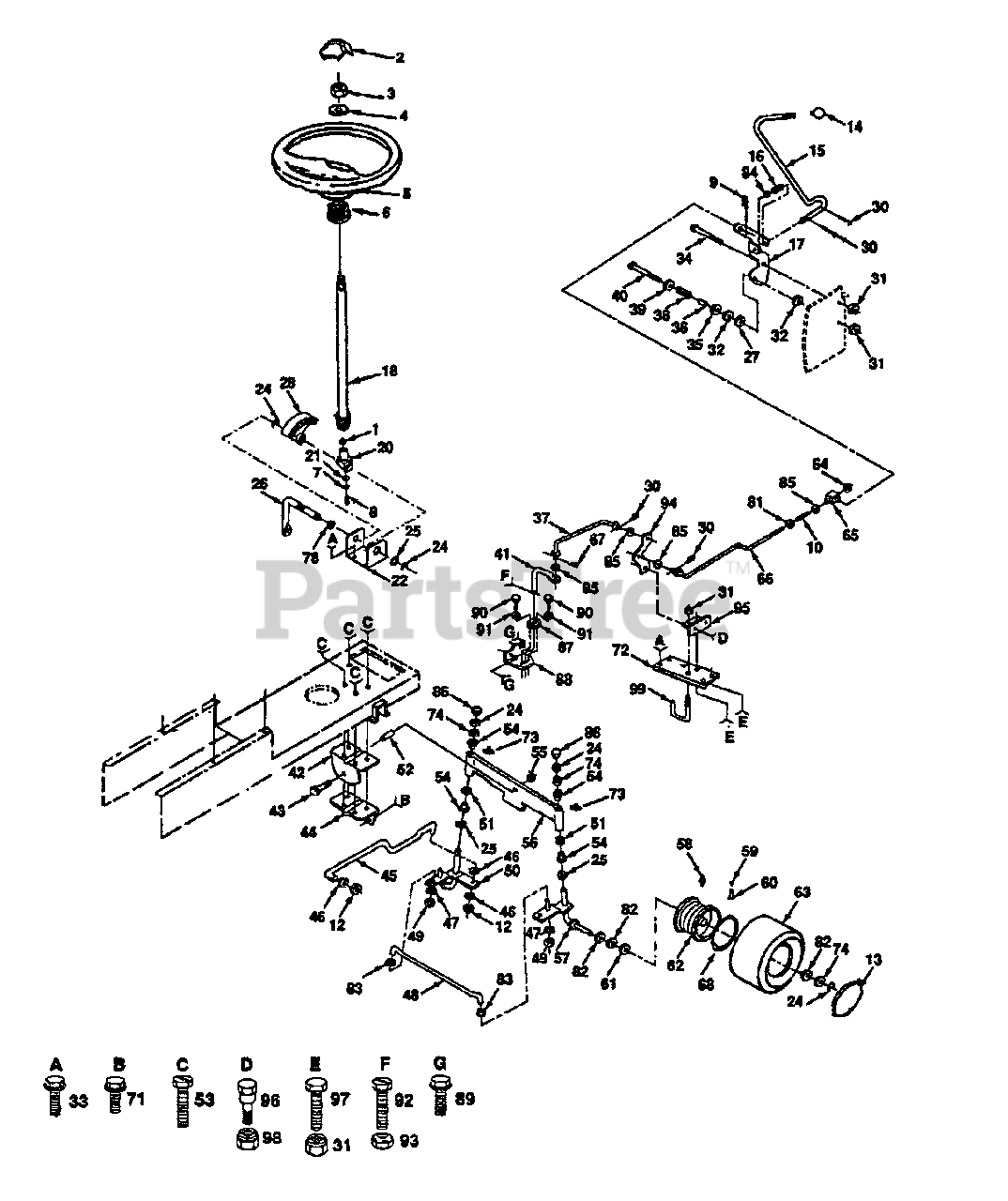

Steering Assembly Parts Diagram

  • Title

1

Husqvarna 532057079

Washer

$6.49

$

In Stock, Qty 10

0

2

Husqvarna 532124416

Insert, Steering Wheel

$

$

Not available

3

Husqvarna 873940800

Nut, Jam, Toplock 1/2-20

$7.49

$

In Stock, only 4 left!

0

4

Husqvarna 532100712

Washer

$

$

Not available

5

Husqvarna 532124415

Wheel, Steering

$

$

Not available

6

Husqvarna 532100711

Adapter, Steering Wheel
(Superseded to 587738905)

$9.49

$

In Stock, Qty 6

0

7

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

8

Husqvarna 871070410

Screw, Socket, Hex 1/4-20 x 5/8
(Superseded to 532165857)

$6.49

$

In Stock, only 3 left!

0

9

Husqvarna 532124961

Spring, Retainer
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

10

Husqvarna 532102670

Spring, Compression

$

$

Not available

12

Husqvarna 873610600

Nut, Hex, Fin 3/8-24 UNF
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532124577

Cover, Wheel

$

$

Not available

14

Husqvarna 532121274

Knob, Gear Shift

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110845

Rod, Control

$8.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532121631

Spring, Torsion

$

$

Not available

17

Husqvarna 532108196

Bracket, Control Rod

$

$

Not available

18

Husqvarna 532128762

Shaft, Steering
(Superseded to 532156544)

$91.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532124035

Support, Shaft
(Superseded to 532160395)

$10.99

$

In Stock, Qty 7

0

21

Husqvarna 532126684

Washer, Shim 1/4 x 5/8 x .062
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532124036

Bracket, Steering

$

$

Not available

24

Husqvarna 812000029

Ring, Klip

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532124931

Bearing, Thrust
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

26

Husqvarna 532127501

Shaft. Pitman
(Superseded to 532156365)

$

$

Not available

27

Husqvarna 532108972

Washer, Friction

$

$

Not available

28

Husqvarna 532124034

Gear, Sector
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

30

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

31

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532108200

Spacer, Nylon

$

$

Not available

33

Husqvarna 817490612

Screw, Hex Washer Thread Rolling 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

34

Husqvarna 532108518

Bolt, Hex Shoulder 3/8-16 x 1-3/8

$

$

Not available

35

Husqvarna 819212016

Washer 21/32 x 1-1/4 x 16 Gauge

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532108201

Spacer

$

$

Not available

37

Husqvarna 532121202

Link, Control, Pump

$

$

Not available

38

Husqvarna 532108844

Spring, Compression

$

$

Not available

39

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Gauge
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

40

Husqvarna 874760648

Bolt, Hex 3/8-16 x 3
(Superseded to 874780648)

$

$

Not available

41

Husqvarna 532121209

Lever, Pump Control

$

$

Not available

42

Husqvarna 532105663

Support, Saddle, Rear

$

$

Not available

43

Husqvarna 874761060

Bolt, Hex 5/8-11 x 3-3/4

$6.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532105664

Support, Saddle, Front

$9.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532130468

link, Drag

$93.99

$

In Stock, only 1 left!

0

46

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 14

0

47

Husqvarna 810040500

Washer, Lock 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 1 left!

0

48

Husqvarna 532130467

Rod, Tie
(Superseded to 532170162)

$93.99

$

In Stock, only 4 left!

0

49

Husqvarna 873810500

Nut, Hex 5/16-24 UNF
(Superseded to 873610500)

$

$

Not available

50

Husqvarna 532130460

S ndle, LH. Washer
(Superseded to 532156483)

$26.99

$

Usually ships in 3-10 days

0

51

Husqvarna 819272016

27/32 x 1-1/4 x 16 Gauge

$6.49

$

In Stock, only 2 left!

0

52

Husqvarna 532110438

Spacer, Bearing
(Superseded to 532155134)

$

$

Not available

53

Husqvarna 532122819

Screw, Special 3/8-16 x 3/4

$

$

Not available

54

Husqvarna 532124937

Bearing
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 873601000

Nut, Jam Lock Hex W/Washer 5/8-16
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532108075

Axle, Front

$

$

Not available

57

Husqvarna 532130459

Spindle, R.H.

$

$

Not available

58

Husqvarna 532124957

Fitting, Grease
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532065139

Stem Valve

$9.99

$

In Stock, only 1 left!

0

60

Husqvarna 532059192

Cap, Valve

$7.49

$

In Stock, Qty 9

0

61

Husqvarna 532124959

Bearing
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

62

Husqvarna 532125102

Rim, Front
(Superseded to 532141446)

$91.99

$

In Stock, only 4 left!

0

63

Husqvarna 532106222

Tire, Front
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

64

Husqvarna 873800600

Locknut, Hex, w/Wsh. 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532108212

Trunnion

$18.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532121750

Rod. Control, Adjustable

$47.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532124788

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

68

Husqvarna 532059904

Tube, Tire Front

$37.99

$

In Stock, Qty 7

0

71

Husqvarna 817490508

Screw, Hex Washer Thread Rolling 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532123186

Bracket, Chassis, Reinforcement, Hydra

$

$

Not available

73

Husqvarna 532124836

Fitting, Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

74

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Gauge

$4.99

$

In Stock, Qty 20+

0

78

Husqvarna 532109816

Nyliner, Snap-in

$6.49

$

In Stock, only 2 left!

0

81

Husqvarna 819131212

Washer 13/32 x 3/4 x 12 Gauge
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

82

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Gauge

$3.49

$

Usually ships in 3-10 days

0

83

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Gauge
(Superseded to 734116301)

$3.99

$

In Stock, Qty 11

0

84

Husqvarna 819151516

Washer 15/32 x 15/16 x 16 Gauge

$

$

Not available

85

Husqvarna 532110739

Washer, Spring

$4.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532121232

Cap, Spindle

$4.99

$

In Stock, Qty 8

0

87

Husqvarna 532121217

Guide, Control

$

$

Not available

88

Husqvarna 532121216

Bracket, Control Guide

$

$

Not available

89

Husqvarna 817490512

Screw, Hex Washer Thread Rolling 5/16-18 x 3/4 Type TT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

90

Husqvarna 817021008

Screw, Tap Hex Hd. #10-24 UNC x 1/2 Type T

$4.99

$

In Stock, Qty 16

0

91

Husqvarna 819070816

Washer 7/32 x 1/2 x 16 Gauge

$6.99

$

In Stock, only 1 left!

0

92

Husqvarna 874561014

Screw, Hex Socket Hd. #10-24 UNC

$2.99

$

Usually ships in 3-10 days

0

93

Husqvarna 532069180

Locknut #10-24 UNC

$6.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532121204

Bellcrank

$

$

Not available

95

Husqvarna 532121206

Bracket, Bellcrank, Pivot

$

$

Not available

96

Husqvarna 532100536

Bolt, Shoulder

$

$

Not available

97

Husqvarna 874760616

Bolt. Hex, Fin 3/8-16 UNC x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

98

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532121190

Keeper, Centerspan

$

$

Not available
