YTH 142 (954000352-A) - Husqvarna Yard Tractor (1991-08) Drive Parts Diagram

Yard Tractor

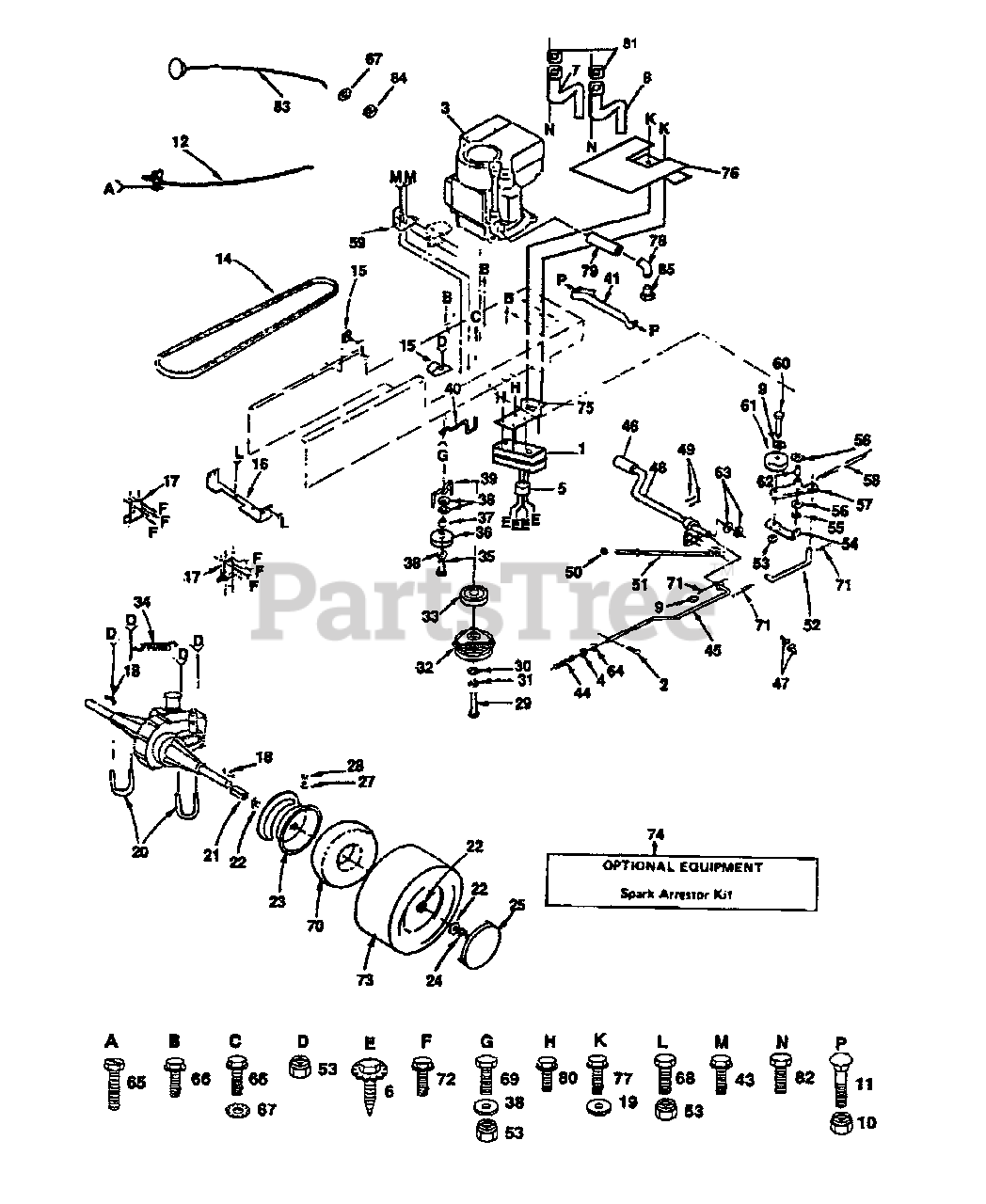

Drive Parts Diagram

  • Title

1

Husqvarna 532122440

Muffler

$

$

Not available

2

Husqvarna 532124788

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

3

Engine, Briggs & Stratton, Vanguard Model #303777

$

$

Not available

4

Husqvarna 873350600

Nut, Hex, Jam 3/8 x 16 UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

5

Husqvarna 532101326

Deflector

$

$

Not available

6

Husqvarna 817030808

Screw, Spider Lock, Hex #8 x 1/2
(Superseded to 817030814)

$

$

Not available

7

Husqvarna 532122434

Tube Manifold, L.H.

$

$

Not available

8

Husqvarna 532122435

Tube Manifold, R.H.

$75.99

$

Usually ships in 3-10 days

0

9

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Gauge
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532132763

Control, Throttle

$

$

Currently unavailable

14

Husqvarna 532123461

V-Belt, Drive

$

$

Not available

15

Husqvarna 532124996

Clip
(Superseded to 532002751)

$

$

Not available

16

Husqvarna 532121187

Bracket, Mounting, Hydro T/A

$

$

Not available

17

Husqvarna 532126649

Bracket, Transaxle

$

$

Not available

18

Husqvarna 532123583

Key, Square 1/4 x 2

$4.99

$

In Stock, Qty 7

0

19

Husqvarna 819131614

Washer 13/32 x 1 x 14 Gauge
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532121189

U-Bolt 3/8-16 x 2.83

$

$

Not available

21

Husqvarna 532121199

Spacer, Split

$

$

Not available

22

Husqvarna 532121748

Washer 1-1/32 x 1-5/8 x 16 Gauge

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532124999

Rim, Rear
(Superseded to 532106108)

$145.99

$

Usually ships in 3-10 days

0

24

Husqvarna 812000001

E-Ring

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532124578

Cover, Wheel

$

$

Not available

27

Husqvarna 532065139

Stem, Valve

$9.99

$

In Stock, only 3 left!

0

28

Husqvarna 532059192

Cap, Valve

$7.49

$

In Stock, Qty 9

0

29

Husqvarna 871130768

Bolt, Hex, Fin 7/16-20 UNF x 4 Grade 8

$

$

Not available

30

Husqvarna 532126197

Washer 1-1/2 OD x 15/32 ID x .250

$8.99

$

In Stock, only 3 left!

0

31

Husqvarna 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$

$

Not available

32

Husqvarna 532108218

Clutch, Electric
(Superseded to 532142600)

$

$

Not available

33

Husqvarna 532123795

Pulley, Engine
(Superseded to 532136906)

$

$

Not available

34

Husqvarna 532110422

Spring, Brake Return
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

35

Husqvarna 874760644

Soft, Hex 3/8-16 x 2-3/4

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532004859

Idler, Flat
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

37

Husqvarna 532124965

Spacer

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Gauge
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532109070

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532129921

Keeper, Belt, Engine

$

$

Not available

41

Husqvarna 532109169

Retainer, Clutch Assembly
(Superseded to 532109172)

$

$

Not available

43

Husqvarna 817021008

Screw, Tap. Hex Hd, #10-24 x 1/2 Type T

$4.99

$

In Stock, Qty 14

0

44

Husqvarna 532106888

Spring, Rod, Brake
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

45

Husqvarna 532121200

Rod, rake
(Superseded to 532132654)

$

$

Not available

46

Husqvarna 532123533

Cover, Pedal

$6.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532120183

Bearing, Nylon

$6.99

$

In Stock, only 4 left!

0

48

Husqvarna 532122424

Shaft, Foot Pedal, Assembly

$

$

Not available

49

Husqvarna 532124963

Pin, Roll 3/16 x 1
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

50

Husqvarna 532071673

Cap, Plunger

$5.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532133261

Rod, Brake, Park

$

$

Not available

52

Husqvarna 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

53

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532123205

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 812000039

Ring, Klip

$6.49

$

In Stock, Qty 7

0

56

Husqvarna 532110812

Washer, Hardened

$

$

Not available

57

Husqvarna 532123789

Arm, Assembly, Idler

Note: (Include Key No. 62)

$

$

Not available

58

Husqvarna 532105709

Spring, Return, Clutch

$11.99

$

In Stock, only 2 left!

0

59

Husqvarna 532108236

Bracket, Switch

$2.99

$

Usually ships in 3-10 days

0

60

Husqvarna 874760624

Bolt, Hex 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532127783

Pulley, Idler
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

62

Husqvarna 532105706

Bearing

$7.49

$

Usually ships in 3-10 days

0

63

Husqvarna 819211616

Washer 21/32 x 1 x 16 Gauge

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 873800600

Locknut, Hex W/Wash 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

65

Husqvarna 817720410

Screw, Hex Thread Cut. 1/4-20 x 5/8
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

66

Husqvarna 817490624

Screw, Hex Washer Thread Rolling 3/8-18 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

67

Husqvarna 811050600

Washer, Lock External Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

68

Husqvarna 874760612

Soft, Hex 3/8-16 x 3/4

$4.99

$

In Stock, only 3 left!

0

69

Husqvarna 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

70

Husqvarna 532124926

Tube
(Superseded to 532007152)

$74.99

$

Usually ships in 3-10 days

0

71

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

72

Husqvarna 817490612

Screw, Hex, Thdrol 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

73

Husqvarna 532122082

Tire
(Superseded to 532125833)

$194.99

$

In Stock, only 1 left!

0

74

Husqvarna 532121851

Spark, Arrestor Kit

$

$

Not available

75

Husqvarna 532122439

Bracket, Muffler Mounting

$

$

Not available

76

Husqvarna 532122981

Shield, Heat

$

$

Not available

77

Husqvarna 817490512

Screw, Hex, Washer Thrdrol 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

78

Husqvarna 813200300

Elbow, STD 90° 3/8-18 NPT
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

79

Husqvarna 813280336

Nipple, Pipe

$

$

Not available

80

Husqvarna 817190408

Screw, Hex, Washer Thrdrol. 1/4-20
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

81

Gasket

Note: (Order from Engine Mfg.)

$

$

Not available

82

Bolt, Metric

Note: (Order from Engine Mfg.)

$

$

Not available

83

Husqvarna 532132781

Choke Control

$

$

Not available

84

Husqvarna 873610600

Nut, Hex 3/8-24 UNF
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

85

Plug, Oil Drain

Note: (Order from Engine Manufacturer)

$

$

Not available
