YTH 142 (954000352-A) - Husqvarna Yard Tractor (1991-08) Agri-Fab Transaxle Parts Diagram

Yard Tractor

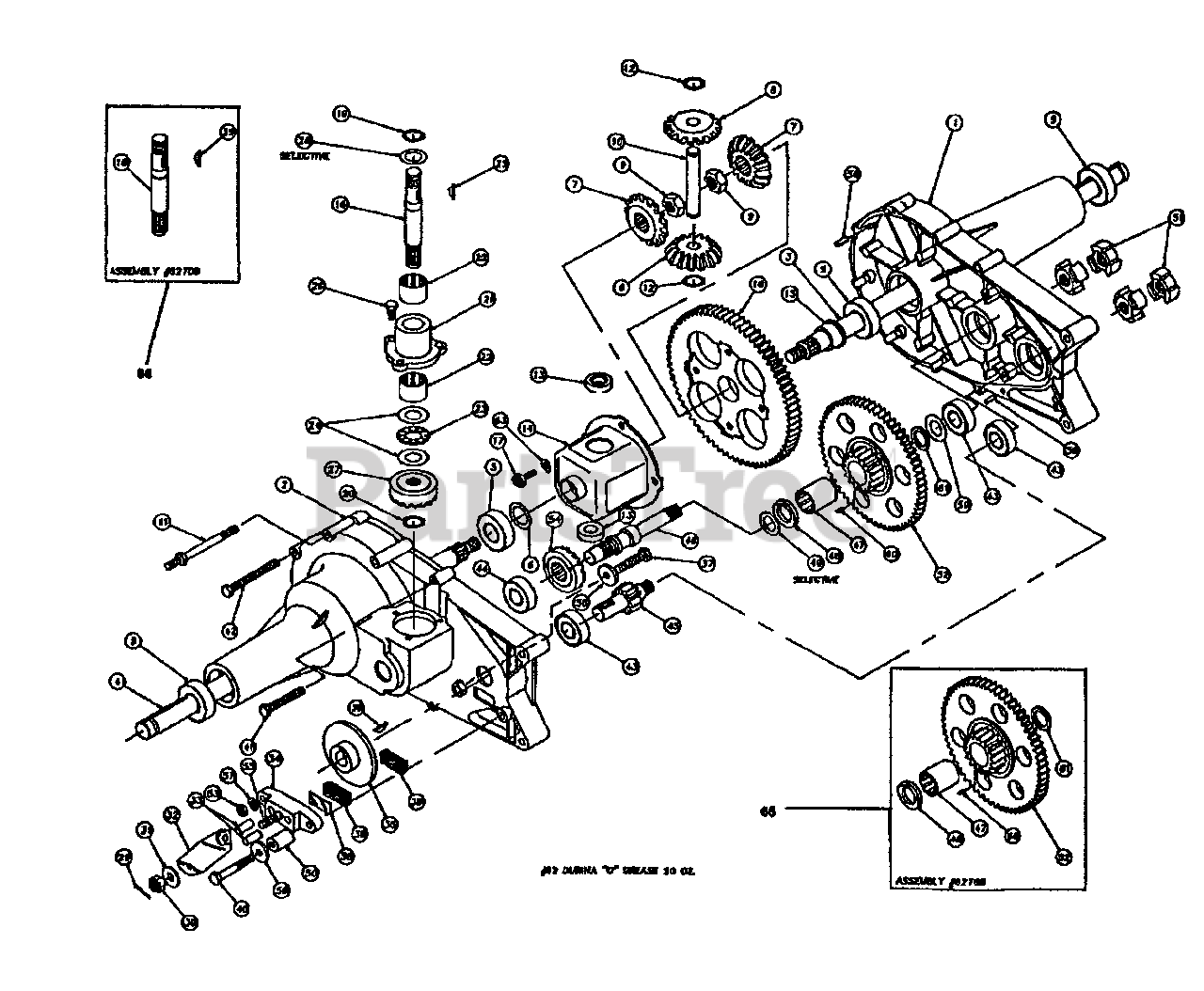

Agri-Fab Transaxle Parts Diagram

  • Title

1

Husqvarna 532122614

Housing, Half, L.H.

$

$

Not available

2

Husqvarna 532122615

Housing, Half, R.H.

$

$

Not available

3

Husqvarna 532122616

Axle, L.H.

$

$

Not available

4

Husqvarna 532122620

Axle, R.H.

$

$

Not available

5

Husqvarna 532122621

Bearing, Ball

$

$

Not available

6

Husqvarna 532122622

Washer, Flat 3/4 x 1-1/8 x .030

$

$

Not available

7

Husqvarna 532122623

Gear, Miter

$

$

Not available

8

Husqvarna 532122624

Gear, Miter

$

$

Not available

9

Husqvarna 532122626

Nut, Hex Jam W/Patch 1/2-20

$

$

Not available

10

Husqvarna 532122626

Shaft, Cross

$

$

Not available

11

Husqvarna 532122688

Screw, Stud

$

$

Not available

12

Husqvarna 532122629

Snap, Ring

$2.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532122631

Bearing, Thrust

$

$

Not available

14

Husqvarna 532122633

Housing Assembly, Differential

$182.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532122634

Bearing, Flange

$

$

Not available

16

Husqvarna 532122640

Gear Differential 72 Tooth

$

$

Not available

17

Husqvarna 532122641

Bolt, Torx Head 1/4-28 x 5/8"

$

$

Not available

18

Husqvarna 532122642

Shaft, Input
(Superseded to 532155892)

$376.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532122643

Snap, Ring

$

$

Not available

20

Husqvarna 532122644

Retaining Ring 7/16"

$

$

Not available

21

Husqvarna 532122645

Housing, Input Bearing
(Superseded to 532155892)

$376.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532122646

Bearing, Needle

$

$

Not available

23

Husqvarna 532122647

Bearing, Thrust

$

$

Not available

24

Husqvarna 532122648

Washer, Flat 5/8 x 1-1/8 x .030

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532122649

Key, Hi-Pro 3/32 x 5/8

$

$

Not available

26

Husqvarna 532122650

Screw Hex W/Patch 1/4-20 x 314

$

$

Not available

27

Husqvarna 532122651

Gear, Input Pinion 17 Tooth

$

$

Not available

28

Husqvarna 532123061

Washer, Flat .62 x 1 x .05
(Superseded to 532170404)

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532122678

Washer, Flat .62 x 1.125 x .060

$

$

Not available

28

Husqvarna 532122654

Washer, Flat .62 x 1 x .040

$

$

Not available

29

Husqvarna 532122656

Pin, Cotter

$

$

Not available

30

Husqvarna 532122658

Nut, Castle 5/16-24
(Superseded to 584281701)

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532122659

Washer, Flat .343 x .88 x .062
(Superseded to 532142884)

$

$

Not available

32

Husqvarna 532122660

Arm, Brake Actuator

$12.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532122662

Pin Brake Actuating

$

$

Not available

34

Husqvarna 532122663

Brake, Yoke
(Superseded to 584289701)

$40.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532122664

Disc, Brake

$

$

Not available

36

Husqvarna 532123066

Key, Hi-Pro 3/16 x 5/8"

$

$

Not available

37

Husqvarna 532122666

Screw, Hex 1/4-20 x 1.50

$

$

Not available

38

Husqvarna 532122667

Plate, Puck

$

$

Not available

39

Husqvarna 532122668

Puck, Brake
(Superseded to 532142883)

$8.99

$

In Stock, only 2 left!

0

40

Husqvarna 532123066

Screw, Hex W/Patch 1/4-20 x 2.00

$

$

Not available

41

Husqvarna 532122670

Screw, Hex Self-Tap 1/4-20 x 2.00

$

$

Not available

42

Husqvarna 532122671

Screw, Hex Self-Tap 1/4-20 x 3.00

$

$

Not available

43

Husqvarna 532126982

Bearing, Ball
(Superseded to 532122672)

$

$

Not available

44

Husqvarna 532122673

Bearing, Ball

$

$

Not available

45

Husqvarna 532122674

Shaft, Pinion W/11 Tooth Gear

$

$

Not available

46

Husqvarna 532122675

Shaft, Drive

$

$

Not available

47

Husqvarna 532123059

Bearing Needle

$

$

Not available

48

Husqvarna 532123060

Bronze Thrust Brg. 5/8 x 1-1/4 x 7/64

$

$

Not available

49

Husqvarna 532122654

Washer, Flat .62 x 1.0 x .040

$

$

Not available

49

Husqvarna 532123061

Washer, Flat .62 x 1.0 x .050
(Superseded to 532170404)

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532122689

Spacer
(Superseded to 539122689)

$

$

Not available

51

Husqvarna 532121839

Coupling

$18.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532126975

Gear, 60 and 17 Tooth

$

$

Not available

53

Husqvarna 532122662

Nut, Hex 1/4-20

$

$

Not available

54

Husqvarna 532122663

Gear, Drive Pinion 17 Tooth
(Superseded to 584289701)

$40.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532122664

Bolt, Square Head

$

$

Not available

56

Husqvarna 532122685

Washer 15/16 x .285 x .125

$

$

Not available

57

Husqvarna 532122686

Washer 1/4" Spring Lock

$

$

Not available

58

Husqvarna 532122687

Pin, Roll 3/16" x 1/2"

$

$

Not available

59

Husqvarna 532122652

Washer, Flat .82 x 1.0 x .030

$

$

Not available

60

Husqvarna 532123062

Pin, Dowel 3/32 x 1/4

$

$

Not available

61

Husqvarna 532123063

Seal, Grease

$

$

Not available

62

Husqvarna 532126976

Shelf, During-O Grease (20oz.)

$47.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532126977

Washer, Head Spring Lock 1/4"

$

$

Not available

65

Husqvarna 532126980

Assembly, Gear, Reduction

$

$

Not available

66

Husqvarna 532126981

Assembly, Shaft, Input

$

$

Not available

Husqvarna 532121431

Transaxle Assembly Complete

$

$

Not available
