YTH 130 (954170026-L) - Husqvarna Yard Tractor (2001-09) ENGINE & CUTTING EQUIPMENT Parts Diagram

Yard Tractor

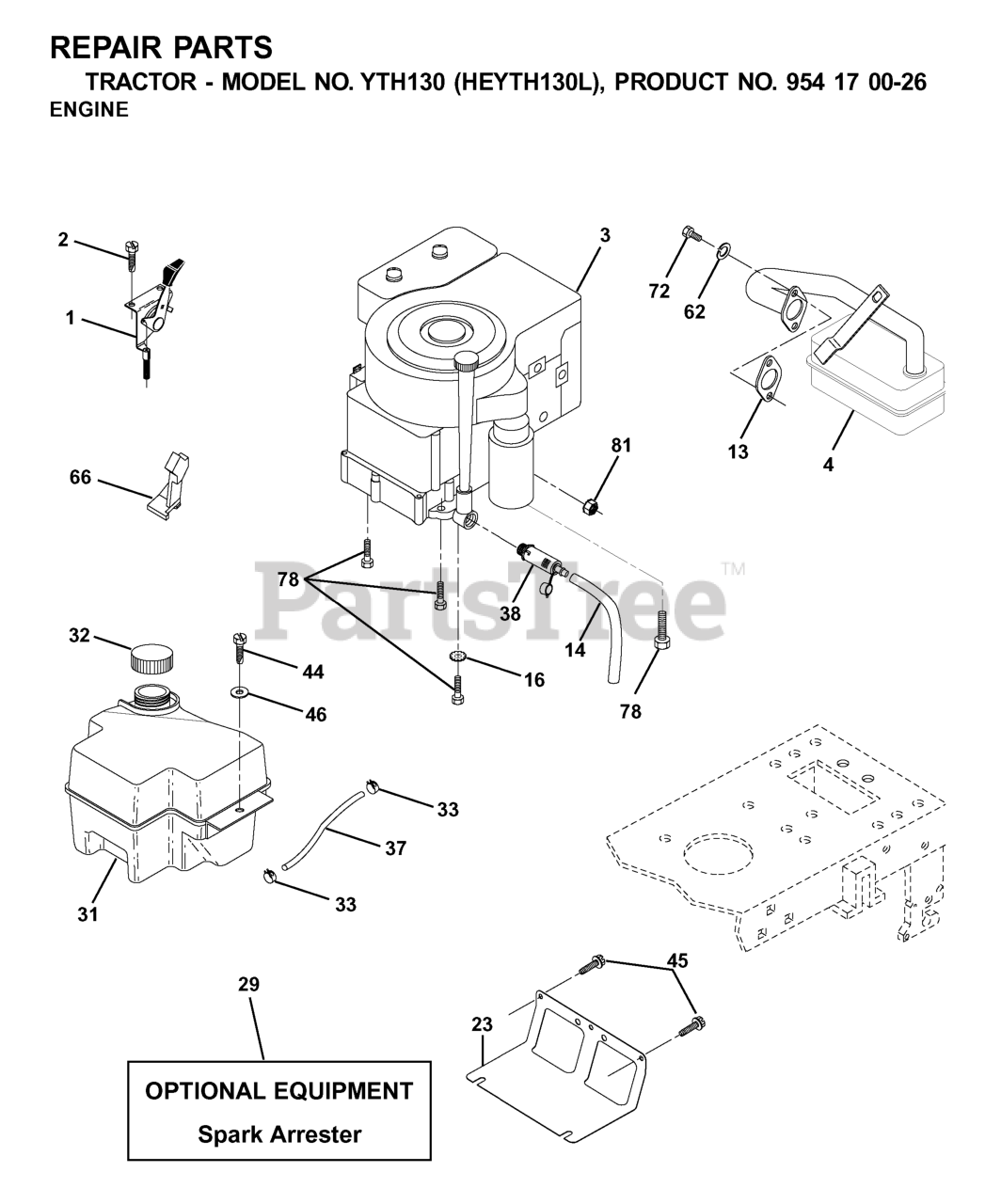

ENGINE & CUTTING EQUIPMENT Parts Diagram

  • Title

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

31

Husqvarna 532174642

TANK, 2GAL
(Superseded to 532180645)

$

$

Not available

46

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

81

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

38

Husqvarna 532148315

PLUG, OIL DRAIN EASY
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

78

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

62

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

2

Husqvarna 817720410

SCREW LT
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 3 left!

0

4

Husqvarna 532137348

MUFFLER.SINGLE.B&S.10-12HP

$102.99

$

In Stock, only 1 left!

0

16

Husqvarna 811050600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 17

0

72

Husqvarna 871070512

SCREW
(Superseded to 532192334)

$

$

Not available

13

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

1

Husqvarna 532170865

THROTTLE.CONTROL.CABLE.BLACK

$27.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532127951

STOP THROTTLE

$

$

Not available

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0
