YTH 130 (954170026-L) - Husqvarna Yard Tractor (2001-02) Engine Parts Diagram

Yard Tractor

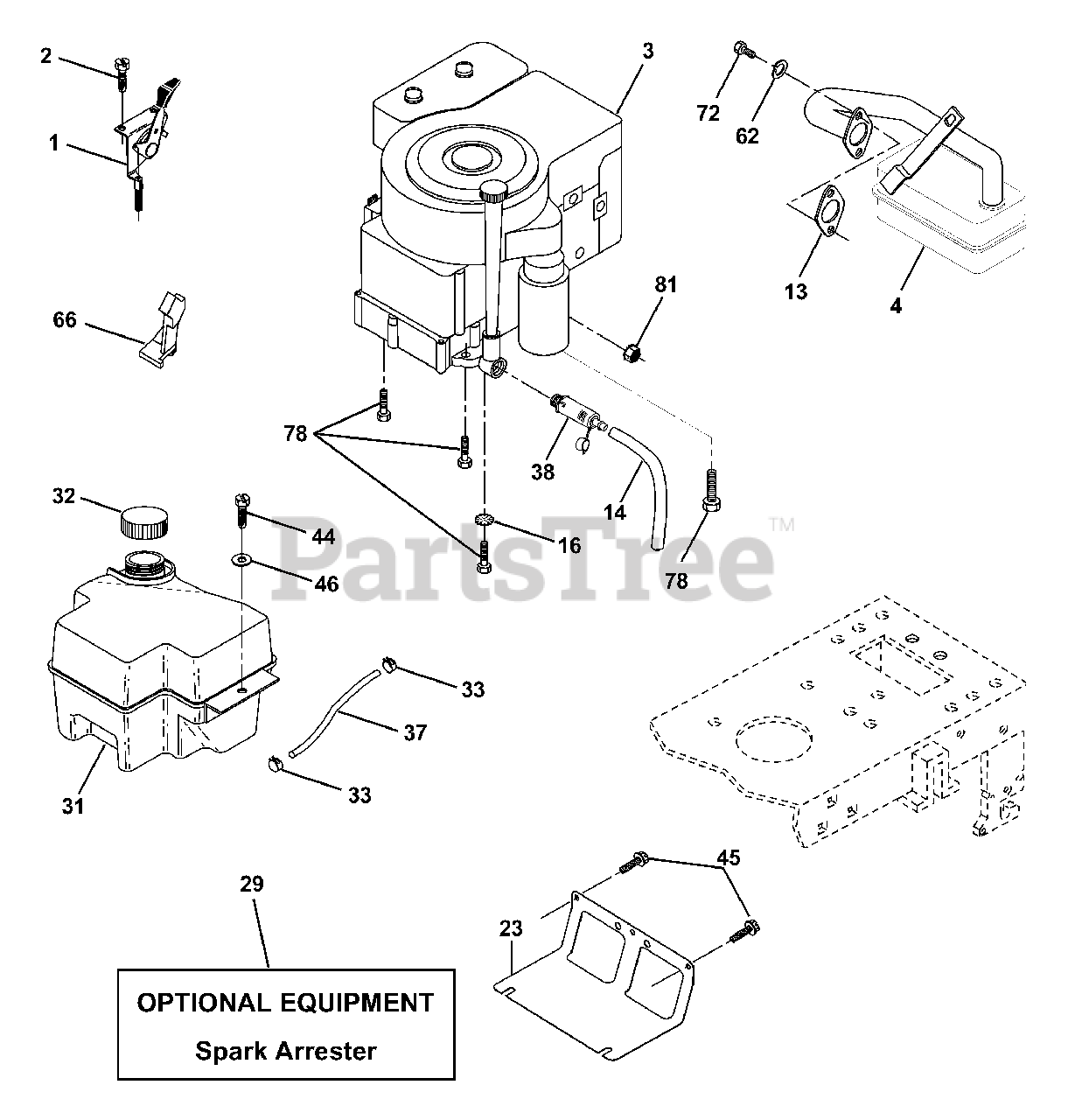

Engine Parts Diagram

  • Title

1

Husqvarna 532170865

Control Th/ch Flag

$27.99

$

Usually ships in 3-10 days

0

2

Husqvarna 817720410

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

3

Engine B&S Model No. 28R707

Note: (Order Parts From Engine Manufacturer)

$

$

Not available

4

Husqvarna 532137348

Muffler LT B&S 12/12.5/13HP

$102.99

$

In Stock, only 1 left!

0

13

Husqvarna 532165291

Gasket Eng 1 313 Id Tin Plated
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, only 3 left!

0

16

Husqvarna 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 17

0

23

Husqvarna 532169837

Shield Browning/Debris Guard

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Kit Spark Arrestor (Flat Scrn)

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532174642

Tank Fuel Front 2 00
(Superseded to 532180645)

$

$

Not available

32

Husqvarna 532140527

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Clamp Hose Black

$7.49

$

In Stock, only 1 left!

0

37

Husqvarna 532137040

Line Fuel 20"
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

38

Husqvarna 532148315

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

44

Husqvarna 817670412

Screw Hexwsh Thdrol 1/4-20x3/4

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 817000612

Screw Hex Wsh Thdr 3/8-16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

46

Husqvarna 819091416

Washer 9/32 X 7/8 X 16 Ga

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 810040500

Washer Lock Hvy Hlcl Spr 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

66

Husqvarna 532127951

Stop Throttle 3000 RPM

$

$

Not available

72

Husqvarna 871070512

Screw Hexhd Cap 5/16-18x 3/4
(Superseded to 532192334)

$

$

Not available

78

Husqvarna 817060620

Screw 3/8-16x1-1/4 Smgml Tap/R

$7.49

$

In Stock, Qty 11

0

81

Husqvarna 873510400

Nut Keps Hex 1/4-20 Starter Nut
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0
