YTH 130 (954170006-G) - Husqvarna Yard Tractor (1998-12) MOWER DECK / CUTTING DECK Parts Diagram

Yard Tractor

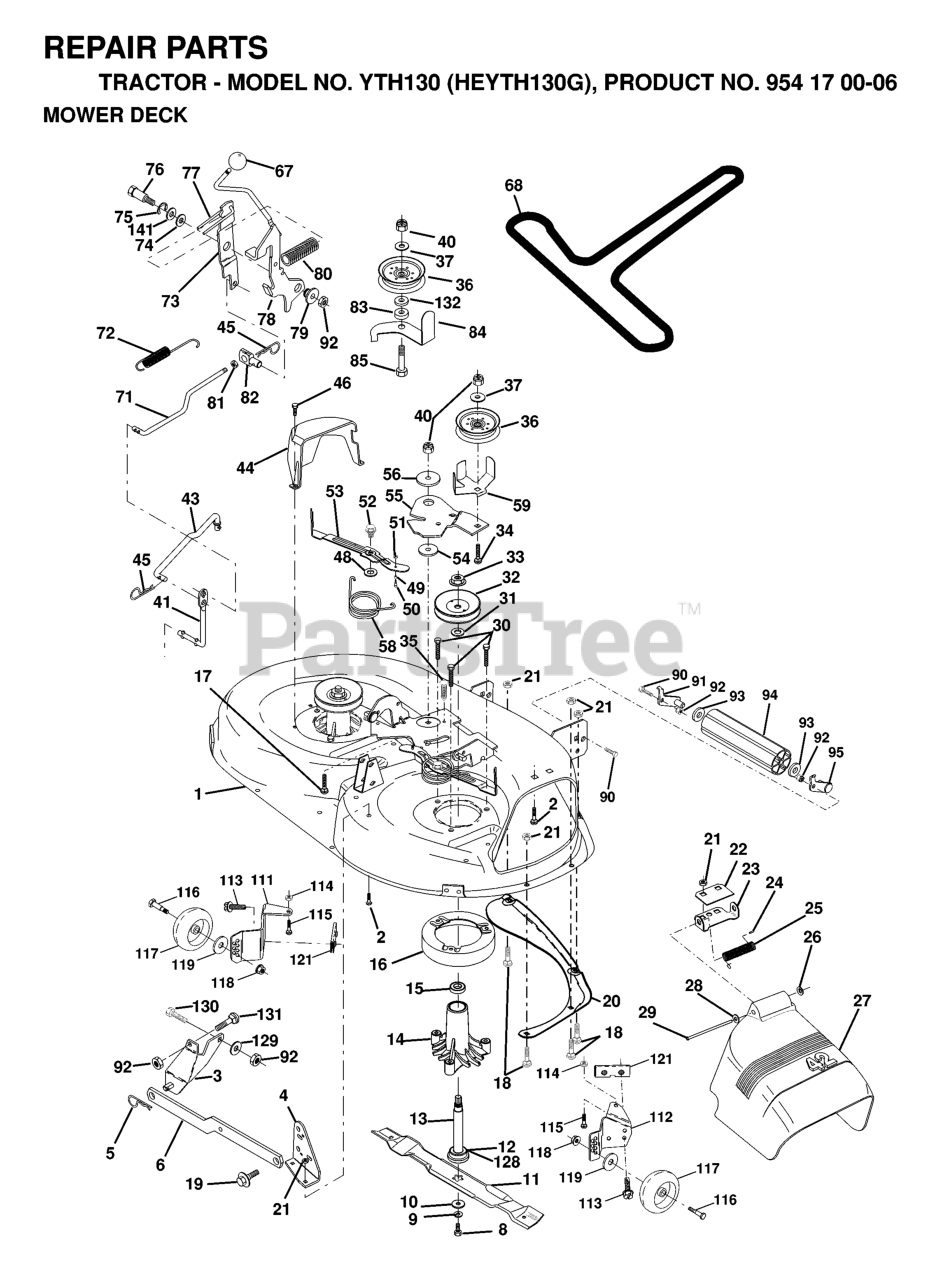

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 3 left!

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532164962

HOUSING

$

$

Not available

43

Husqvarna 532140083

CLUTCH ROD

$

$

Not available

130

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 14

0

33

Husqvarna 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

55

Husqvarna 532155046

ARM IDLER 42" MOWER LT/YT
(Superseded to 531166601)

$17.99

$

Usually ships in 3-10 days

0

90

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

54

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

132

Husqvarna 819132203

Washer 13/32 x 1-3/8 x 13 Ga.

$6.49

$

In Stock, only 3 left!

0

115

Husqvarna 872110504

BOLT.CARR.5/16-18X1/2
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

68

Husqvarna 531005086

BELT

$

$

Not available

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

84

Husqvarna 532156084

KEEPER.BELT.IDLER

$6.49

$

Usually ships in 3-10 days

0

75

Husqvarna 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532153701

SPRING-CLUTCH (2 2 PW01)

$

$

Not available

112

Husqvarna 532155198

BRACKET WHEEL GAUGE RH 42" DK
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

51

Husqvarna 532069180

LOCKNUT

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

121

Husqvarna 532143723

BRACKET.EXTRUDED.GAGE.WHEEL

$

$

Not available

117

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 20+

0

53

Husqvarna 532157388

ARM ASM PAD BRAD
(Superseded to 532131845)

$14.99

$

Usually ships in 3-10 days

0

114

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

94

Husqvarna 532132264

NOSE ROLLER

$44.99

$

In Stock, Qty 20+

0

44

Husqvarna 532140088

GUARD MANDREL LH BLACK

$34.99

$

In Stock, Qty 10

0

76

Husqvarna 532128903

BOLT

$6.99

$

In Stock, only 2 left!

0

25

Husqvarna 532123713

SPRING TORSION

$7.99

$

In Stock, only 1 left!

0

20

Husqvarna 532159770

BAFFLE.VORTEX

$

$

Not available

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532131267

DEFLECTOR BRACKET
(Superseded to 532177563)

$

$

Not available

95

Husqvarna 532132273

BRACKET RH (B)
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

71

Husqvarna 532142427

CLUTCH ROD
(Superseded to 532142655)

$

$

Not available

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

92

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 872110610

BOLT
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532133835

FASTENER.XMAS.TREE

$7.49

$

Usually ships in 3-10 days

0

131

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

Usually ships in 3-10 days

0

111

Husqvarna 532155197

BRACKET WHEEL GAUGE LH 42" DK
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

16

Husqvarna 532140329

STRIPPER
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

93

Husqvarna 819171416

Washer 1 17/32 X 7/8 X 16 Ga

$4.99

$

In Stock, Qty 8

0

3

Husqvarna 532138017

BRKT ASM SWAY BAR

$12.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532142028

TRUNNION.ADJUSTABLE.3/8-16

$

$

Not available

52

Husqvarna 532139888

BOLT.SHOULDER.5/16-18

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 532130832

REAR SUSP ARM
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

- -

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

$56.99

$

In Stock, Qty 5

0

83

Husqvarna 532120958

WASHER

$

$

Not available

67

Husqvarna 532162132

KNOB.CONTROL.7/16

$7.49

$

Usually ships in 3-10 days

0

72

Husqvarna 532131870

RETURN SPRING

$18.99

$

In Stock, only 1 left!

0

73

Husqvarna 532127847

ARM CLUTCH SECONDARY

$2.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532140086

SPRING

$6.49

$

In Stock, only 1 left!

0

30

Husqvarna 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 532155066

ROLLER ASSY
(Superseded to 532174284)

$10.99

$

In Stock, only 4 left!

0

74

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 532133944

WASHER

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

85

Husqvarna 872140618

BOLT
(Superseded to 872110618)

$6.49

$

In Stock, only 2 left!

0

45

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

36

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

128

Husqvarna 532153390

WASHER FELT

$6.49

$

In Stock, only 3 left!

0

12

Husqvarna 532129895

BEARING.BALL.#6204.(MANDREL)

$11.99

$

In Stock, Qty 20+

0

34

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

77

Husqvarna 532127845

KEEPER SPRING

$

$

Not available

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$3.99

$

Usually ships in 3-10 days

0

116

Husqvarna 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

78

Husqvarna 532160570

CLUTCH LEVER ASSY

$

$

Not available

91

Husqvarna 532132274

BRACKET LH (A)
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

1

Husqvarna 532164961

DECK 42"
(Superseded to 532176031)

$319.99

$

Usually ships in 3-10 days

0

113

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 532133551

PIVOT ROD

$8.99

$

In Stock, only 1 left!

0

4

Husqvarna 532138440

BRKT DECK SW BAR

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532134753

STIFFENER BRACKET
(Superseded to 532177563)

$

$

Not available

129

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

40

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532127498

BUSHING.FLANGE.E-RING.GROOVE

$

$

Not available

27

Husqvarna 532130968

SHIELD.DEFLECTOR.MOWER.42".BLK

$39.99

$

In Stock, Qty 9

0

56

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

50

Husqvarna 532131340

BOLT

$

$

Not available

11

Husqvarna 531005085

BLADE 42", YTH 160
(Superseded to 532134149)

$

$

Not available
