YTH 120 AR - Electrolux/AYP Lawn Tractor CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

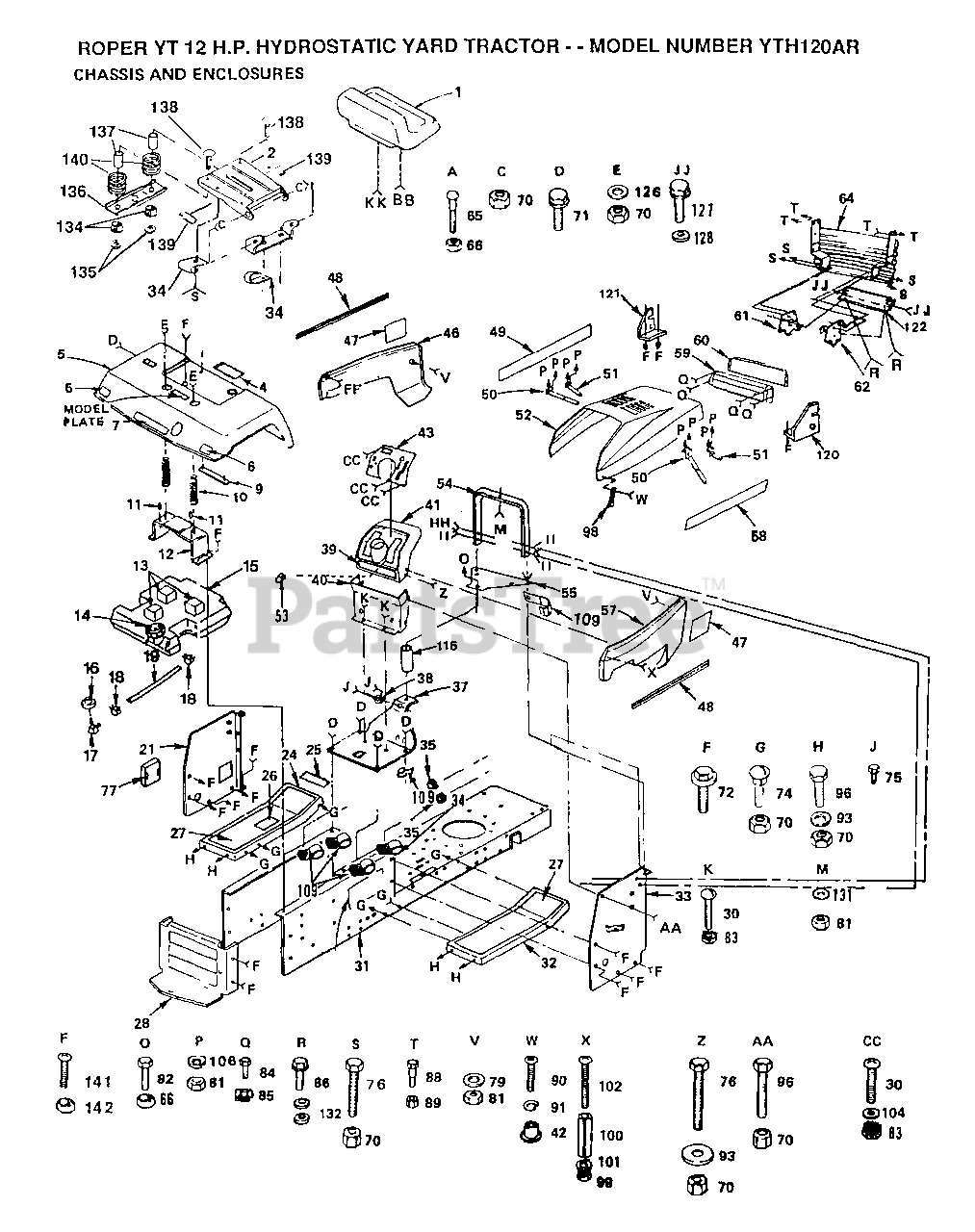

CHASSIS AND ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 121442X

SUB= 140119

$

$

Not available

2

Electrolux/AYP 121247X

SUB= 155925

$

$

Not available

4

Electrolux/AYP 120822X

DECAL
(Superseded to 532120822)

$

$

Not available

5

Electrolux/AYP 121642X

NOTFOUND

$

$

Not available

6

Electrolux/AYP 106202X

REFLECTOR-TAIL YT
(Superseded to 532106202)

$

$

Not available

7

Electrolux/AYP 121586X

NLA

$

$

Not available

9

Electrolux/AYP 105511X

SUB= 140675

$

$

Not available

10

Electrolux/AYP 121067X

SPRING T

$

$

Not available

11

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 105508X

BRKT FENDER T

$

$

Not available

13

Electrolux/AYP 6431J

PAD-SPACER T
(Superseded to 532106082)

$

$

Not available

14

Electrolux/AYP 121221X

SUB= 158990

$

$

Not available

15

Electrolux/AYP 106020X

SUB= 151346

$

$

Not available

16

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 8710J

FUEL TANK STEM GT

$

$

Not available

18

Electrolux/AYP 6999R

SUB= 123487X

$

$

Not available

19

Electrolux/AYP 5277J

SUB= 8543R

$

$

Not available

21

Electrolux/AYP 105523X

DASH PANEL T
(Superseded to 124118X)

$

$

Not available

24

Electrolux/AYP 105465X

SUB= 145244X417

$

$

Not available

25

Electrolux/AYP 101892X

DECAL T
(Superseded to 532101892)

$

$

Not available

26

Electrolux/AYP 108682X

NLA
(Superseded to 532108682)

$

$

Not available

27

Electrolux/AYP 109864X

SUB= 108256X

$

$

Not available

28

Electrolux/AYP 121306X

SUB= 127866
(Superseded to 127866)

$

$

Not available

30

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

31

Electrolux/AYP 121278X

CHASSIS

$

$

Not available

32

Electrolux/AYP 105464X

SUB= 145243X417

$

$

Not available

33

Electrolux/AYP 110828X

SUB= 133748

$

$

Not available

34

Electrolux/AYP 4171R

CLIP T

$

$

Not available

35

Electrolux/AYP 110436X

SUB= 9151R

$

$

Not available

37

Electrolux/AYP 121195X

SADDLE
(Superseded to 121195X014)

$

$

Not available

38

Electrolux/AYP 1554J

SUB= 155108

$

$

Not available

39

Electrolux/AYP 109820X

DECAL YT
(Superseded to 532109820)

$

$

Not available

40

Electrolux/AYP 104805X

LOWER DASH
(Superseded to 532104805)

$

$

Not available

41

Electrolux/AYP 121312X

DASH

$

$

Not available

42

Electrolux/AYP 2029J

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 121723X012

PLATE DASH

$

$

Not available

46

Electrolux/AYP 108372X388

SUB= 150302X505

$

$

Not available

47

Electrolux/AYP 121654X

NLA

$

$

Not available

48

Electrolux/AYP 121589X

NLA

$

$

Not available

49

Electrolux/AYP 121587X

NLA

$

$

Not available

50

Electrolux/AYP 106784X

SUB= 155013

$

$

Not available

51

Electrolux/AYP 104618X

SUB= 155013

$

$

Not available

52

Electrolux/AYP 108370X388

SUB= 150301X505

$

$

Not available

53

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 110829X

SUB= 124130X

$

$

Not available

55

Electrolux/AYP 106965X

SUB= 140181

$

$

Not available

57

Electrolux/AYP 108371X388

SUB= 140679X505

$

$

Not available

58

Electrolux/AYP 121588X

NLA

$

$

Not available

59

Electrolux/AYP 104613X

SUB= 147717
(Superseded to 583678801)

$

$

Not available

60

Electrolux/AYP 106395X

LENS LT
(Superseded to 583650801)

$37.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 110855X

SUPPORT LH YTH
(Superseded to 532110855)

$

$

Not available

62

Electrolux/AYP 110854X

SUPPORT RH YTH

$

$

Not available

64

Electrolux/AYP 122100X

GRILL ASSY

$

$

Not available

65

Electrolux/AYP 105529X

SUB= 139888
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

66

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

70

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

74

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

75

Electrolux/AYP 17431008

SUB= 98000165

$

$

Not available

76

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

79

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

82

Electrolux/AYP 74760532

BOLT
(Superseded to 874760532)

$2.99

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 17211010

SCREW LT

$2.49

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 104755X

"""J"" FASTENER LT"

$2.99

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 7605J

BOLT T
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

90

Electrolux/AYP 74191008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 10071000

LOCKWASHER
(Superseded to 810071000)

$4.99

$

In Stock, Qty 14

0

93

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

96

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 2 left!

0

98

Electrolux/AYP 109808X

HOOD LATCH T
(Superseded to 532109808)

$6.99

$

In Stock, Qty 15

0

99

Electrolux/AYP 73731000

NUT

$2.49

$

Usually ships in 3-10 days

0

100

Electrolux/AYP 7206J

SPACER LT
(Superseded to 532007206)

$7.49

$

In Stock, Qty 8

0

101

Electrolux/AYP 19070818

WASHER
(Superseded to 532004802)

$2.99

$

Usually ships in 3-10 days

0

102

Electrolux/AYP 74981020

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 10

0

104

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

106

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

109

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

116

Electrolux/AYP 121236X

SPACER
(Superseded to 532121236)

$

$

Not available

120

Electrolux/AYP 110853X

SUPPORT RH YTH
(Superseded to 532110853)

$

$

Not available

121

Electrolux/AYP 110852X

SUPPORT LH YTH
(Superseded to 532110852)

$

$

Not available

122

Electrolux/AYP 105419X

STRAP GRILL
(Superseded to 144916X428)

$

$

Not available

126

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

127

Electrolux/AYP 17190412

SCREW
(Superseded to 817190412)

$

$

Not available

128

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

131

Electrolux/AYP 11050400

LOCKWASHER

$2.49

$

Usually ships in 3-10 days

0

132

Electrolux/AYP 19111212

WASHER
(Superseded to 819111212)

$3.99

$

In Stock, Qty 18

0

134

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

135

Electrolux/AYP 73900400

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

136

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

137

Electrolux/AYP 121249X

SPACER SPLIT
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

138

Electrolux/AYP 72170410

BOLT
(Superseded to 872170410)

$4.99

$

Usually ships in 3-10 days

0

139

Electrolux/AYP 121251

SUB= 121251X

$

$

Not available

140

Electrolux/AYP 121250

SUB= 121250X

$

$

Not available

141

Electrolux/AYP 74641008

SUB= 71031008

$

$

Not available

142

Electrolux/AYP 73951000

"NUT,KEPS"
(Superseded to 873951000)

$5.99

$
