YTH 1120-14 - Husqvarna Yard Tractor (1990-01) Transaxle And Pump Assembly Parts Diagram

Yard Tractor

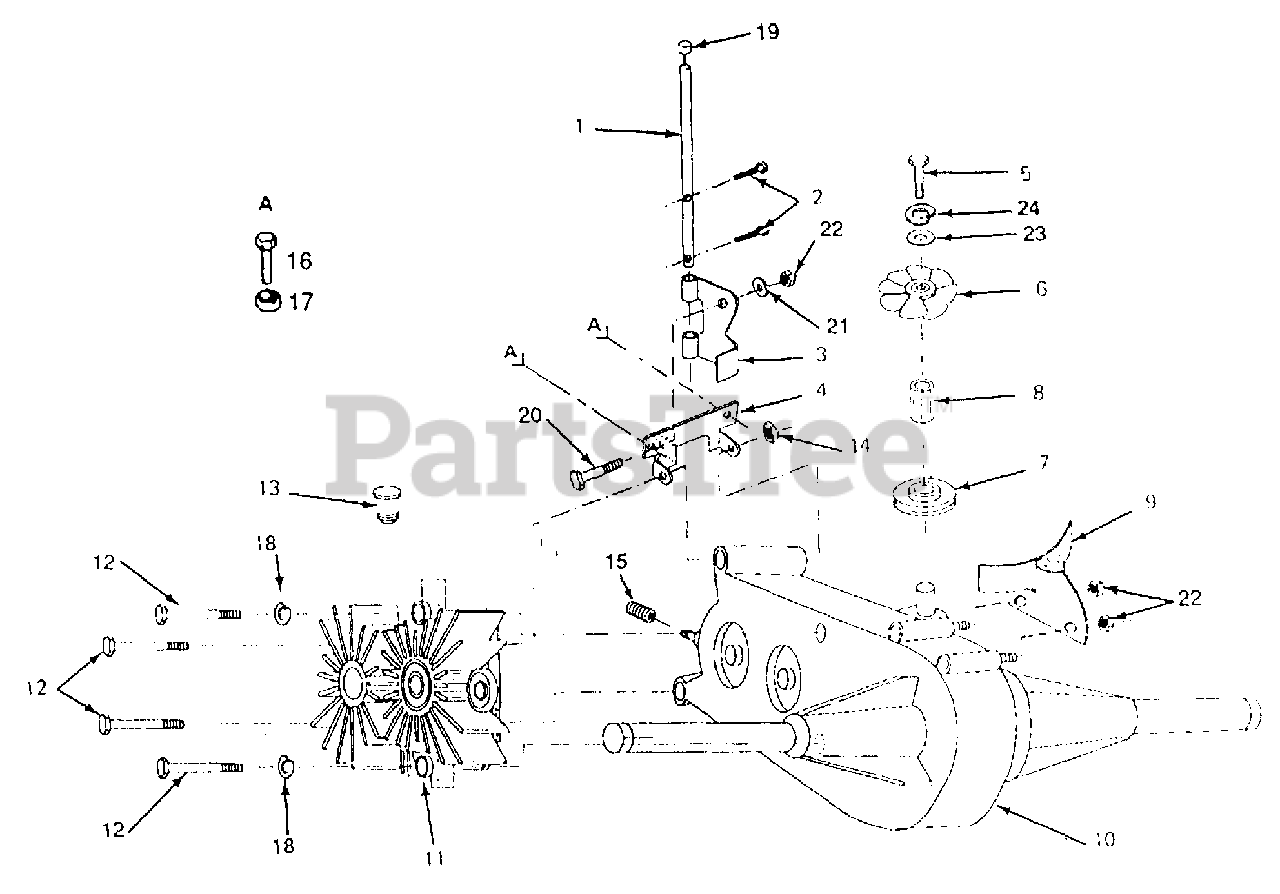

Transaxle And Pump Assembly Parts Diagram

  • Title

1

Husqvarna 532121192

Rod, Free Wheel Control
(Superseded to 532123634)

$

$

Not available

2

Pin, Cotter 3/32 x 3/4

$

$

Not available

3

Husqvarna 532121193

Control, Coast
(Superseded to 532123634)

$

$

Not available

4

Husqvarna 532121188

Bracket, Pnt. Mounting Differential

$

$

Not available

5

Bolt, Hex Hd.1/4" - 20 UNC x 3/4

$

$

Not available

6

Husqvarna 532121186

Fan, Hydro 8"

$

$

Not available

7

Husqvarna 532121180

Pulley, Transaxle

$

$

Not available

8

Husqvarna 532121211

Standoff, Fan Hydro

$

$

Not available

9

Husqvarna 532121182

Guard Assembly, Belt

$

$

Not available

10

Differential Assembly

$

$

Not available

11

Pump Assembly

$

$

Not available

12

Bolt, Hex Fin. 5/16- 18 UNC x 4.5

$

$

Not available

13

Husqvarna 532121323

Reservoir Pump
(Superseded to 506774701)

$

$

Not available

14

Nut, Crown Lock 5/16 - 18

$

$

Not available

15

Husqvarna 532121250

Spring, Compression

$7.49

$

Usually ships in 3-10 days

0

16

Bolt, 3/8 - 16 x 3/4

$

$

Not available

17

Nut 3/8 - 16 UNC

$

$

Not available

18

Lockwasher

$

$

Not available

19

Husqvarna 532124236

Cap
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532124815

Bolt shoulder 1/4 - 20 UNC
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532120529

Washer, nylon

$2.99

$

Usually ships in 3-10 days

0

22

Nut, Crown lock 1/4 - 20 UNC

$

$

Not available

23

Washer 9/32 x 1 - 1/4 x 16 ga.

$

$

Not available

24

Lockwasher, 1/4

$

$

Not available
