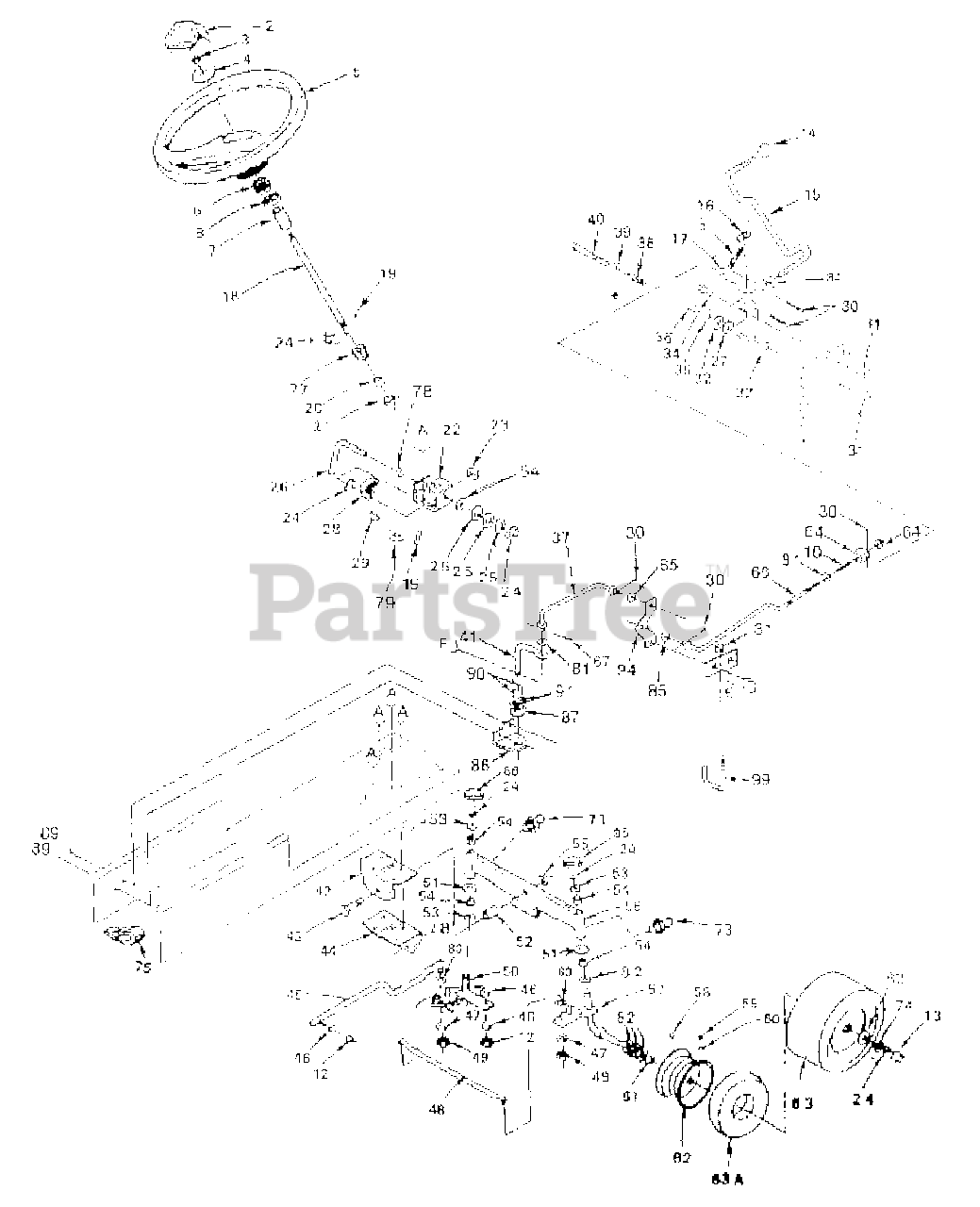

YTH 1120-14 - Husqvarna Yard Tractor (1990-01) Steering Assembly Parts Diagram

Yard Tractor

Steering Assembly Parts Diagram

  • Title

2

Husqvarna 532124416

Insert - Steering Wheel

$

$

Not available

3

Nut, Hex 3/4 - 16

$

$

Not available

4

Husqvarna 532100712

Washer

$

$

Not available

5

Husqvarna 532124415

Wheel Steering

$

$

Not available

6

Husqvarna 532100711

Adapter - Steering Wheel
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

7

UNKNOWN

$

$

Not available

8

UNKNOWN

$

$

Not available

10

Husqvarna 532102670

Spring - Compression

$

$

Not available

12

Husqvarna 873610600

Nut, Fin Hex 3/8 - 24 UNF
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532124577

Cap- Hub- Front

$

$

Not available

14

Husqvarna 532121274

Knob.Gear Shift

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110845

Rod - Control

$8.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532121631

Spring - Torsion

$

$

Not available

17

Husqvarna 532108196

Bracket - Control Rod

$

$

Not available

18

Husqvarna 532109557

Shaft - Steering

$

$

Not available

19

Husqvarna 532002882

Pin - Drive 3/16 x 1
(Superseded to 532001572)

$4.99

$

In Stock, Qty 7

0

20

Husqvarna 532074580

Spacer

$

$

Not available

21

Husqvarna 532071208

Bushing

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532109432

Bracket - Steering
(Superseded to 532110150)

$

$

Not available

23

Washer 21/32 x 1 - 1/4 x 16 Ga.

$

$

Not available

24

Husqvarna 812000029

Klip Ring

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532006266

Bearing - Thrust

$7.49

$

In Stock, Qty 11

0

26

Husqvarna 532108683

Rod - Steering

$

$

Not available

27

Husqvarna 532108972

Washer- Phenolic

$

$

Not available

28

Husqvarna 532108684

Gear - Sector

$

$

Not available

29

Husqvarna 532106126

Key-Woodruff

$

$

Not available

30

Pin - Cotter 1/8 x 3/4

$

$

Not available

31

Nut - Lock 3/8 - 16

$

$

Not available

32

Husqvarna 532108200

Washer- Friction

$

$

Not available

33

Washer 13/32 x 13/16 x 12 Ga.

$

$

Not available

34

Husqvarna 532108518

Bolt - Hex Shoulder 3/8 - 16 x 1 -3/8

$

$

Not available

35

Washer 21/32 x 1 - 1/4 x 16 Ga.

$

$

Not available

36

Husqvarna 532108201

Spacer

$

$

Not available

37

Husqvarna 532121202

Link - Control

$

$

Not available

38

Husqvarna 532108844

Spring - Compression

$

$

Not available

39

Washer 13/32 x 1 - 1/4 x 12Ga.

$

$

Not available

40

Bolt- Hex 3/8 - 16x3

$

$

Not available

41

Husqvarna 532121209

Lever - Pump Control

$

$

Not available

42

Husqvarna 532105663

Support - Saddle - Rear

$

$

Not available

43

Bolt Hex 5/8 - 11 x 3 -3/4

$

$

Not available

44

Husqvarna 532105664

Support. Saddle. Front

$9.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532105727

Link Drag

$

$

Not available

46

Lockwasher 3/8

$

$

Not available

47

Washer - Lock 5/16

$

$

Not available

48

Husqvarna 532121334

Rod-Tie
(Superseded to 532170162)

$93.99

$

In Stock, only 4 left!

0

49

Husqvarna 873810500

Nut- Hex 5/16- 24
(Superseded to 873610500)

$

$

Not available

50

Husqvarna 532105656

Spindle L.H.
(Superseded to 532156483)

$26.99

$

Usually ships in 3-10 days

0

51

Washer 27/32 x 1 - 1/4 x 16 Ga.

$

$

Not available

52

Husqvarna 532110438

Spacer
(Superseded to 532155134)

$

$

Not available

53

Husqvarna 532124931

Hardened Washer
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

54

Husqvarna 532003366

Bearing

$4.99

$

In Stock, Qty 20+

0

55

Nut - Lock Flange 5/8-11

$

$

Not available

56

Husqvarna 532108075

Axle. Front

$

$

Not available

57

Husqvarna 532105654

Spindle - R H
(Superseded to 532130524)

$

$

Not available

58

Husqvarna 532000278

Fitting- Grease

$6.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532065139

Stem - Valve

$9.99

$

In Stock, only 3 left!

0

60

Husqvarna 532059192

Cap - Valve

$7.49

$

In Stock, Qty 9

0

61

Husqvarna 532009040

Bearing

$7.99

$

In Stock, Qty 20+

0

62

Husqvarna 532106732

Rim 6" Front

$91.99

$

In Stock, Qty 5

0

63

Husqvarna 532106222

Tire- Front
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

63A

Husqvarna 532059904

Tube Tire Front

Note: (not furnished with tractor)

$37.99

$

In Stock, Qty 7

0

64

Nut - Hex Jam 3/8 - 16

$

$

Not available

65

Husqvarna 532108212

Trunnion

$18.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532121750

Rod - Adjustable Control

$47.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532004497

Clip, Hairpin

$9.99

$

In Stock, Qty 12

0

69

Bolt-Hex 3/8-16x1-1/2

$

$

Not available

70

Screw- Hex Washer Thread Rolling 318- 16x3/4

$

$

Not available

71

Screw - Hex Washer Thread Rolling 5/16 - 18 x 1/2

$

$

Not available

73

Husqvarna 532006855

Fitting - Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

74

Husqvarna 532121748

Washer 25/32 x 1 - 5/8 x 16 Ga.

$4.99

$

In Stock, Qty 20+

0

75

Husqvarna 532005320

Clip-Insulated

$5.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532108685

Gear- Pinion

$

$

Not available

78

Husqvarna 532109816

Nyliner, Snap- In

$6.49

$

In Stock, only 2 left!

0

79

Husqvarna 532101930

Washer- Hardened

$

$

Not available

80

Washer 13/32 x 13/16 x 16 ga.

$

$

Not available

81

Washer 13/32 x 3/4 x 12Ga.

$

$

Not available

82

Husqvarna 532121749

Washer 25/32 x 1 1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

83

Washer 11/32 x 3/4 x 16Ga.

$

$

Not available

84

Washer 15/32 x 15/16 x 16 Ga.

$

$

Not available

85

Husqvarna 532110739

Washer, Spring

$4.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532121232

Spindle.cap.

$4.99

$

In Stock, Qty 9

0

87

Husqvarna 532121217

Guide. Control

$

$

Not available

88

Husqvarna 532121216

Bracket, Control Guide

$

$

Not available

89

Screw, Hex Washer Thd Rol 5/16 -18 x 3/4 TYTT

$

$

Not available

90

Husqvarna 817021008

Screw, Tap Hex Hd. #10 - 24 UNC x 1/2TY-T

$4.99

$

In Stock, Qty 14

0

91

Washer 7/32 x 1/2 x 16 Ga.

$

$

Not available

92

Husqvarna 871011012

Bolt,10-24x3/4

$

$

Not available

93

Husqvarna 873661000

Nut,10-24

$

$

Not available

94

Husqvarna 532121204

Bellcrank

$

$

Not available

95

Husqvarna 532121206

Bracket, Bellcrank Pivot

$

$

Not available

96

Husqvarna 532100536

Bolt, Shoulder

$

$

Not available

97

Bolt, Fin Hex 3/8 UNC - 16 x 3/4

$

$

Not available

98

Nut - Lock 5/16 - 18

$

$

Not available

99

Husqvarna 532121190

Keeper, Centerspan

$

$

Not available
