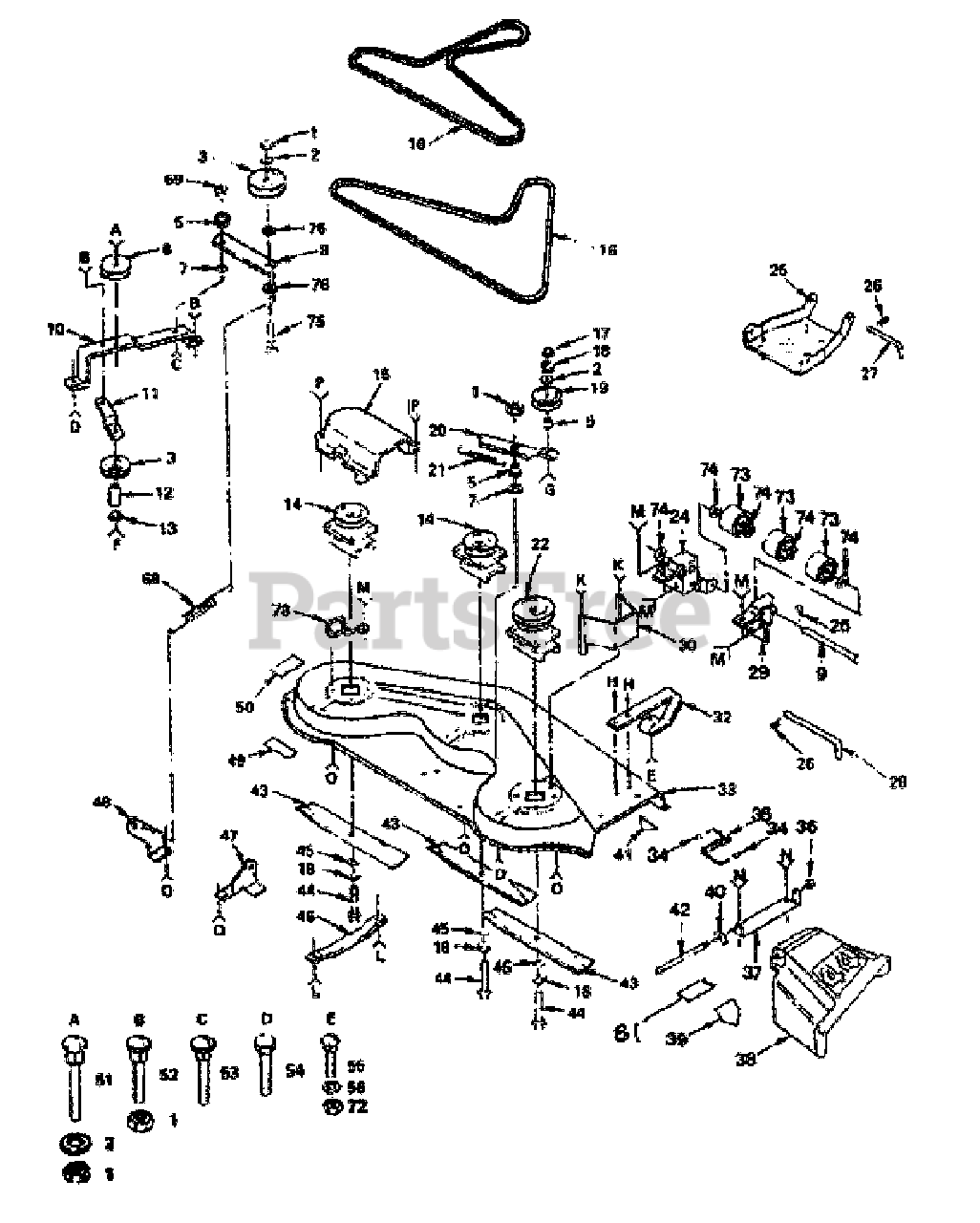

YTH 1120-14 - Husqvarna Yard Tractor (1990-01) Mower Parts Diagram

Yard Tractor

Mower Parts Diagram

  • Title

1

Nut, Lock 3/8-16

$

$

Not available

2

Washer, 13/32 x 1 x 14 Ga.

$

$

Not available

3

Husqvarna 532121316

Pulley, Idler

$51.99

$

In Stock, only 4 left!

0

5

Husqvarna 532106902

Spacer

$2.99

$

In Stock, only 2 left!

0

6

Husqvarna 532124858

Pulley, Idler, Inside

$

$

Not available

7

Husqvarna 532106513

Washer, Wear

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 532121425

Arm, Idler

$

$

Not available

9

Husqvarna 532109776

Pin, Pivot

$8.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532106523

Bar, Support, Idler

$

$

Not available

11

Husqvarna 532106522

Brace, Idler, Deck

$2.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532121236

Spacer

$

$

Not available

13

Washer, 13/32 x 13/16 x 16 Ga

$

$

Not available

14

Husqvarna 532121658

Mandrel, Secondary
(Superseded to 532136819)

$

$

Not available

15

Husqvarna 532106214

Guard

$

$

Not available

16

Husqvarna 532106085

V-Belt

$43.99

$

Usually ships in 3-10 days

0

17

Nut, Hex 3/8-16

$

$

Not available

18

Washer, Lock, 3/8

$

$

Not available

19

Husqvarna 532102932

Idler, Flat

$30.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532106526

Arm, Idler, Deck

$18.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532124885

Spring, Extension
(Superseded to 532007644)

$

$

Not available

22

Husqvarna 532121705

Mandrel, Primary

$

$

Not available

24

Husqvarna 532109599

Bracket, Lift, L.H.

$

$

Not available

25

Husqvarna 532105662

Link, Parallel

$

$

Not available

26

Husqvarna 532004921

Retainer, Spring

$6.49

$

In Stock, only 2 left!

0

27

Husqvarna 532105744

Pin, Front Hinge

$

$

Not available

28

Husqvarna 532109835

Pin, Rear Hinge

$

$

Not available

29

Husqvarna 532109600

Bracket, Lift, R.H.

$

$

Not available

30

Husqvarna 532108119

Guard, Belt, R.H.

$

$

Not available

32

Husqvarna 532124950

Runner, R,H,
(Superseded to 532136321)

$

$

Not available

33

Husqvarna 532121423

Housing, Mower
(Superseded to 532144729)

$

$

Not available

34

Husqvarna 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532106734

Spring
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

36

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532109743

Bracket, Deflector
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

38

Husqvarna 532109785

Guard, Carriage

$30.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532126192

Decal, Danger

$17.99

$

Usually ships in 3-10 days

0

40

Washer, 11/32 x 5/8 x 16Ga.

$

$

Not available

41

Husqvarna 532126194

Decal, Caution, Deflector

$17.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532106735

Rod, Hinge

$10.99

$

In Stock, only 1 left!

0

43

Husqvarna 532122265

Blade, Mower, Low, Lift
(Superseded to 532025034)

$

$

Not available

44

Bolt, Hex, 3/8-24 x 1-1/2 Gr.5

$

$

Not available

45

Washer, 13/32 x 1-1/4 x 12Ga.

$

$

Not available

46

Husqvarna 532125074

Runner, L.H.
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532123807

Bracket, Suspension, Rear, R.H.

$

$

Not available

48

Husqvarna 532123808

Bracket, Suspension, Rear, L.H.

$

$

Not available

49

Husqvarna 532108592

Decal, V-Belt, Schematic

$

$

Not available

50

Husqvarna 532105185

Instruction, Caution Decal

$

$

Not available

51

Husqvarna 872140608

Bolt, Carriage 3/8-16UNC x 1/2
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

52

Bolt, Hex Fin. 3/8-16UNC x 1

$

$

Not available

53

Bolt, Carriage 3/8-16UNC x 1-1/2

$

$

Not available

54

Bolt, Hex 3/8-16 x 1 -1/4

$

$

Not available

55

Husqvarna 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

56

Washer, 11/32 x 11/16 x 16 Ga.

$

$

Not available

57

Nut, Lock 5/16-18

$

$

Not available

58

Bolt, Hex 3/8-16 x 3

$

$

Not available

59

Screw, Flat Head 3/8-16 x 2

$

$

Not available

61

Washer, 11/32 x 3/4 x 16 Ga

$

$

Not available

62

Bolt, Hex,5/16-18 x 5

$

$

Not available

65

Husqvarna 872140506

Bolt, Carr., 5/16-18 x 5/8 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

66

Screw, Hex Wsh. Thdrl. 3/8-16 x 3/4

$

$

Not available

67

Husqvarna 872140606

Bolt, Carriage 3/8-16 x 3/8

$

$

Not available

68

Husqvarna 532102727

Spring, Extension

$

$

Not available

69

Nut, Centerlock 3/8-16

$

$

Not available

70

Bolt, Carriage 5/16-18 x 3/8

$

$

Not available

72

Husqvarna 532124949

Nut, Lock 5/16-18

$3.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532109729

Roller, Nose

$

$

Not available

74

Washer, 15/32 x 1 x 10 Ga.

$

$

Not available

75

Husqvarna 872140620

Bolt, Carriage, 3/8-16 x 2-1/2

$3.99

$

Usually ships in 3-10 days

0

76

Washer, 13/32 x 3/4 x 10 Ga.

$

$

Not available

77

Washer, 13/32 x 7/8 x 10 Ga.

$

$

Not available

78

Husqvarna 532121352

Keeper, L.H. Mandrel

$

$

Not available

80

Husqvarna 532126191

Decal, Warning, Swe., Nor., Fin.

$

$

Not available

81

Husqvarna 532126196

Decal, Caution, Knife

$

$

Not available
