YTH 1120-14 - Husqvarna Yard Tractor (1990-01) Electrical Parts Diagram

Yard Tractor

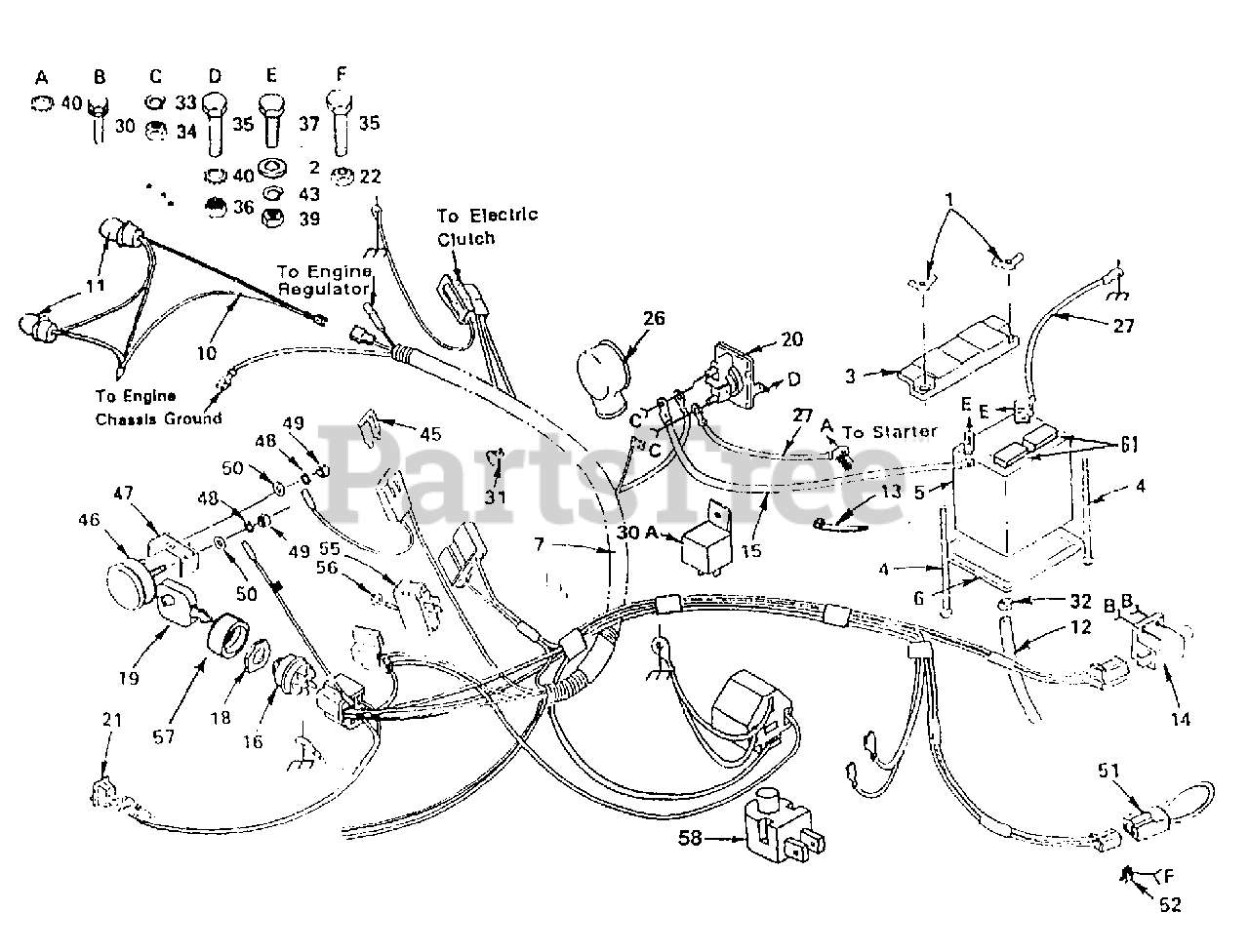

Electrical Parts Diagram

  • Title

1

Husqvarna 532123198

Wing Nut 1/4-20
(Superseded to 532146525)

$

$

Not available

2

Washer 9/32 x 5/8 x 16 Ga

$

$

Not available

3

Husqvarna 532102476

Guard-Terminal
(Superseded to 532150109)

$

$

Not available

4

Husqvarna 872240460

Battery Bolt (Bolt-Carriage,Rd. Hd. Sq. Neck 1/4-20 x 7-1t21

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532121537

Battery
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

6

Husqvarna 532124886

Battery Tray
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532123826

Harness - Ignition

Note: (Includes item 30A)

$

$

Not available

10

Husqvarna 532110859

Harness-Light Socket

$

$

Not available

11

Husqvarna 532007662

Bulb-Light
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

12

Tube-Battery Tray

$

$

Not available

13

Husqvarna 532124756

Cable Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532109553

Switch - Interlock - Clutch
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532124503

Cable-Battery (Battery to Solenoid)

$

$

Not available

16

Husqvarna 532102972

Ignition Switch
(Superseded to 532158913)

$66.99

$

In Stock, only 1 left!

0

18

Husqvarna 532109788

Nut- Ignition
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

19

Husqvarna 532122147

Key

$

$

Not available

20

Husqvarna 532125701

Diode Asm.Zener
(Superseded to 532127385)

$

$

Not available

21

Husqvarna 532110712

Switch-Light

$9.49

$

In Stock, only 4 left!

0

22

Nut - Crownlock 1/4-20

$

$

Not available

26

Husqvarna 532124783

Terminal Cover
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

27

Husqvarna 532124773

Cable-Battery (Battery to Ground)
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

30

Husqvarna 817021008

Screw-Tap. Hex Hd. No.10-24 UNC

$4.99

$

In Stock, Qty 16

0

30A

Husqvarna 532109748

Relay

$30.99

$

In Stock, only 1 left!

0

31

Husqvarna 532124996

Clip-Fuel Line
(Superseded to 532002751)

$

$

Not available

32

Husqvarna 532109596

Clamp-Hose

$4.99

$

Usually ships in 3-10 days

0

33

Washer.Lock.External.Tooth 3/

$

$

Not available

34

UNKNOWN

$

$

Not available

35

Bolt-Hex 1/4-20 x 1/2 Gr.5

$

$

Not available

36

Nut- Keps, Hex 1/4-20

$

$

Not available

37

Bolt-Hex 1/4-20 x 3/4

$

$

Not available

39

Nut-Hex 1/4-20

$

$

Not available

40

Washer-Lock 1/4 Ext. Tooth

$

$

Not available

43

Lockwasher 1/4

$

$

Not available

45

Husqvarna 532108824

Fuse-30 Amp.

$6.49

$

Usually ships in 3-10 days

0

46

UNKNOWN

$

$

Not available

47

UNKNOWN

$

$

Not available

48

Washer.Lock.External.Tooth 3/

$

$

Not available

49

UNKNOWN

$

$

Not available

50

UNKNOWN

$

$

Not available

51

Husqvarna 532102501

Loop-Wire Tiller Attachment

$

$

Not available

52

Husqvarna 532124995

Clip- Insulated

$

$

Not available

55

Husqvarna 532126018

Switch PTO

$

$

Not available

56

Husqvarna 532004022

Nut-Hex

$

$

Not available

57

Husqvarna 532109787

Bezel, Ignition
(Superseded to 584446901)

$7.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532121305

Switch.Plunger
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

61

Husqvarna 532121264

Caps, Battery Set

$

$

Not available

62

Husqvarna 532124524

Light Package

$

$

Not available

63

Husqvarna 532121549

Decal.Battery

$

$

Not available

64

Bolt.Fin.Hex 1/4-20 UNC x 1/2 G

$

$

Not available

65

Bolt.Fin.Hex 3/8-16 UNC x 1

$

$

Not available

Husqvarna 532101539

Sheet - Instruction, Tractor 15° Slope (English)

$

$

Not available

Husqvarna 532125599

Owners Manual (English)

$

$

Not available

Husqvarna 532101572

Sheet, Instruction, Tractor 15° Slope (French)

$

$

Not available

Husqvarna 532120663

Sheet, Instruction, Tractor 15° Slope (German)

$

$

Currently unavailable
