YTH 1120-14 - Husqvarna Yard Tractor (1990-01) Drive Parts Diagram

Yard Tractor

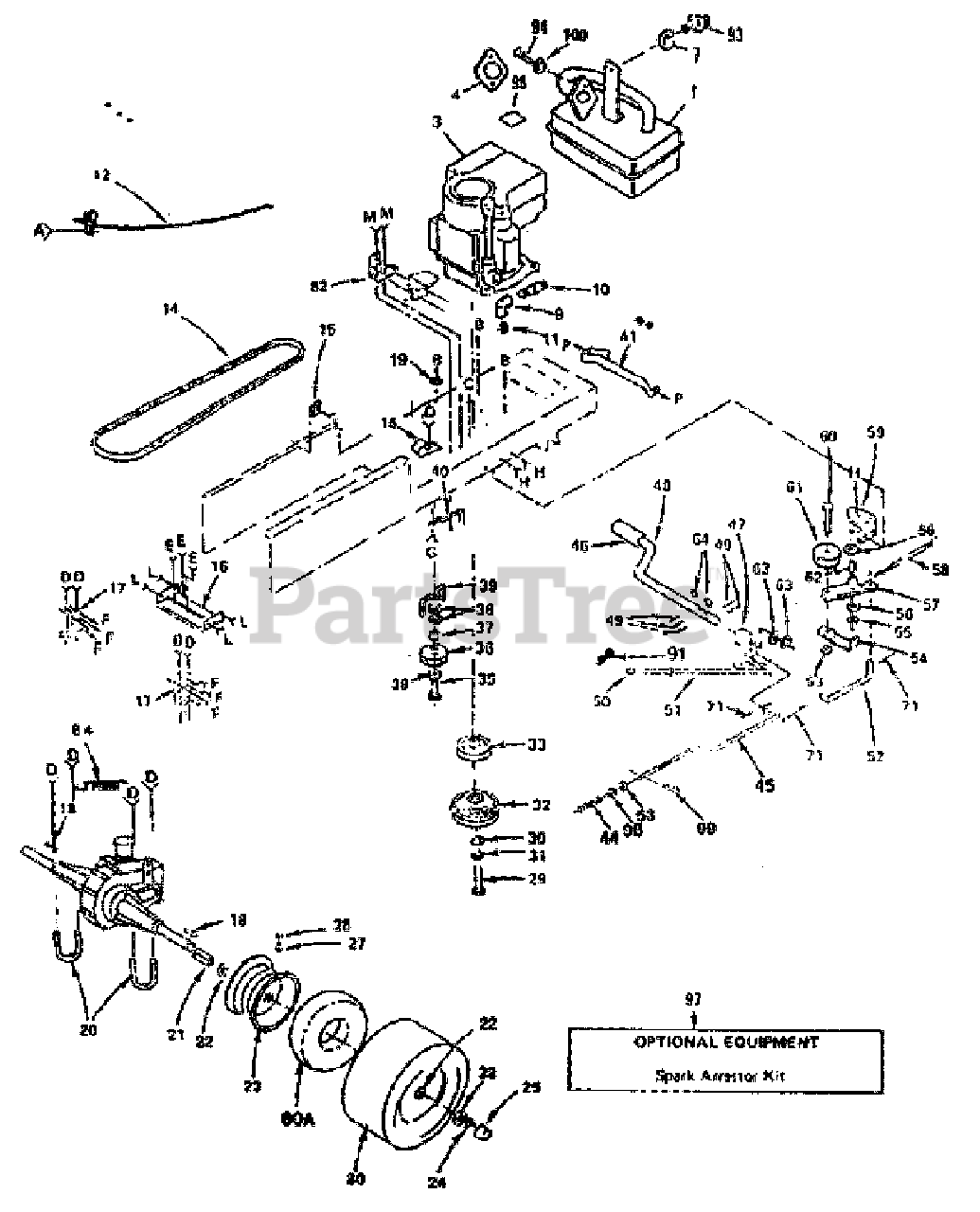

Drive Parts Diagram

  • Title

1

Husqvarna 532125799

Muffler

$

$

Not available

2

Husqvarna 532009151

Grommet

$

$

Not available

3

UNKNOWN

$

$

Not available

4

Husqvarna 532002949

Gasket

$

$

Not available

5

Husqvarna 532101326

Deflector- Exhaust

$

$

Not available

6

Bolt - Hex 1/4- 20 x 1

$

$

Not available

7

Washer, Lock 1/4

$

$

Not available

8

Screw - Hex Hd. No.8 - 32 x 3/8

$

$

Not available

9

UNKNOWN

$

$

Not available

10

UNKNOWN

$

$

Not available

11

UNKNOWN

$

$

Not available

12

Husqvarna 532121527

Control.Throttle/Choke
(Superseded to 532132765)

$

$

Not available

14

Husqvarna 532123461

V-Belt, Drive

$

$

Not available

15

Husqvarna 532124996

Clip
(Superseded to 532002751)

$

$

Not available

16

Husqvarna 532121187

Bracket.Mounting.Hydro T/A

$

$

Not available

17

Husqvarna 532121191

Bracket, Transaxle
(Superseded to 532126649)

$

$

Not available

18

Husqvarna 532124928

Key - Square 1/4 x 2
(Superseded to 532123583)

$4.99

$

In Stock, only 4 left!

0

19

Nut - Keps 3/8 - 16

$

$

Not available

20

Husqvarna 532121189

U-Bolt,3/8 - 16 x 2-3/4

$

$

Not available

21

Husqvarna 532121199

Spacer, Split

$

$

Not available

22

Husqvarna 532121748

Washer, 1-1/32 x 1-5/8 x 16 Ga,

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532106108

Rim- Rear- 8"

$145.99

$

Usually ships in 3-10 days

0

24

Husqvarna 812000001

E-Ring

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532124578

Cap.Hub.Rear

$

$

Not available

27

Husqvarna 532065139

Stem, Valve

$9.99

$

In Stock, only 1 left!

0

28

Husqvarna 532059192

Cap, Valve

$7.49

$

In Stock, Qty 9

0

29

Husqvarna 874610764

Bolt, Hex 7/16 - 20 x 4
(Superseded to 871130768)

$

$

Not available

30

Washer, 15/32 x 1 - 1/2 x 7/32

$

$

Not available

31

Washer, Lock 7/16

$

$

Not available

32

Husqvarna 532108218

Clutch - Electric
(Superseded to 532142600)

$

$

Not available

33

Husqvarna 532109841

Pulley - Engine
(Superseded to 532140189)

$42.99

$

Usually ships in 3-10 days

0

35

Bolt, Hex 3/8 - 16 x 2-3/4

$

$

Not available

36

Husqvarna 532123674

Idler, Flat

$31.99

$

In Stock, only 1 left!

0

37

Husqvarna 532004470

Spacer
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

38

Washer, 13/32 x 13/16 x 12 Ga.

$

$

Not available

39

Husqvarna 532105730

Keeper, Belt

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532121218

Keeper, Belt, Engine, L.H.

$

$

Not available

41

Husqvarna 532109169

Clutch Retainer Assembly
(Superseded to 532109172)

$

$

Not available

42

Pin, Cotter 1/8 x 3/4

$

$

Not available

44

Husqvarna 532106888

Spring - Rod, Brake
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

45

Husqvarna 532121200

Rod, Brake
(Superseded to 532132654)

$

$

Not available

46

Husqvarna 532124872

Cover, Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

47

Husqvarna 532122395

Arm, Brake

$

$

Not available

48

Husqvarna 532122409

Shaft, Foot Pedal

$

$

Not available

49

Husqvarna 532001572

Pin, Roll,3/16 x 1

$4.99

$

In Stock, Qty 7

0

50

Husqvarna 532124236

Cap
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532125637

Rod, Brake, Park
(Superseded to 532133261)

$

$

Not available

52

Husqvarna 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

53

Nut, Lock, 3/8 16

$

$

Not available

54

Husqvarna 532123205

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 812000039

Klip Ring

$6.49

$

In Stock, Qty 7

0

56

Husqvarna 532110812

Washer, Hardened

$

$

Not available

57

Husqvarna 532123789

Arm.Asm.Idler

Note: (Incl. Key No.62)

$

$

Not available

58

Husqvarna 532105709

Spring, Return, Clutch

$11.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532123103

Bracket.Support.Clutch

$

$

Not available

60

Bolt, Hex,3/8-16 x 1-1/2

$

$

Not available

61

Husqvarna 532123766

Pulley.ldler
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

62

Husqvarna 532105706

Bearing

$7.49

$

Usually ships in 3-10 days

0

63

Husqvarna 532121749

Washer, 25t32x 1-1/4x 16Ga.

$3.49

$

Usually ships in 3-10 days

0

64

Husqvarna 532125096

Key, Woodruff No, 9

$9.49

$

In Stock, only 1 left!

0

65

Screw, Hex Thread Cut.1/4 - 20 x 1/2

$

$

Not available

66

Bolt, Hex Washer Thrd. Rolling 3/8 16 x 1-1/2

$

$

Not available

67

Washer - Lock Ext Tooth 3/8

$

$

Not available

68

Bolt, Hex 3/8-16 x 3/4

$

$

Not available

69

Bolt,Hex 3/8-16x1

$

$

Not available

70

Bolt, Carr., 3/8- 16 x 3/4

$

$

Not available

71

Pin, Cotter, 1/8 x 3/4

$

$

Not available

79

Washer,Lock 3/8

$

$

Not available

80

Husqvarna 532106268

Tire - 18 x 9.50 x 8
(Superseded to 532420531)

$120.99

$

Usually ships in 3-10 days

0

80A

Husqvarna 532007152

Tube

Note: (not furnished with tractor)

$74.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532108236

Bracket - Switch

$2.99

$

Usually ships in 3-10 days

0

83

Husqvarna 817021008

Screw-Tap. Hex Hd, No.10-24 x 1/2 Type T

$4.99

$

In Stock, Qty 14

0

84

Husqvarna 532110422

Spring, Brake Return
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

88

Washer 9/32 x 5/8 x 16 Ga.

$

$

Not available

89

Husqvarna 872140506

Bolt - Rd. Hd. Sq. Nk.5/16 - 18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

90

Nut - Lock 5/16-18

$

$

Not available

91

Husqvarna 532004921

Spring- Retainer

$6.49

$

In Stock, only 2 left!

0

93

Bolt-Hex1/4-20x1

$

$

Not available

94

Screw - Hex Hd. Socket 5/16-18 x 5/8

$

$

Not available

95

Screw. Spider Lock #8 x 1/2

$

$

Not available

97

Spark Arrestor Kit

Note: Optional Equipment

$

$

Not available

98

Nut, Hex Jam 3/8 X 16 UNC

$

$

Not available

99

Husqvarna 532124788

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

100

Washer Lock 5/16

$

$

Not available
