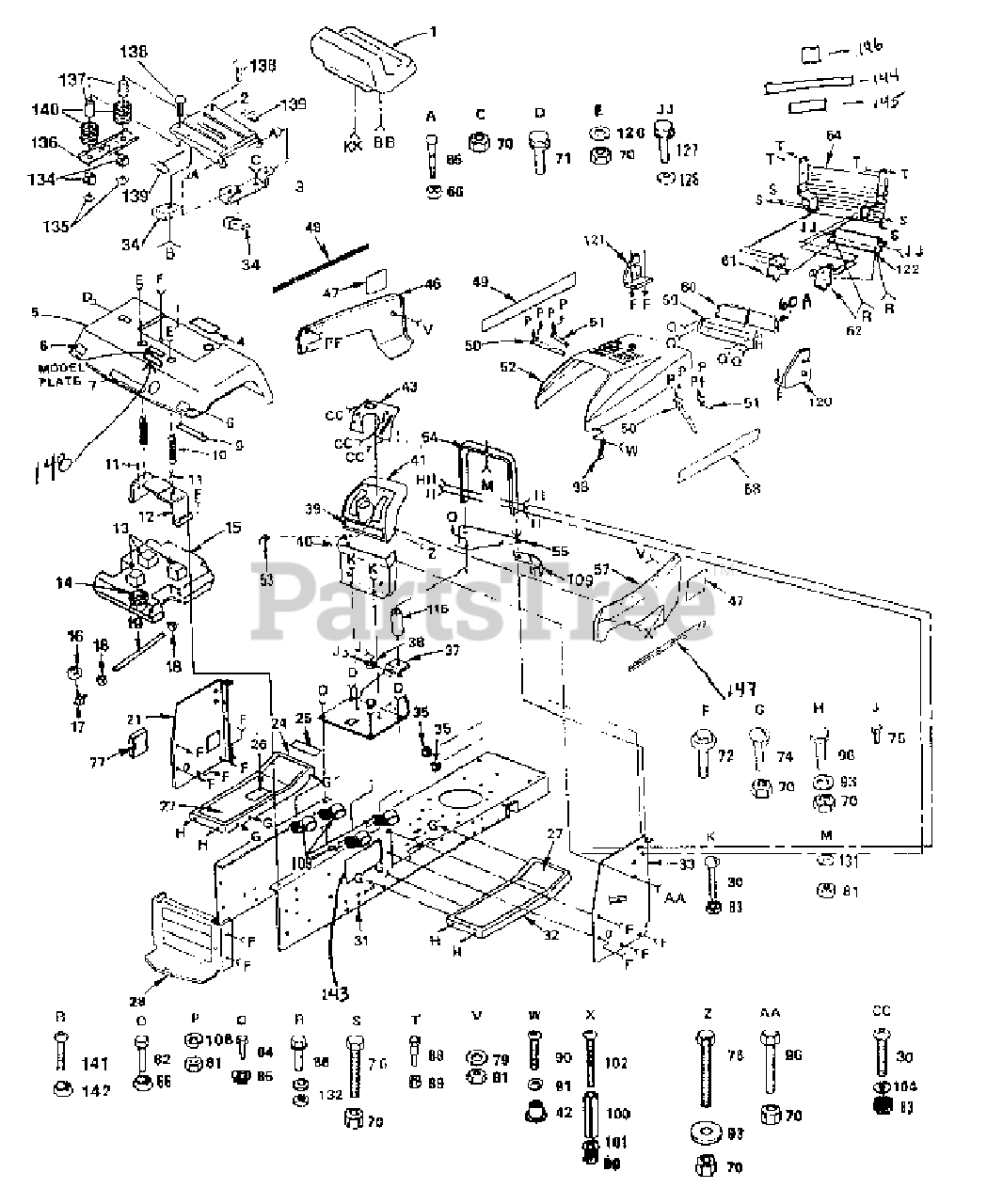

  • Title

1

Husqvarna 532124186

Seat
(Superseded to 532401043)

$

$

Not available

2

Husqvarna 532124294

Pan - Seat

$

$

Not available

3

Husqvarna 532105513

Bracket - Pivot, Seat
(Superseded to 532126656)

$

$

Not available

4

Husqvarna 532126681

Decal - Caution

$

$

Not available

5

Husqvarna 532121642

Fender

$

$

Not available

6

Husqvarna 532106202

Reflector.Tail Light

$

$

Not available

7

Husqvarna 532125584

Decal - Fender

$

$

Not available

9

Husqvarna 532105511

Strap - Fender
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532124181

Spring - Compression.Seat
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

11

Husqvarna 532105531

Nut - Push

$2.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532105509

Bracket - Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532006431

Pad - Spacer

$

$

Not available

14

Husqvarna 532124462

Cap - Fuel

$

$

Not available

15

Husqvarna 532106020

Tank - Fuel

$

$

Not available

16

Husqvarna 532003645

Bushing

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532008710

Stem -Tank, Fuel

$

$

Not available

18

Husqvarna 532123487

Clamp - Hose

$7.49

$

In Stock, only 4 left!

0

19

Husqvarna 863083730

Line - Fuel
(Superseded to 587044808)

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532124118

Panel - Dash, L.H.

$

$

Not available

24

Husqvarna 532105465

Footrest- L.H.
(Superseded to 532147203)

$

$

Not available

25

Husqvarna 532121215

Decal - Clutch/Brake

$

$

Not available

26

Husqvarna 532108592

Decal - Drive Belt

$

$

Not available

27

Husqvarna 532108256

Pad - Footrest

$

$

Not available

28

Husqvarna 532121306

Drawbar
(Superseded to 532145009)

$

$

Not available

30

Screw - Mach. Cr. Thd. 5/16 - 18 x 3/4

$

$

Not available

31

Husqvarna 532121278

Chassis

$

$

Not available

32

Husqvarna 532105464

Footrest - R.H.
(Superseded to 532145243)

$

$

Not available

33

Husqvarna 532110828

Panel - Dash, R.H.

$

$

Not available

34

Husqvarna 532004171

Clip- Insulated
(Superseded to 532124967)

$

$

Not available

35

Husqvarna 532110436

Grommet
(Superseded to 532009151)

$

$

Not available

37

Husqvarna 532124766

Saddle.
(Superseded to 532121195)

$

$

Not available

38

Husqvarna 532124720

Bushing - Steering
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

39

Husqvarna 532109820

Decal - Instructions.Caution

$

$

Not available

40

Husqvarna 532104805

Dash Assembly - Lower

$

$

Not available

41

Husqvarna 532124182

Dash
(Superseded to 532140452)

$

$

Not available

42

Husqvarna 532125004

Nut-Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 532123865

Plate - Dash

$

$

Not available

46

Husqvarna 532125009

Panel - Side, L.H.

$

$

Not available

47

Husqvarna 532125588

Decal - Side Panel HWTH140

$

$

Not available

48

UNKNOWN

$

$

Not available

49

Husqvarna 532124297

Decal- Hood L.H.

$

$

Not available

50

Husqvarna 532106784

Strap Assembly - Hinge, Rear

$

$

Not available

51

Husqvarna 532104618

Strap Assembly - Hinge, Front

$

$

Not available

52

Husqvarna 532125007

Hood
(Superseded to 532125454)

$

$

Not available

53

Husqvarna 532005479

Plug - Button

$5.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532124130

Support.Dash

$

$

Not available

55

Husqvarna 532106965

Plate - Support, Battery

$

$

Not available

57

Husqvarna 532125008

Panel - Side, R.H.
(Superseded to 532140677)

$

$

Not available

58

Husqvarna 532124298

Decal - Hood, R.H.

$

$

Not available

60

Husqvarna 532124250

Lens, L.H.
(Superseded to 532157068)

$

$

Not available

60A

Husqvarna 532124251

Lens, R.H.
(Superseded to 532157069)

$

$

Not available

61

Husqvarna 532124288

Support - Grill, L.H.
(Superseded to 532124529)

$

$

Not available

62

Husqvarna 532124504

Support, Grill, R.H.
(Superseded to 532124528)

$

$

Not available

64

Husqvarna 532124573

Grill Assembly
(Superseded to 532157236)

$

$

Not available

65

Husqvarna 532105529

Bolt-Shoulder 5/16- 18
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

66

Nut - Lock 5/16-18

$

$

Not available

67

Bolt-Hex 318-16 x 3/4

$

$

Not available

68

UNKNOWN

$

$

Not available

70

Nut - Crownlock 3/8-16

$

$

Not available

71

Screw -Hex Washer Thread Rolling 3/8-16 x 1/2

$

$

Not available

72

Screw - Hex Washer Thread Rolling 3/8 16 x 3/4

$

$

Not available

74

Husqvarna 872140606

Bolt - Carriage 3/8-16 x 3/4

$

$

Not available

75

Screw - Hex See Tapping No.10 - 16 x 1/2

$

$

Not available

76

Bolt - Hex 3/8 - 16 x 1

$

$

Not available

77

Husqvarna 532121794

Cover - Access

$

$

Not available

79

Washer 9132 x 314 x 16 Ga.

$

$

Not available

81

Nut - Hex 1/4 - 20

$

$

Not available

82

Bolt - Hex 5/16 - 18 x 2

$

$

Not available

83

Nut - Keps 5/16 - 18

$

$

Not available

86

Screw - Hex Washer Thread Rolling 5/16-18 x 3/4

$

$

Not available

89

Bolt - Lock 1/4 - 20

$

$

Not available

90

Husqvarna 874191008

Screw - Pan Hd. Machine No.10-24 1/2
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

91

Washer- Lock No.10

$

$

Not available

93

Washer 13/32 x 13/16 x 12 Ga.

$

$

Not available

96

Bolt - Hex 3/8 - 16 x 3/4

$

$

Not available

98

Husqvarna 532109808

Latch - Hood

$6.99

$

In Stock, Qty 14

0

99

Husqvarna 873731000

Nut -Keps 10-24
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

100

Husqvarna 532007206

Spacer - Split 10 x 3/4

$7.49

$

In Stock, Qty 6

0

101

Washer 7/32 x 1/2 x 18 Ga.

$

$

Not available

102

Screw - Mach. Cr. Pan 10-24 x 1-1/4

$

$

Not available

104

Washer 11/32 x 11/16 x 16 Ga.

$

$

Not available

106

Washer - Lock 1/4

$

$

Not available

109

Husqvarna 532002751

Clip

$

$

Not available

113

Husqvarna 532121144

Bolt - Shoulder 5/16 - 18
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

114

Washer 15/32 x 1 x 16 Ga.

$

$

Not available

116

Husqvarna 532121236

Spacer

$

$

Not available

120

Husqvarna 532110853

Bracket Assembly, R.H.

$

$

Not available

121

Husqvarna 532110852

Bracket Assembly, L.H.

$

$

Not available

122

UNKNOWN

$

$

Not available

123

Husqvarna 532120068

Adjustment Knob
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

124

Washer 17/32 x 1-3116 x 12 Ga.

$

$

Not available

125

Lockwasher 3/8 Ext. Tooth

$

$

Not available

126

Washer 13/32 x 1 x 14 Ga.

$

$

Not available

127

Screw Thrd. Roll 1/4-20 x 3/4

$

$

Not available

128

Washer 9/32 x 3/4 x 16 Ga.

$

$

Not available

129

Lockwasher Ext. Tooth

$

$

Not available

130

Husqvarna 873490400

Wingnut
(Superseded to 532146525)

$

$

Not available

131

Washer, 1/4 Ext. Tooth

$

$

Not available

132

Washer 11/32 x 3/4 x 12Ga.

$

$

Not available

134

Husqvarna 532121248

Bushing, Snap.80

$6.49

$

Usually ships in 3-10 days

0

135

Lock Nut, Flange 1/4

$

$

Not available

136

Husqvarna 532121246

Bracket, Switch Mount
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

137

Husqvarna 532121249

Spacer, Split .28 x .88

$6.49

$

In Stock, only 2 left!

0

138

Bolt, Carr. 1/4 x 1 1/4

$

$

Not available

139

Husqvarna 532121251

Foam Strip

$

$

Not available

140

Husqvarna 532121250

Spring. Compression

$7.49

$

Usually ships in 3-10 days

0

141

Screw, Pan Hd. #10 - 32

$

$

Not available

142

Nut, Keps #10

$

$

Not available

143

Husqvarna 532125947

Decal, Frame

$

$

Not available

144

Husqvarna 532126036

Decal, Grill Stripe

$

$

Not available

145

Husqvarna 532126039

Decal, Grill, Husq.

$

$

Not available

146

Husqvarna 532125989

Decal, Grill, Husq.

$

$

Not available

147

Husqvarna 532126034

Decal, Side Panel

$

$

Not available

148

Husqvarna 532126187

Decal, Certification

$5.99

$

Usually ships in 3-10 days

0
