YTA 1946 (960480055-00) - Husqvarna 46" Yard Tractor (2013-12) DRIVE Parts Diagram

46" Yard Tractor

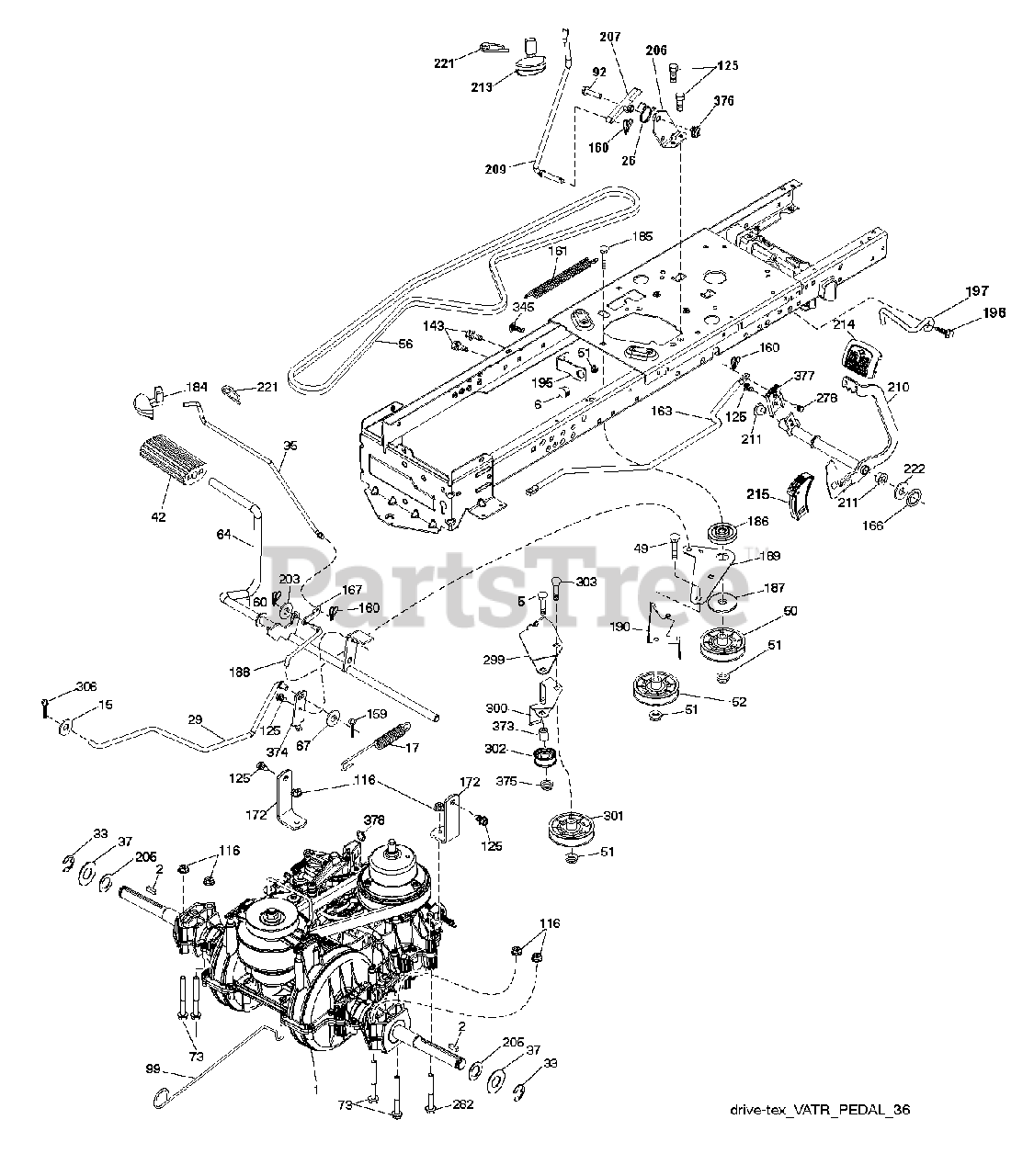

DRIVE Parts Diagram

  • Title
1

000000000

Note: TRANSAXLE VARIATOR SD PEDAL (5849733901)

$

$

Not available

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$5.99

$

In Stock, only 3 left!

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 584954001

SPRING BRAKE VARIATOR

$22.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532199679

SPRING.RETURN.CRUISE

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 584823101

BRAKE.VARIATOR.SD3
(Superseded to 584823102)

$11.99

$

In Stock, only 1 left!

0

33

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 583864501

ROD .BRAKE. PARKING. GT. HUSQ.

$7.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532197253

BELT.DRIVE.MOWER.TEX.42"
(Superseded to 592855001)

$39.99

$

In Stock, Qty 5

0

64

Husqvarna 532448353

SUBASM.SHAFT.PEDAL.BRAKE
(Superseded to 589671401)

$56.99

$

Usually ships in 3-10 days

0

67

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

73

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

92

Husqvarna 874760520

BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532435935

ROD.BYPASS.VARIATOR.GEN2

$6.49

$

In Stock, only 1 left!

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

143

Husqvarna 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

161

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

163

Husqvarna 583971301

ROD.CONTROL.PEDAL.VARIATOR

$34.99

$

In Stock, only 1 left!

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

172

Husqvarna 583974201

STRAP.TORQUE.VARIATOR

$6.99

$

In Stock, only 1 left!

0

184

Husqvarna 532441455

RB HANDLE.PARKG.BRK.HUS/PRED
(Superseded to 532403118)

$12.99

$

In Stock, Qty 20+

0

$4.99

$

In Stock, Qty 10

0

186

Husqvarna 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 532194323

RP LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 1 left!

0

195

Husqvarna 581504601

BRACKET.BRAKE.BRAKE.VAR.SD

$7.99

$

Usually ships in 3-10 days

0

196

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

197

Husqvarna 532195804

LINK.CLUTCH.ANIT-ROTAT

$8.99

$

In Stock, Qty 5

0

203

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

205

$4.99

$

In Stock, Qty 20+

0

206

Husqvarna 532448596

BRACKET.MOUNT.CRUISE.LATCH

$5.99

$

Usually ships in 3-10 days

0

207

Husqvarna 532448264

LATCH.CONTROL.CRUISE.VARIATOR

$20.99

$

Usually ships in 3-10 days

0

209

Husqvarna 532199592

ROD.CONTROL.CRUISE.GT.

$10.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532448270

WELDMENT.PEDAL.VARIATOR
(Superseded to 588921002)

$45.99

$

Usually ships in 3-10 days

0

211

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

213

Husqvarna 532403119

KNOB.CONTROL.CRUSIE.HU

$12.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

In Stock, only 1 left!

0

215

Husqvarna 532401723

PEDAL.REVERSE.TEX.GT.4

$14.99

$

Usually ships in 3-10 days

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

222

Husqvarna 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 1 left!

0

278

Husqvarna 580369101

BOLT CRUISE VARIATOR

$20.99

$

Usually ships in 3-10 days

0

282

Husqvarna 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 1 left!

0

299

Husqvarna 532415683

BRACKET.MOUNT.IDLERS

$10.99

$

In Stock, only 2 left!

0

300

Husqvarna 532415681

KEEPER.IDLERS.REAR.VARIATOR

$6.49

$

Usually ships in 3-10 days

0

301

Husqvarna 532415680

PULLEY.IDLER.V-GROOVE

$31.99

$

In Stock, Qty 5

0

302

Husqvarna 581420501

PULLEY.IDLER.FLAT.2"

$26.99

$

In Stock, only 2 left!

0

303

Husqvarna 872110618

BOLT CARRIAGE

$6.49

$

In Stock, only 2 left!

0

306

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

373

Husqvarna 581461801

SPACER.IDLER

$4.99

$

In Stock, only 2 left!

0

374

Husqvarna 581475201

ARM.CONTROL.BRAKE

$6.49

$

Usually ships in 3-10 days

0

375

$3.99

$

Usually ships in 3-10 days

0

376

Husqvarna 532426589

NUT.FLANGE.HEX.5/16X18.BLACK
(Superseded to 585802801)

$5.99

$

Usually ships in 3-10 days

0

377

Husqvarna 584303401

GEAR.SECTOR.CONTROL.CRUISE.VAR
(Superseded to 588896401)

$

$

Not available

378

Husqvarna 584287701

NUT.PUSH.8MM

$4.99

$

Usually ships in 3-10 days

0
