YTA 18542 (960430211-00) - Husqvarna 42" Yard Tractor (2015-08) CHASSIS ENCLOSURES Parts Diagram

42" Yard Tractor

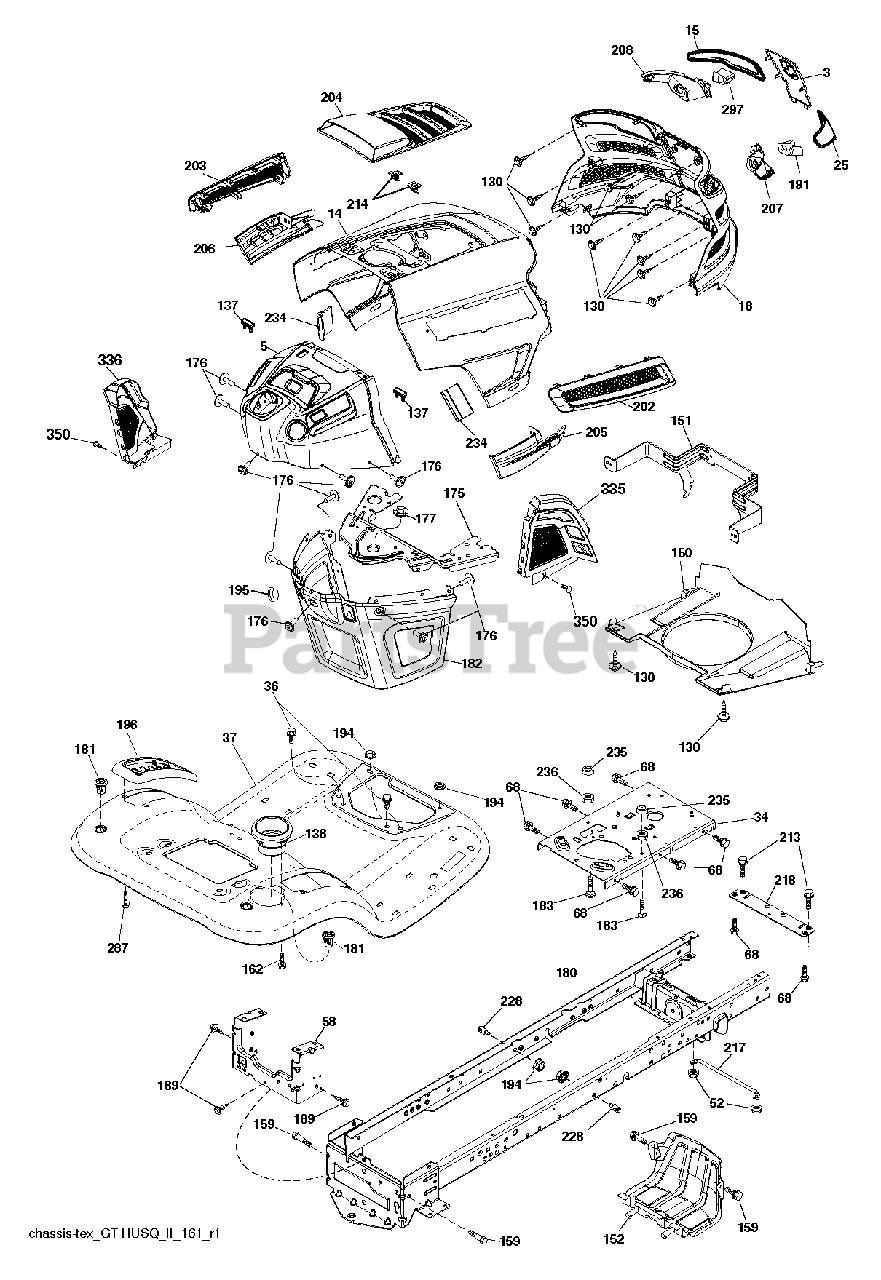

CHASSIS ENCLOSURES Parts Diagram

  • Title

3

Husqvarna 532444481

APPLIQUE.SUBASM.GT.HUSQ.II

$40.99

$

Usually ships in 3-10 days

0

5

Husqvarna 581466801

UPPER.GT2.SVC.MINDING.C-O.M;H
(Superseded to 590748818)

$44.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532439725

HOOD.ASM.HUSQVARNA.GT.TEX.422
(Superseded to 587483301)

$85.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532439733

LENS.HEADLIGHT.LH.GTII.2011

Note: LH

$13.99

$

In Stock, only 1 left!

0

18

Husqvarna 532440653

GRILLE.SUBSTRATE.2011.
(Superseded to 597247201)

$100.99

$

In Stock, only 1 left!

0

25

Husqvarna 532439732

LENS.HEADLIGHT.RH.GTII.2011
(Superseded to 532443385)

Note: RH

$13.99

$

In Stock, only 1 left!

0

34

Husqvarna 580910801

PLATE.ENGINE.WELDED.CHASSIS

$68.99

$

In Stock, only 1 left!

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532441206

FENDER.TLT.PDL.CNTRL.W/CPH.ORG

$194.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532412280

DRAWBAR UPPER 2PC SMALL FENDER

$46.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 6

0

138

Husqvarna 532439747

HOLDER.CUP.LT.GREY

$8.99

$

In Stock, only 1 left!

0

150

Husqvarna 532439921

AIR.DUCT.GTV2(2.54"RING HEIGHT

$53.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532436670

BRACKET.PIVOT.HOOD.GT.HUSQ.II

$54.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532439870

SHIELD.BROWNING.PNT.GT.V2

$17.99

$

In Stock, only 2 left!

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$37.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532415063

CHASS.WLDMNT.TL.12GA/2P.48/54

$193.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532439746

BUSHING.MNT.FEND.CRGO.TEX.49
(Superseded to 532403025)

$

$

Not available

182

Husqvarna 586738602

DASH LOWER.HUSQ.PRED NO CRUISE

$68.99

$

Usually ships in 3-10 days

0

183

Husqvarna 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

191

Husqvarna 532437455

INSERT.REFLECTIVE.RH.HUSQ.GTII

$18.99

$

Usually ships in 3-10 days

0

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

195

Husqvarna 532439647

DECKLFT.CONSOL FULL ASSM GREY

$53.99

$

In Stock, only 1 left!

0

196

Husqvarna 532439652

CONSOLE.ASM.DCKLFT.RBT.TLT.498

$

$

Not available

202

Husqvarna 532439728

VENT.SIDE.RH.GT.HUSQ.II.

Note: RH

$17.99

$

Usually ships in 3-10 days

0

203

Husqvarna 532439727

VENT.SIDE.LH.GT.HUSQ.II.498

Note: LH

$17.99

$

In Stock, only 3 left!

0

204

Husqvarna 532435714

VENT.TOP.HUSQ.GT2
(Superseded to 587485801)

$26.99

$

In Stock, only 3 left!

0

205

Husqvarna 532439730

SIDE.TRIM.RH.GT.HUSQ.II

Note: RH

$14.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532439729

SIDE.TRIM.LH.GT.HUSQ.II.GRAY

Note: LH

$17.99

$

In Stock, only 1 left!

0

207

Husqvarna 532439734

BEZEL LIGHT.RH.GT.II.MYLAR
(Superseded to 587464801)

Note: RH

$13.99

$

In Stock, Qty 10

0

208

Husqvarna 532439735

BEZEL LIGHT.LH.GT.II.MYLAR
(Superseded to 587464501)

Note: LH

$13.99

$

In Stock, only 1 left!

0

213

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 4 left!

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

234

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$6.99

$

In Stock, only 2 left!

0

235

Husqvarna 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

Usually ships in 3-10 days

0

287

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

In Stock, only 2 left!

0

297

Husqvarna 532437456

INSERT.REFLECTIVE.LH.HUSQ.GTII

$18.99

$

In Stock, only 1 left!

0

335

Husqvarna 532439847

COVER.RH.CLOSE.OUT.BLACK

$37.99

$

In Stock, only 1 left!

0

336

Husqvarna 532445309

COVER-LH.LOWER.DASH.GT2.BLACK

$37.99

$

In Stock, only 1 left!

0

350

Husqvarna 532445143

CLIP.X-MAS.TREE

$4.99

$

In Stock, only 1 left!

0

----

Husqvarna 532439976

PLUG.TEX.DASH.SVC.MINDER.GREY

$6.49

$

Usually ships in 3-10 days

0
