YT 9500 (2691146-00) - Allis-Chalmers 52" Garden Tractor, 26hp Briggs & Stratton Seat & Seat Deck Group - EVAP Compliant Parts Diagram

52" Garden Tractor, 26hp Briggs & Stratton

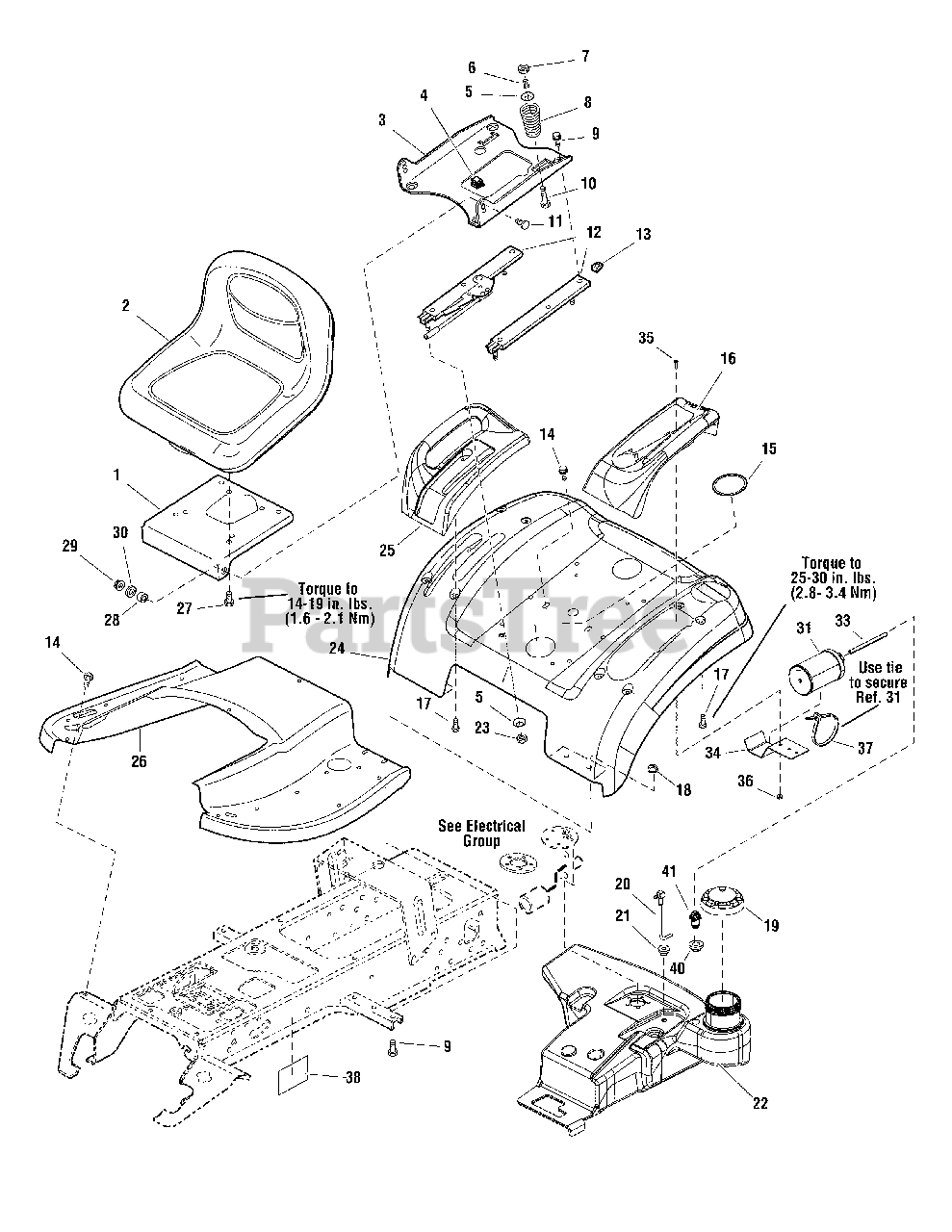

Seat & Seat Deck Group - EVAP Compliant Parts Diagram

  • Title

1

Simplicity 1722129ASM

BRACKET, 1-5/8 x 1-3/4

$62.99

$

Usually ships in 2-12 days

0

2

Simplicity 1753728YP

SEAT, 18"

$591.99

$

Usually ships in 2-12 days

0

3

Simplicity 1722128ASM

SUPPORT, Seat

$87.99

$

Usually ships in 2-12 days

0

4

Simplicity 2172434SM

CLIP, Wire

$4.99

$

Usually ships in 2-12 days

0

5

Simplicity 1709256SM

WASHER, Spring, 5/16 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

6

Simplicity 1714263SM

SPRING, Compression

$4.99

$

In Stock, only 1 left!

0

7

Simplicity 1919438SM

NUT, Hex Lock, ESNA Light, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1717051SM

SPRING, Compression

$13.99

$

In Stock, Qty 20+

0

9

Simplicity 1930591SM

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

10

Simplicity 1931339SM

BOLT, Carriage, 5/16-18 x 2
(Superseded to 704035)

$4.49

$

In Stock, only 2 left!

0

11

Simplicity 1931350SM

BOLT, Carriage, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

12

Simplicity 1722356SM

SLIDE, Seat

$62.99

$

In Stock, only 1 left!

0

13

Simplicity 1935255SM

NUT, Speed, 5/16-18, Lug Type

$3.49

$

In Stock, only 4 left!

0

14

Simplicity 1930601SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

15

Simplicity 1722309SM

PLUG, Plastic

$5.99

$

In Stock, Qty 12

0

16

Simplicity 1729711SM

POD, with Cup Holder, LH
(Superseded to 1687789YP)

$103.99

$

Usually ships in 2-12 days

0

17

Simplicity 2860664SM

CAPSCREW, Hex Washer Head, 1/4-20 x 5/8

$5.99

$

In Stock, only 2 left!

0

18

Simplicity 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Simplicity 5103005YP

CAP, Gas
(Superseded to 1761224YP)

$48.99

$

In Stock, Qty 7

0

20

Simplicity 1722340SM

TUBE & ELBOW ASSEMBLY

$34.99

$

Usually ships in 2-12 days

0

21

Simplicity 1654930SM

BUSHING, 3/8 x 9/16 x 5/8, Rubber

$7.99

$

In Stock, Qty 20+

0

22

Simplicity 1751622YP

TANK, Fuel

Note: (Incl. Ref. Nos. 39, 40 & 41)

$365.99

$

Usually ships in 2-12 days

0

23

Simplicity 1960636SM

NUT, Hex KEPS, 5/16-18

$4.99

$

In Stock, only 1 left!

0

24

Simplicity 1722106ZYP

DECK, Seat

$387.99

$

Usually ships in 2-12 days

0

25

Simplicity 1722108SM

POD, RH with 2 Slots
(Superseded to 1687790YP)

$103.99

$

Usually ships in 2-12 days

0

26

Simplicity 1722105ZYP

TUNNEL

$239.99

$

Usually ships in 2-12 days

0

27

Simplicity 770697

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 1

$

$

Not available

28

Simplicity 1663752SM

SPACER, 25/64 x 5/8 x 3/16, Hardened

$5.99

$

In Stock, only 2 left!

0

29

Simplicity 1930645SM

NUT, Hex Flange Two-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

30

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 1751599YP

CARBON CANISTER, 300CC

$59.99

$

Usually ships in 2-12 days

0

33

Simplicity 7700552X5YP

HOSE, Vapor
(Superseded to 7700552X12YP)

$5.49

$

In Stock, only 2 left!

0

34

Simplicity 1752099AYP

BRACKET, Canister Mounting

$20.99

$

Usually ships in 2-12 days

0

35

Simplicity 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

36

Simplicity 1960591SM

NUT, KEPS Lock, #10-24

$3.49

$

In Stock, Qty 8

0

37

Simplicity 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

38

DECAL, EVAP

$

$

Not available

40

Simplicity 799624

GROMMET

Note: (Included with Ref. No. 22)

$8.99

$

In Stock, Qty 18

0

41

Simplicity 7104638YP

REMOTE VENT ASSEMBLY

Note: (Included with Ref. No. 22)

$

$

Not available
