YT 542 K (13AV90GS897) - Columbia 42" Yard Tractor (2012) Transmission Assembly Parts Diagram

42" Yard Tractor

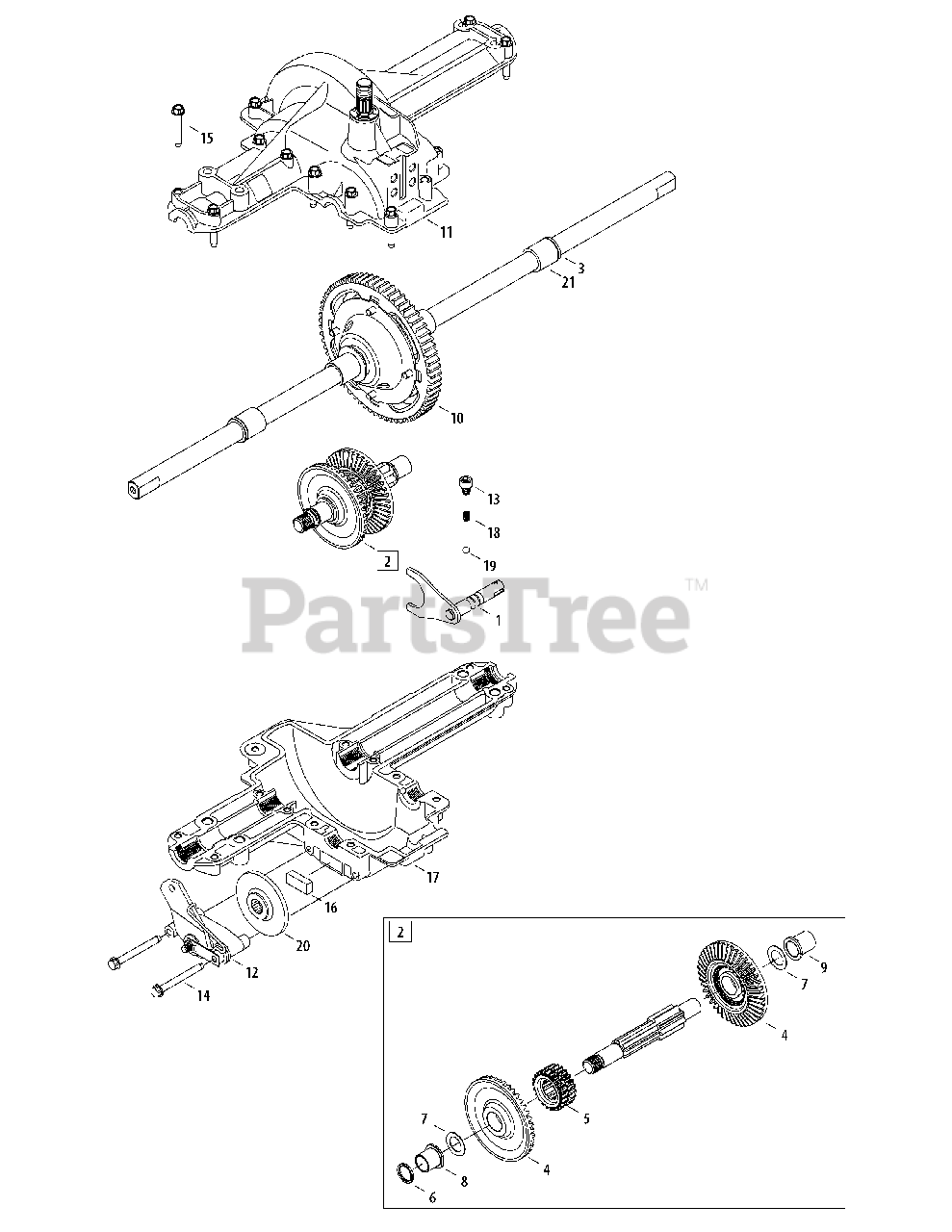

Transmission Assembly Parts Diagram

  • Title
1

MTD 911-0011

Detent Shaft Assembly

$42.99

$

In Stock, only 3 left!

0

2

MTD 911-04091

Drive Shaft Ass'y (Incl. Ref. 3-9)
(Superseded to 911-05051)

$155.99

$

In Stock, only 1 left!

0

3

$7.49

$

In Stock, Qty 20+

0

4

MTD 917-04479B

Bevel Gear 42T

$29.99

$

In Stock, only 2 left!

0

5

MTD 718-04381P

Single Speed Clutch Collar

$18.99

$

In Stock, only 2 left!

0

6

MTD 721-0213

Seal .625 x .812 x .94

$10.99

$

In Stock, Qty 15

0

7

MTD 936-0336

Shim Washer .625 ID x 1.0 OD x .030

Note: Use applicable shim washers

$4.49

$

In Stock, Qty 7

0

7

MTD 936-0337

Shim Washer .634 ID x 1.0 OD x 0.04

Note: Use applicable shim washers

$4.49

$

In Stock, Qty 9

0

7

MTD 936-0349

Shim Washer .630 ID x 1.0 x .020

Note: Use applicable shim washers

$4.49

$

In Stock, Qty 20+

0

7

MTD 736-0494

Shim Washer .632" ID x 1.0 OD x .035

Note: Use applicable shim washers

$4.99

$

In Stock, only 4 left!

0

7

MTD 936-0495

Shim Washer .632" ID x 1.0" OD x .025
(Superseded to 736-0495)

Note: Use applicable shim washers

$4.49

$

In Stock, only 2 left!

0

8

MTD 741-04443

Flange Bearing 5/8 x 3/4 x 3/4
(Superseded to 741-05096)

$4.49

$

In Stock, Qty 11

0

9

MTD 741-04442

Flange Bearing 5/8 x 3/4 x 15/16

$3.99

$

In Stock, only 1 left!

0

10

MTD 918-04619

Differential Assembly

$238.99

$

In Stock, only 1 left!

0

11

MTD 919-04187

Upper Housing
(Superseded to 919-04187A)

$164.99

$

In Stock, only 1 left!

0

12

MTD 961-0001

Brake Ass'y

$57.99

$

In Stock, only 1 left!

0

13

MTD 710-04731

S-Tap ping Screw 5/16-18 x .375

$7.99

$

Usually ships in 3-6 days

0

14

MTD 710-1206

Hex Wash. Hd. Self-Tap Screw. 1/4-20

$7.49

$

In Stock, Qty 6

0

15

MTD 710-1325

S-Tap ping Screw 1/4-10 x 1.625

$4.49

$

Usually ships in 3-6 days

0

16

MTD 917-0678

Brake Puck

$7.49

$

In Stock, only 1 left!

0

17

MTD 919-04329

Lower Housing
(Superseded to 919-04329B)

$85.99

$

Usually ships in 3-6 days

0

18

MTD 932-0863

Compression Spring
(Superseded to 932-05125)

$4.49

$

In Stock, only 1 left!

0

19

MTD 741-0862

Ball Detent .250 Dia.

$4.49

$

In Stock, Qty 20+

0

20

MTD 761-0202

Brake Disc

$15.99

$

In Stock, only 1 left!

0

21

MTD 941-0340

Sleeve Bearing 3/4 ID x 1.0
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 11

0
