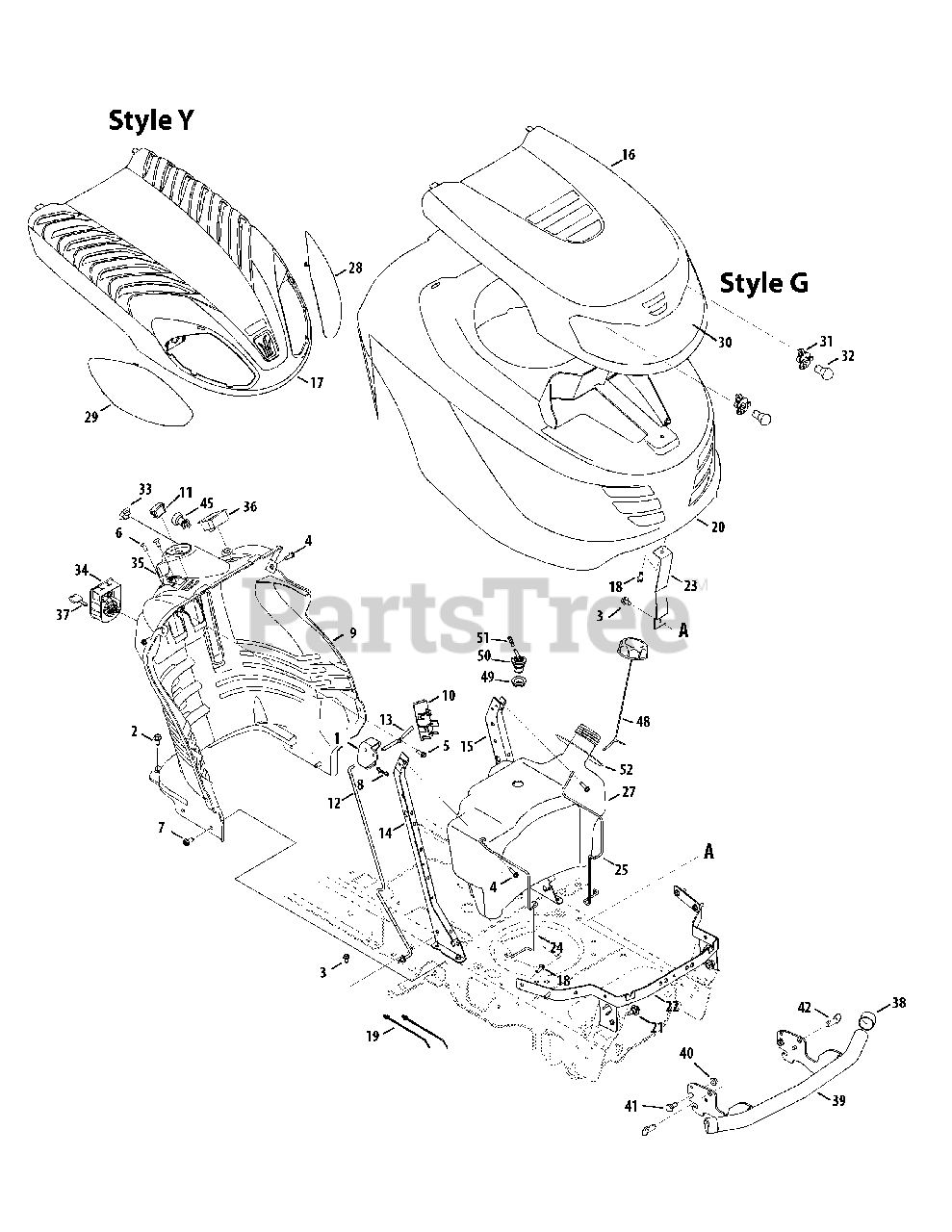

YT 542 K (13AV90GS897) - Columbia 42" Yard Tractor (2012) Hood & Grille Parts Diagram

42" Yard Tractor

Hood & Grille Parts Diagram

  • Title

1

MTD 631-04353A

Dash Lever

$23.99

$

Usually ships in 3-6 days

0

2

MTD 710-04484

S-Tapp Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0599

Hex Wash S-Tapp Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0642

Hex TT Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0895

Hex Tapp Screw 1/4 x .75" Lg.

$6.49

$

In Stock, Qty 5

0

6

MTD 710-1017

Torx Mach. AB-Tapp Screw. 1/4-14 x .625 Lg

$8.49

$

In Stock, Qty 9

0

7

MTD 710-1611B

Screw 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

8

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

9

MTD 931-06495A

Dash Panel (Man. PTO w/fuel level window)

$

$

Not available

10

MTD 731-06643

Cruise Cover Y/G Style

$6.49

$

Usually ships in 3-6 days

0

11

MTD 731-07042

Light Switch Cap

$9.99

$

Usually ships in 3-6 days

0

12

MTD 747-05008

Latch Control Rod

$16.99

$

Usually ships in 3-6 days

0

13

MTD 747-1155

Pivot Rod

$13.99

$

Usually ships in 3-6 days

0

14

MTD 783-04285F-0637

RH Dash Support Plate

$

$

Not available

15

MTD 783-04323F-0637

LH Dash Support Plate

$34.99

$

Usually ships in 3-6 days

0

16

MTD 931-04308

Upper "G" Style Hood

$104.99

$

Usually ships in 3-6 days

0

17

MTD 931-04307

Upper "Y" Style Hood

$

$

Not available

18

MTD 710-05108

Screw, Bos, 1/4 Dia. x .75

$3.99

$

In Stock, Qty 20+

0

19

MTD 926-0154

Cable Tie

$6.49

$

Usually ships in 3-6 days

0

20

MTD 931-06538

G Style Hood (w/side fill fuel tank)

$202.99

$

Usually ships in 3-6 days

0

21

MTD 738-04091A

Shoulder Screw .43 x .29, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

22

MTD 783-04606C-0606

Hood Pivot Bracket

$45.99

$

Usually ships in 3-6 days

0

23

MTD 783-06117-0637

Hood Support Bracket

$

$

Not available

24

MTD 747-05049

Tank Support Rod RH

$10.99

$

Usually ships in 3-6 days

0

25

MTD 747-05050

Tank Support Rod LH

$

$

Not available

27

MTD 951-10573

Fuel Tank 2.75 Gal. (side fill)

$214.99

$

Usually ships in 3-6 days

0

28

MTD 931-06540

Lens LH - Style "Y"

$14.99

$

Usually ships in 3-6 days

0

29

MTD 931-06539

Lens RH - Style "Y"

$16.99

$

Usually ships in 3-6 days

0

30

MTD 931-06564

Lens (Style G)

$44.99

$

Usually ships in 3-6 days

0

30

MTD 777X43285

Reflector La bel

$

$

Not available

31

MTD 925-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

32

MTD 925-0963

Miniature Lamp 12V Socket Type

$7.49

$

In Stock, only 4 left!

0

33

MTD 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

34

MTD 925-04230B

Key Switch Module
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

35

MTD 746-04364

Throttle/Choke Cont. Cable 25" Lg. (Single)

$48.99

$

In Stock, only 2 left!

0

36

MTD 925-04036C

Ammeter
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

37

MTD 925-1745A

Ignition Key w/Plastic Cover

$17.99

$

In Stock, Qty 20+

0

38

MTD 731-05674

Bumper Cap

$5.49

$

In Stock, Qty 20+

0

39

MTD 683-04219B-0637

Bumper Assembly

$60.99

$

In Stock, only 2 left!

0

40

MTD 712-0130

Hex Lock-Nut 3/8-16 Nylon

$3.99

$

In Stock, Qty 13

0

41

MTD 738-0143

Shoulder Screw. .498 x .340: 3/8-16

$4.49

$

In Stock, Qty 20+

0

42

MTD 714-04061

Quick Pin 1/2" dia. x 0.50

$21.99

$

In Stock, Qty 20+

0

45

MTD 925-04174

Electric PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, Qty 5

0

48

MTD 951-12179A

Cap-Fuel
(Superseded to 951-12179C)

$38.99

$

In Stock, only 2 left!

0

49

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

50

MTD 751-12118

Roll over Valve

$35.99

$

In Stock, only 1 left!

0

51

MTD 751-12089-28

Hose Vent

$8.99

$

In Stock, only 1 left!

0

52

MTD 735-04170

Fuel Gasket

$5.49

$

Usually ships in 3-6 days

0

MTD 925-04105

Harness (Man PTO/RMC/Hr. Meter)

Note: Not shown, RMC® (Reverse Mowing Control)

$214.99

$

Usually ships in 3-6 days

0
