YT 542 K (13AV90GS897) - Columbia 42" Yard Tractor (2012) Engine Accessories Parts Diagram

42" Yard Tractor

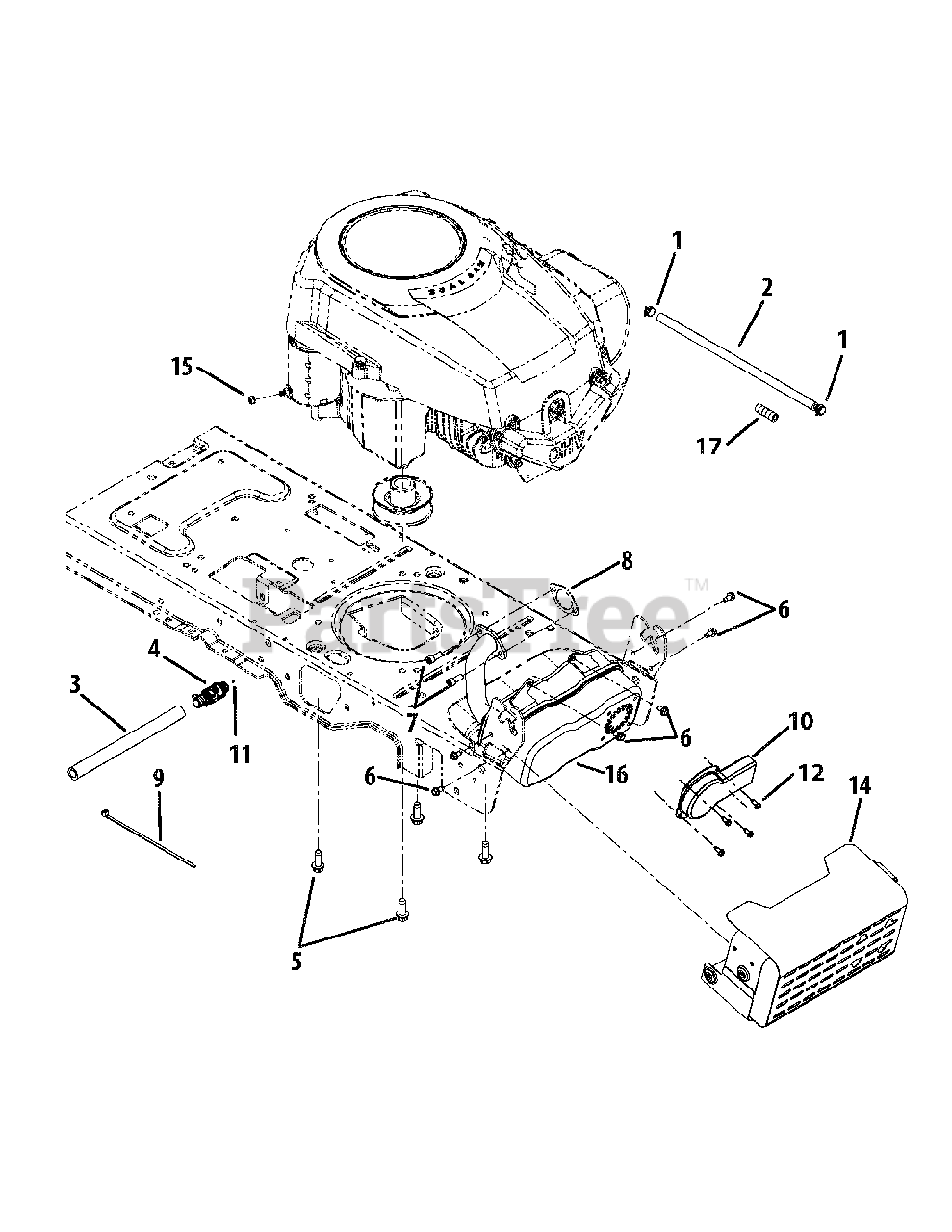

Engine Accessories Parts Diagram

  • Title

1

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

2

MTD 751-10349-16

Fuel Line 16" Lg.

$19.99

$

In Stock, Qty 11

0

3

MTD 751-3141-14

Oil Drain Hose

$11.99

$

In Stock, Qty 7

0

4

MTD 951-10517A

Oil Drain

$24.99

$

In Stock, only 1 left!

0

5

MTD 710-04683

TT Screw 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

6

MTD 710-0599

Hex Wash S-Tapp Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-1314A

Screw. 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

MTD KH-20-041-12-S

Exhaust Gasket

$4.99

$

Usually ships in 2-5 days

0

9

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

11

MTD n/a

Pipe Sealant (puchase locally)

$

$

Currently unavailable

10

MTD 751-11053

Long Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

12

MTD 710-0227

Hex AB Screw #8-18 x .50

$4.49

$

In Stock, Qty 20+

0

14

MTD 683-04549

Muffler Shield Assembly
(Superseded to 683-05460A)

Variations

MTD 683-04549-0637

Muffler Shield - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

MTD 683-04549-0606

SHIELD-MUFFLER - MAJESTIC ORANGE (0606)

$80.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

15

MTD 712-0271

Hex Sems Nut 1/4-20

$4.49

$

In Stock, Qty 19

0

16

MTD 751-11943

Muffler
(Superseded to 951-11943A)

$133.99

$

In Stock, only 1 left!

0

17

MTD 751-12089-28

Vent Hose (optional)

$8.99

$

In Stock, only 1 left!

0
