YT 48 DXLS (960430227-00) - Husqvarna 48" Yard Tractor (2016-07) MOWER DECK / CUTTING DECK Parts Diagram

48" Yard Tractor

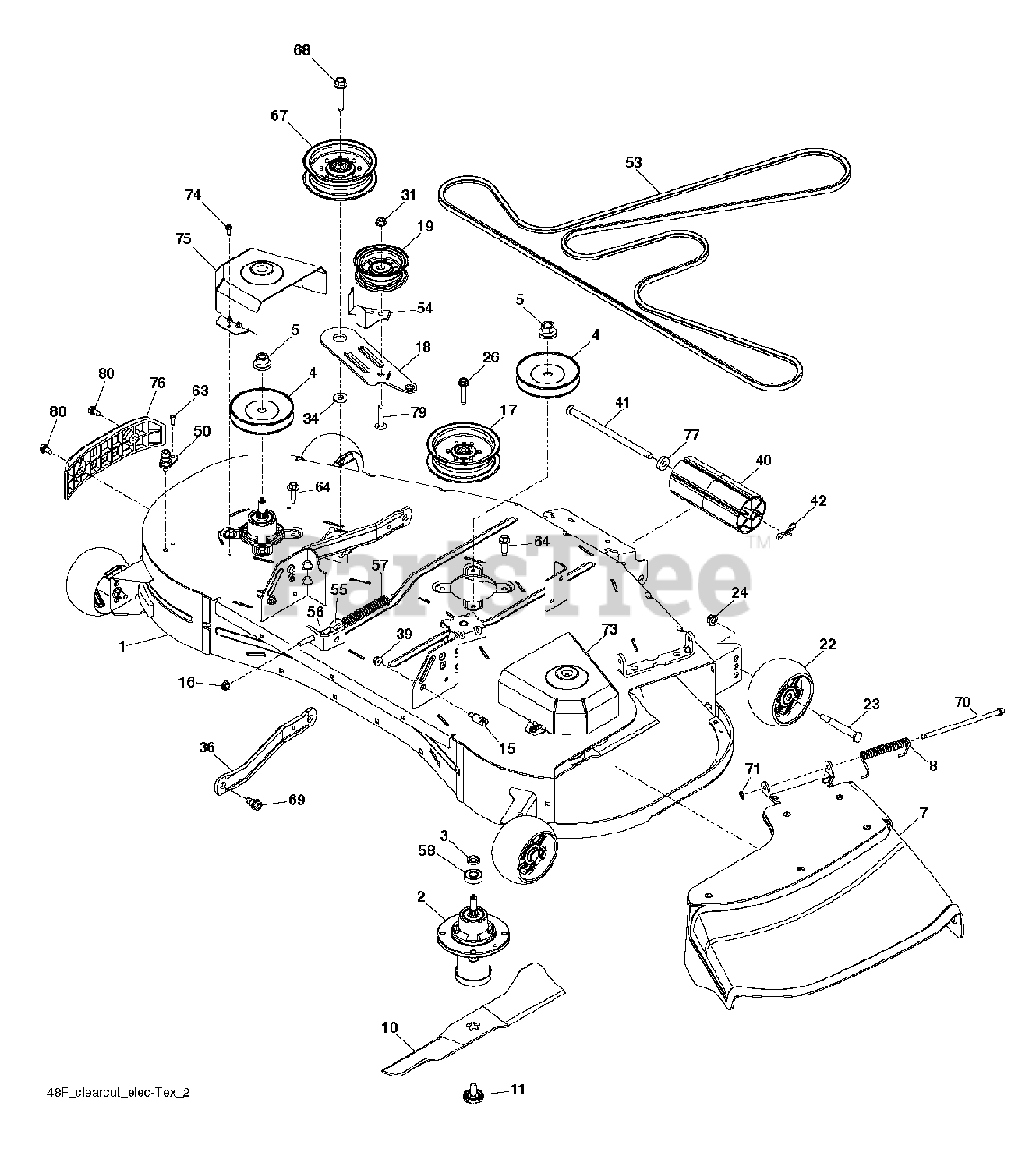

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Husqvarna 588788002

DECK KIT.SVC.48.CC.ASM.668
(Superseded to 583810001)

$797.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, only 4 left!

0

3

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 532173434

MANDREL PULLEY

$18.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 18

0

7

Husqvarna 588980701

DEFLECTOR.ASM.48".CLRCT.RES.OR

$

$

Not available

8

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 8

0

10

Husqvarna 588811002

BLADE.BAGGER.RES.CLRCT.48".BLK

$34.99

$

In Stock, only 4 left!

0

11

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

16

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

17

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 10

0

18

Husqvarna 588812302

ARM.PNT.CLUTCHING.ASM.EDIP
(Superseded to 529470302)

$7.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 7

0

22

Husqvarna 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

24

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

26

Husqvarna 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

Usually ships in 3-10 days

0

31

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

$6.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

39

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

40

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 19

0

41

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

42

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 13

0

53

Husqvarna 588814301

BELT.DECK.TRACTOR
(Superseded to 599275701)

$66.99

$

In Stock, Qty 8

0

54

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 3 left!

0

55

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

56

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 587358401

SPRING.EXTN.42.FCS.TR.DECK.DRV
(Superseded to 532197251)

$11.99

$

In Stock, only 1 left!

0

58

$13.99

$

In Stock, Qty 6

0

63

Husqvarna 817490410

SCR 1/4-20X5/8 HEX SELF TAP ZD

$

$

Not available

64

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

67

Husqvarna 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 20+

0

68

Husqvarna 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

69

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

70

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

71

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

73

Husqvarna 588812402

COVER.PNT.MANDREL.RH.GREY

$39.99

$

In Stock, only 1 left!

0

74

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

75

Husqvarna 588813102

COVER.PNT.MANDREL.LH.

$20.99

$

In Stock, only 3 left!

0

76

Husqvarna 582541101

BUMPER.ASM.SIDE.TRIM.CLRCUT.48

$17.99

$

In Stock, Qty 6

0

77

Husqvarna 582360501

BUSHING.NOSE.ROLLER

$4.99

$

In Stock, Qty 6

0

$6.49

$

Usually ships in 3-10 days

0

80

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

--

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 7

0

--

Husqvarna 589428801

DECK.SVC.48FCSCLRCTEL
(Superseded to 583810001)

$797.99

$

Usually ships in 3-10 days

0
