YT 4622 SE (13AP93KT897) - Columbia 46" Yard Tractor (2014) Mower Deck 46-Inch (Electric PTO) Parts Diagram

46" Yard Tractor

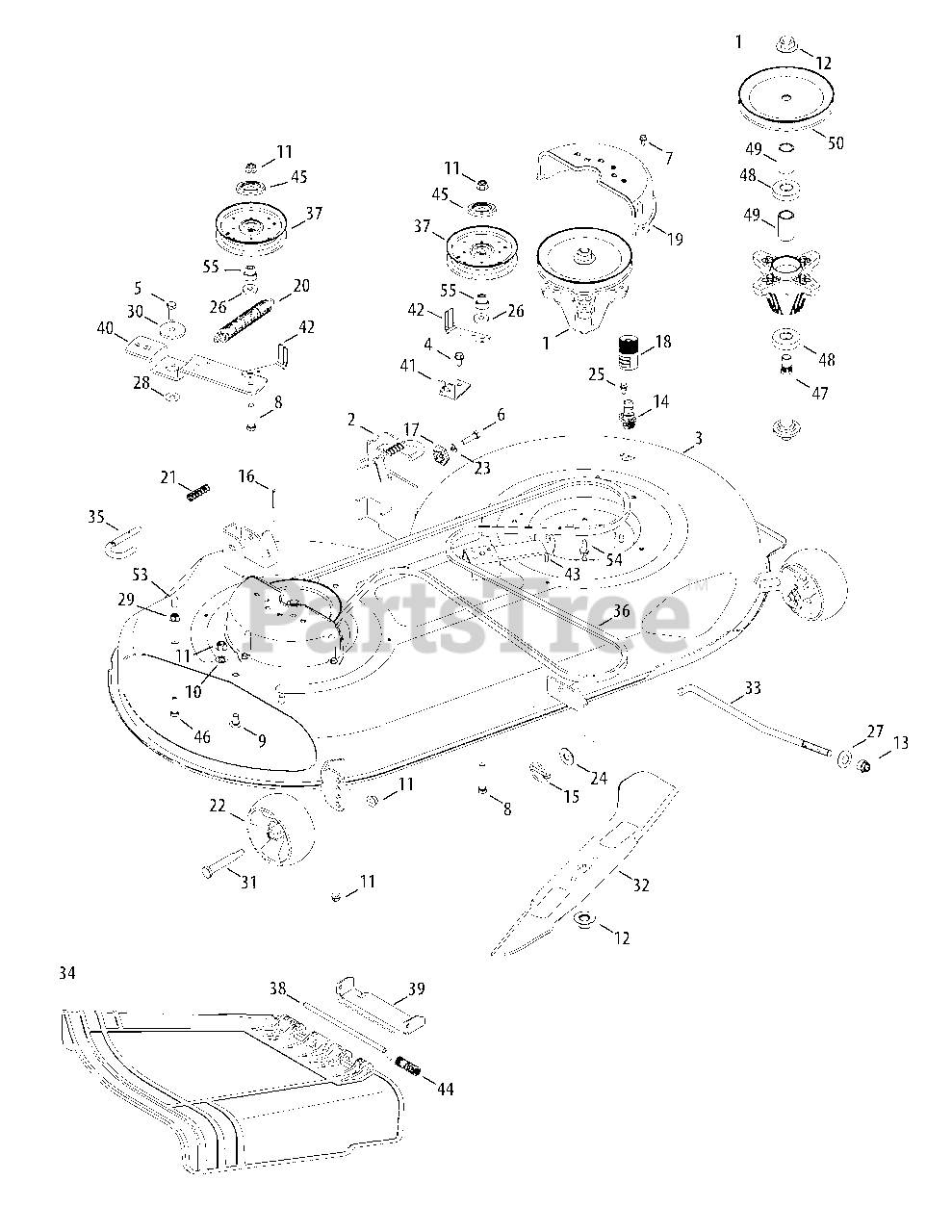

Mower Deck 46-Inch (Electric PTO) Parts Diagram

  • Title

1

MTD 918-04865A

Pulley Spindle Ass’y 6.93 dia.

$147.99

$

Usually ships in 3-6 days

0

2

MTD 683-0254B-0606

Deck Hanger Bracket Ass’y LH
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

3

MTD 983-04578B-0606

Deck, 46" w/2 wheel mounts

$471.99

$

Usually ships in 3-6 days

0

4

MTD 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0514

Hex Screw, 3/8-16, 1.0, Gr 5, Std

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0528

Hex Wash Tap Scr 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-3144

Hex. Hd. Cap Scr. 3/8-16 x 2.0 Gr. 5

$4.49

$

In Stock, Qty 7

0

9

MTD 710-3178

Carriage Bolt 3/8-16 x .75 Gr. 1

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04065

Hex Flange Locknut 3/8-16 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-0417A

Hex Flange Locknut 5/8-18

$6.99

$

In Stock, Qty 20+

0

13

MTD 712-05046

Hex Locknut 1/2-13

$4.49

$

In Stock, Qty 20+

0

14

MTD 731-07487

Deck Water Nozzle

$4.49

$

In Stock, Qty 6

0

15

MTD 753-04070

Lynch Pin

$9.99

$

In Stock, Qty 20+

0

16

MTD 914-0470

Cotter Pin 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

17

MTD 917-04074

Deck Gear Adjuster

$13.99

$

In Stock, Qty 20+

0

18

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

19

MTD 731-06496

Belt Cover

$23.99

$

In Stock, Qty 20+

0

20

MTD 732-0459C

Extension Spring .94 dia. x 6.74 Lg.

$18.99

$

In Stock, only 1 left!

0

21

MTD 732-04652

Compression Spring .535 x 1.751

$6.99

$

In Stock, only 3 left!

0

22

MTD 734-04155

Deck Wheel 5.0 Dia.

$20.99

$

In Stock, Qty 20+

0

23

MTD 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

24

MTD 936-0179

Flat Washer .531 ID x 1.25 OD x .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

25

MTD 738-04278

Shoulder Screw 1/4-20 x 0.50

$6.99

$

In Stock, Qty 7

0

26

MTD 736-0262

Flat Washer .385 ID x .870 OD x .092

$3.99

$

Usually ships in 3-6 days

0

27

MTD 736-0317

Cupped Washer .63 x 1.25 x .18

$7.99

$

In Stock, Qty 20+

0

28

MTD 936-0344

Flat Washer .385 x 1.0 x .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

29

MTD 712-04063

Hex Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

30

MTD 738-04162C

Shoulder Spacer .8540 x .200

$13.99

$

In Stock, Qty 20+

0

31

MTD 938-3056

Shoulder Bolt .496 x 2.5, 3/8-16

$9.49

$

In Stock, Qty 20+

0

32

MTD 942-04290

Blade, 23.25", 2-in-1
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

33

MTD 747-04944B

Front Lift Deck Rod

$24.99

$

In Stock, Qty 6

0

34

MTD 631-05191

Side Discharge Chute Assembly
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

35

MTD 747-1116

Deck Release Pin

$12.99

$

Usually ships in 3-6 days

0

36

MTD 954-04219

V-Belt

$50.99

$

In Stock, Qty 20+

0

37

MTD 756-04129C

Idler Pulley w/Flange 4.25 Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

38

MTD 711-04847B

Hinge Pin .3125 diam. x 7.96" Lg.

$8.99

$

In Stock, Qty 8

0

39

MTD 783-06074A

Chute Bracket

$32.99

$

In Stock, only 1 left!

0

40

MTD 783-05946

Idler Pivot Bracket

$38.99

$

In Stock, Qty 12

0

41

MTD 783-06243-0606

Deck Cable Engagement Bracket

$10.99

$

Usually ships in 3-6 days

0

42

MTD 783-06368A-0606

Belt Guard Pulley Bracket
(Superseded to 783-06368A-0637)

$21.99

$

In Stock, Qty 20+

0

43

MTD 783-06643-0606

Deck Support Stationary Idler Brkt.

$9.49

$

Usually ships in 3-6 days

0

44

MTD 732-04372

Torsion Spring .44 ID x 2.0

$10.99

$

In Stock, Qty 9

0

45

MTD 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

46

MTD 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, only 4 left!

0

47

MTD 738-1186A

Spindle Shaft 6.11" Lg.

$49.99

$

In Stock, Qty 14

0

48

MTD 941-0919B

Ball Bearing .787 ID x 1.85 OD x .551

$21.99

$

In Stock, Qty 20+

0

49

MTD 750-04936

Spacer .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

50

MTD 756-04356

Deck Pulley 6.93 dia.

$37.99

$

In Stock, only 1 left!

0

53

MTD 720-05010

Cap, .290 x .50

$4.49

$

In Stock, Qty 7

0

54

MTD 710-1260A

Hex. TT Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

55

MTD 748-05029A

Idler Shoulder Spacer

$4.99

$

In Stock, Qty 20+

0
