YT 4220 SE (13AP91KS897) - Columbia 42" Yard Tractor (2013) Electric PTO Parts Diagram

42" Yard Tractor

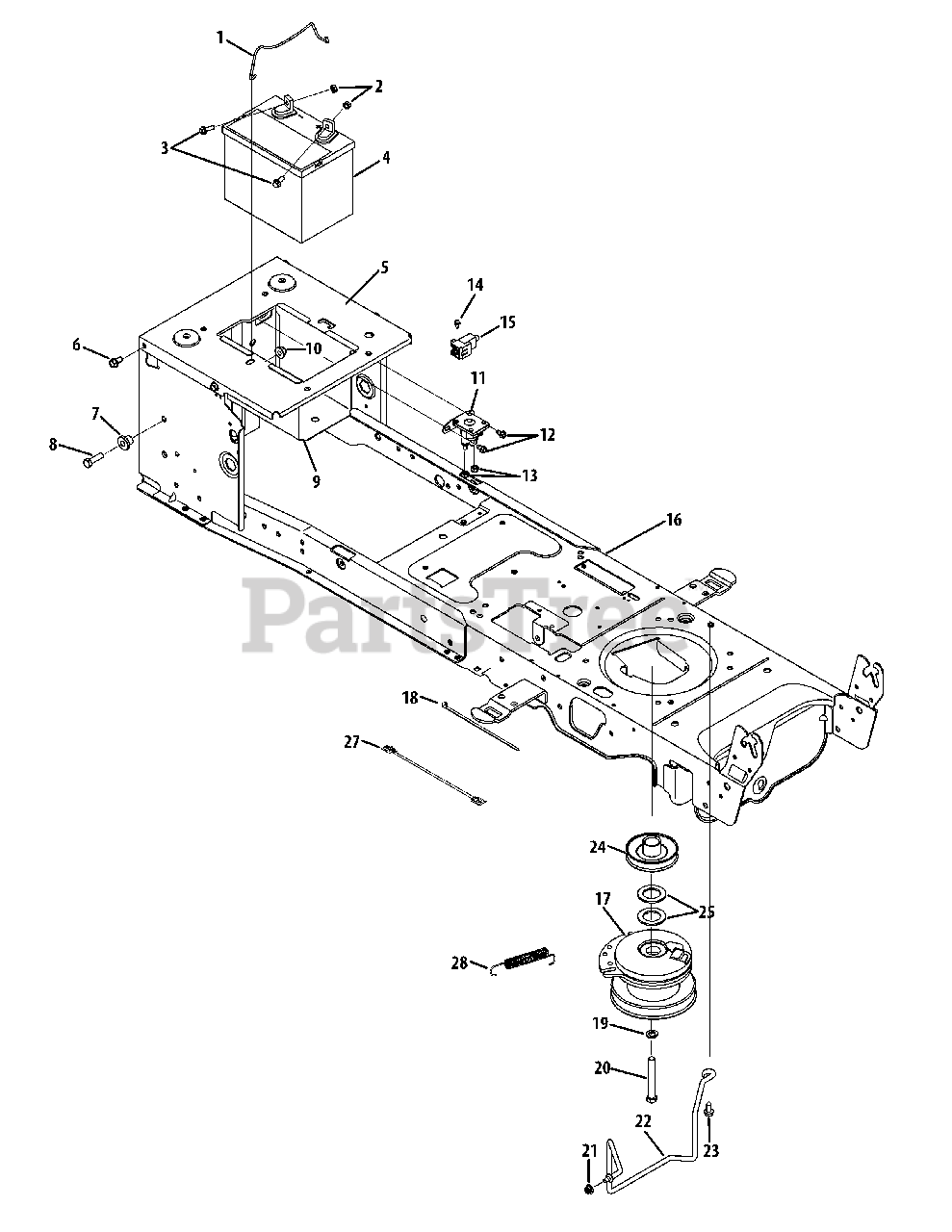

Electric PTO Parts Diagram

  • Title

1

MTD 747-04121A

Battery Hold Down Rod

$6.49

$

In Stock, Qty 20+

0

2

MTD 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 10

0

3

MTD 710-04666

Hex Hd. Flg. Scr. 1/4-20 x .75 Gr. 5

$6.99

$

In Stock, only 3 left!

0

4

MTD 925-1707D

Battery

$

$

Not available

5

MTD 783-06089-0606

Seat Frame Bracket

$

$

Not available

6

MTD 710-04484

Hex Wash Hd. Tapp Scr. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

MTD 738-04058

Shoulder Spacer .38 x 1.0 x .70

$4.49

$

Usually ships in 3-6 days

0

8

MTD 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 9

0

9

MTD 783-0349-0606

Battery Tray

$

$

Not available

10

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Ny lon

$3.99

$

In Stock, Qty 16

0

11

MTD 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

12

MTD 710-0653

Hex Wash HD Tapp Scr 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

13

MTD 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

14

MTD 738-04237A

Shoulder Screw #10-32 x .50

$6.49

$

In Stock, Qty 7

0

15

MTD 725-04363

Switch, Interlock

$15.99

$

In Stock, Qty 15

0

16

MTD 683-04469C-0606

Lower Frame Ass’y
(Superseded to 683-04469D-0637)

$495.99

$

Usually ships in 3-6 days

0

17

MTD 917-04163A

Electric PTO Clutch

$465.99

$

Usually ships in 3-6 days

0

18

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

19

MTD 736-0322

Flat Washer .450 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

20

MTD 710-04379A

Hex Screw 7/16-20 x 3.5 Gr. 5

$6.49

$

Usually ships in 3-6 days

0

21

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

22

MTD 747-05171A

Keeper Rod (42" & 46")

$32.99

$

In Stock, Qty 8

0

23

MTD 710-04484

Hex Wash Hd. Tapp Scr. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

24

MTD 756-0978B

Engine Pulley

$66.99

$

In Stock, Qty 13

0

25

MTD 736-0277

Flat Washer 1.03 ID x 1.64 OD x .095

$4.49

$

In Stock, Qty 20+

0

26

MTD 932-0320

Ext. Spring .38 OD x 3.25" Lg.

$10.99

$

In Stock, only 1 left!

0

27

MTD 725-04791A

Jumper Clutch Harness

$15.99

$

Usually ships in 3-6 days

0

28

MTD 932-0320

Extension Spring

$10.99

$

In Stock, only 1 left!

0
