YT 4220 (13AX91KS897) - Columbia 42" Yard Tractor (2013) Front and Rear Wheels Parts Diagram

42" Yard Tractor

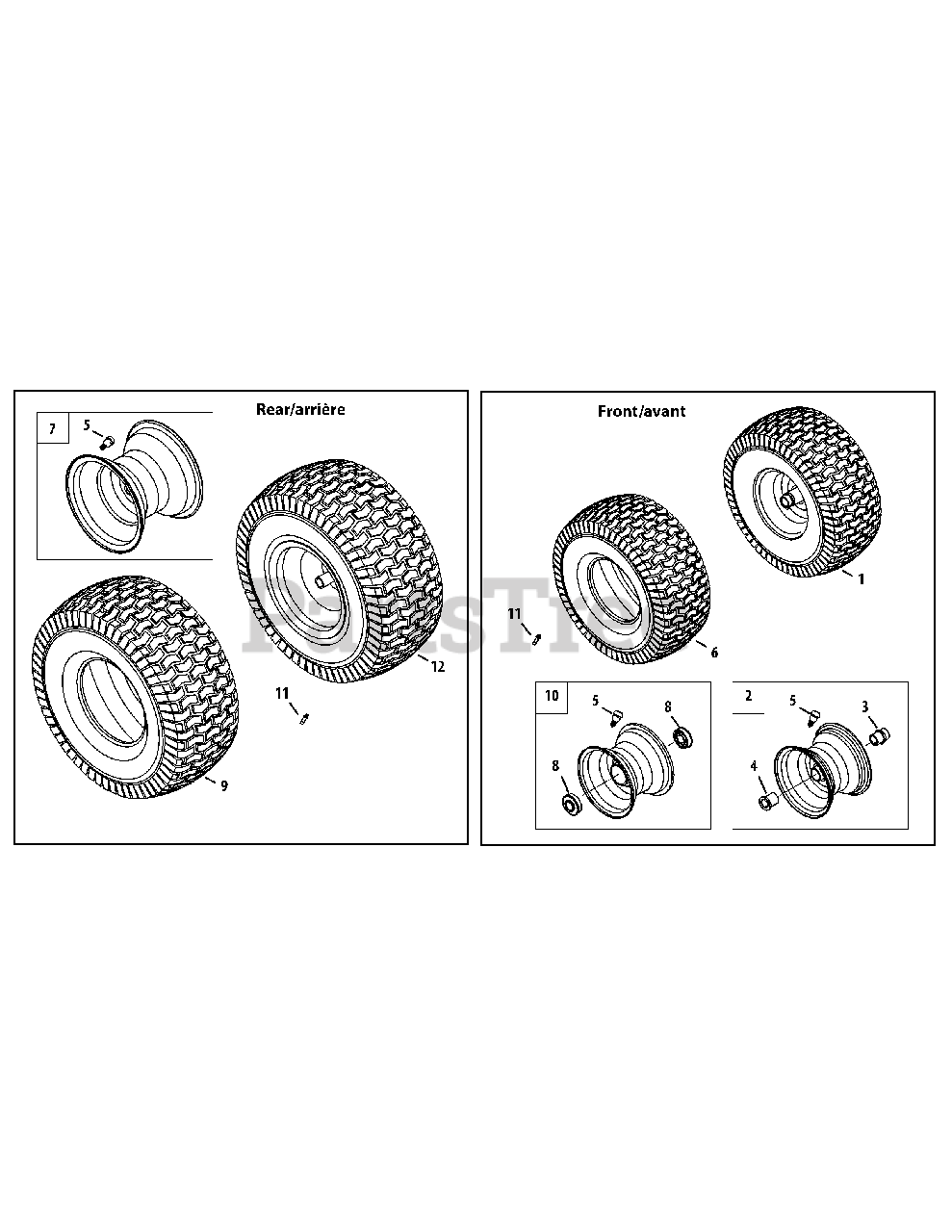

Front and Rear Wheels Parts Diagram

  • Title

1

MTD 634-04406-0911

Wheel Ass’y, 15 x 6 Plst. Brg. (Grey)

$

$

Not available

2

MTD 634-04405-0662

Rim Ass’y, Plst. Brg. (Grey)

$69.99

$

Usually ships in 3-6 days

0

3

MTD 741-0990B

Flg. Bearing .760 ID w/fitting

$10.99

$

In Stock, Qty 20+

0

4

MTD 741-0516B

Flg. Bearing .760 x 1.0 x 1.20

$6.49

$

In Stock, Qty 20+

0

5

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

6

MTD 734-1731-0901

Tire

$49.99

$

Usually ships in 3-6 days

0

7

MTD 634-04369-0662

Rim Ass’y, 8.0 x 7.0 x .750 (Grey)

$165.99

$

Usually ships in 3-6 days

0

8

MTD n/a

Ball Bearing .750 ID x 1.750 OD

Note: Not used on these models

$

$

Currently unavailable

9

MTD 734-1730-0901

Tire, 20 x 8 x 8 Square Shoulder

$99.99

$

In Stock, only 2 left!

0

10

MTD n/a

Rim Ass’y, Ball Brg. (Beige)

Note: Not used on these models

$

$

Currently unavailable

11

MTD n/a

Grease Fitting

Note: Not used on these models

$

$

Currently unavailable

12

MTD 634-0104-0911

Wheel Ass’y, 20 x 8 (Grey)

$144.99

$

In Stock, only 1 left!

0
