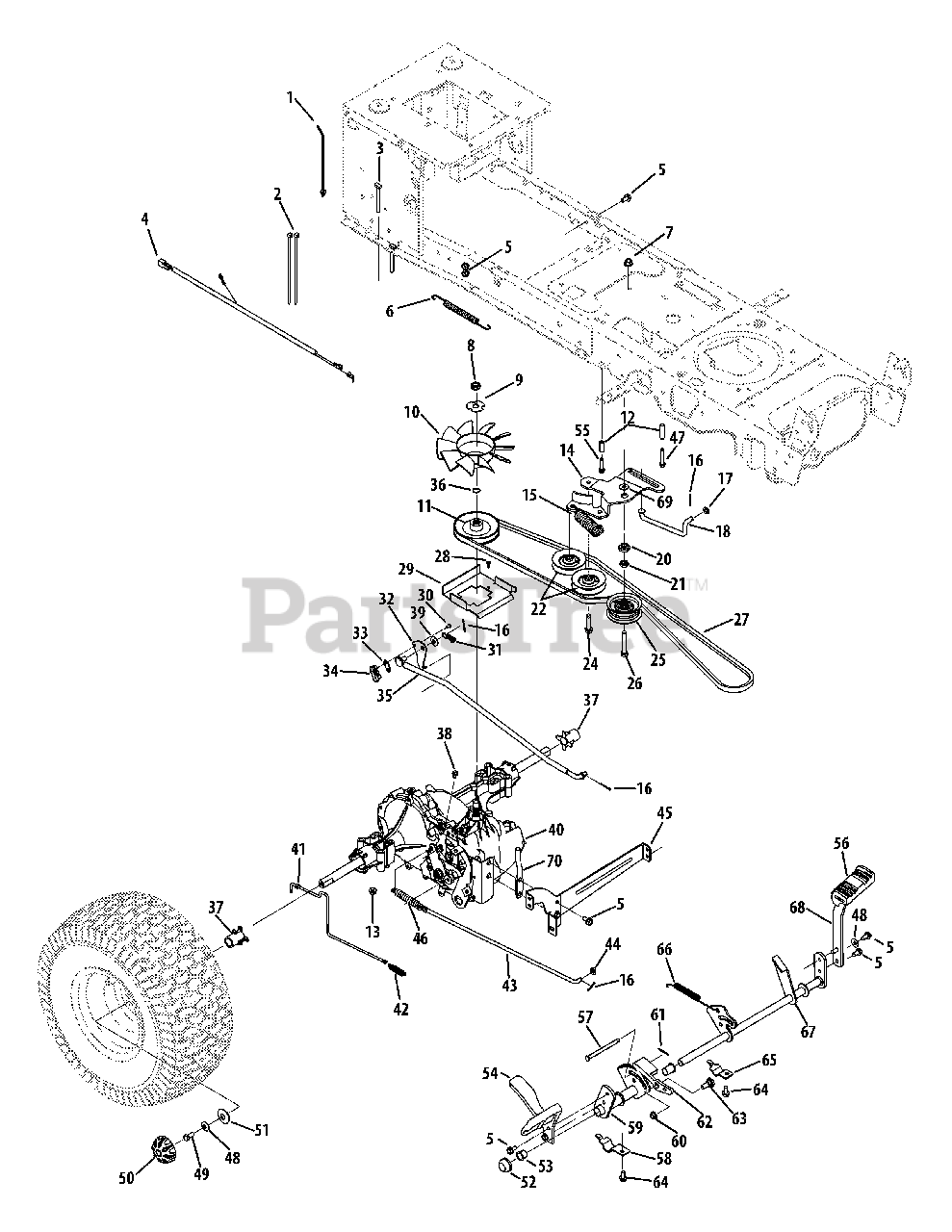

YT 4220 (13AX91KS897) - Columbia 42" Yard Tractor (2013) Drive System Parts Diagram

42" Yard Tractor

Drive System Parts Diagram

  • Title

1

MTD 926-0154

Cable Tie, 7.5

$6.49

$

Usually ships in 3-6 days

0

2

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0176

Hex Bolt 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

4

MTD 725-04791A

Jumper Harness

$15.99

$

Usually ships in 3-6 days

0

5

MTD 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

MTD 732-04606

Extension Spring .50 dia. x 12.6

$12.99

$

In Stock, only 2 left!

0

7

MTD 912-0431

Flange Locknut 3/8-16 Gr. F

$4.99

$

In Stock, Qty 20+

0

8

MTD 912-0346

Jam Locknut 1/2-10
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 6

0

9

MTD 736-04263

Lockwasher

$6.99

$

In Stock, Qty 20+

0

10

MTD 731-06098

Hydro Fan

$19.99

$

In Stock, Qty 20+

0

11

MTD 756-04308

Input Pulley

$31.99

$

In Stock, Qty 20+

0

12

MTD 750-04456

Spacer, .260 x .372 x 1.420

$7.49

$

In Stock, only 3 left!

0

13

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 5

0

14

MTD 783-06027B

Idler Bracket

$

$

Not available

15

MTD 732-04624

Extension Spring .59 x 4.0

$10.99

$

In Stock, only 1 left!

0

16

MTD 914-0111

Cotter Pin 3/32 dia x 1.00 Lg.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

17

MTD 936-0264

Flat Washer .330 x .630 x .0635

$6.99

$

In Stock, only 3 left!

0

18

MTD 747-04957A

Pedal Transmission By pass Rod

$13.99

$

Usually ships in 3-6 days

0

20

MTD 738-04420

Shoulder Spacer 1.375 x .38 x .183

$6.99

$

In Stock, only 3 left!

0

21

MTD 912-0240

Hex Jam Nut 7/16-20

$4.49

$

In Stock, Qty 20+

0

22

MTD 756-04325

Idler Pulley

$24.99

$

In Stock, Qty 20+

0

24

MTD 710-1007

Hex L-Wash HD Scr 3/8-16 x 1.5

$6.49

$

In Stock, only 1 left!

0

25

MTD 756-04224

Idler Pulley, Flat 2.75 OD

$26.99

$

In Stock, Qty 20+

0

26

MTD 710-3011

Hex Bolt 3/8-16 x 2.25" Lg.

$6.99

$

In Stock, Qty 20+

0

27

MTD 954-04207

V-Belt

$38.99

$

In Stock, Qty 20+

0

28

MTD 710-0351

Truss Mach B-Tapp Scr #10 X .50

$4.49

$

Usually ships in 3-6 days

0

29

MTD 783-06260-0637

Belt Disengage Support

$

$

Not available

30

MTD 710-0227

Hex Washer Screw #8-18 x .50

$4.49

$

In Stock, Qty 20+

0

31

MTD 732-3118

Extension Spring 3/8 x 1.44

$10.99

$

In Stock, only 1 left!

0

32

MTD 783-1019B

Switch Actuator Bracket

$10.99

$

In Stock, only 1 left!

0

33

MTD 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 11

0

34

MTD 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

35

MTD 747-04979

Hydro Control Rod

$116.99

$

Usually ships in 3-6 days

0

36

MTD 732-0729

Wire Ring

$4.99

$

In Stock, only 4 left!

0

37

MTD 731-05299A

Sleeve 0.765 x 1.5

$4.49

$

In Stock, only 3 left!

0

38

MTD 710-0653

Hex Wash HD Tapp Scr 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

39

MTD 736-3010

Flat Washer .406 ID x .812 OD x .134

$4.99

$

In Stock, only 1 left!

0

40

MTD 918-0319

Hydro Transmission

$

$

Not available

41

MTD 747-04991

Hydro Bypass Rod

$9.99

$

Usually ships in 3-6 days

0

42

MTD 932-0209

Extension Spring .47 OD x 2.03 Lg.

$7.99

$

In Stock, only 2 left!

0

43

MTD 747-04139

Brake Rod

$24.99

$

In Stock, only 1 left!

0

44

MTD 936-3008

Flat Washer .312 ID x .75 OD

$6.99

$

Usually ships in 3-6 days

0

45

MTD 783-06133-0637

Hydro Mount Bracket

$31.99

$

Usually ships in 3-6 days

0

46

MTD 732-0716D

Extension Spring .59 x 4.0

$13.99

$

In Stock, only 1 left!

0

47

MTD 710-1026

Hex Washer Hd. TT Screw 1/4-20 x 1.75

$6.99

$

In Stock, Qty 13

0

48

MTD 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

49

MTD 710-0627

Hex L-Bolt 5/16-24 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

50

MTD 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

51

MTD 736-0430

Flat Washer .350 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0

52

MTD 726-0214

Push Cap 5/8" Dia Rod

$10.99

$

Usually ships in 3-6 days

0

53

MTD 741-0495

Nyliner Flanged Brg.

$4.99

$

In Stock, Qty 20+

0

54

MTD 719-0584B-0637

Control Pedal

$60.99

$

In Stock, only 1 left!

0

55

MTD 710-1325

Hex Washer Hd. TT Screw 1/4-20 x 1.625

$4.49

$

In Stock, Qty 20+

0

56

MTD 735-04136

Brake Pedal Pad

$15.99

$

Usually ships in 3-6 days

0

57

MTD 711-05068A

Clevis Pin 5/16 x 3.985

$7.99

$

Usually ships in 3-6 days

0

58

MTD 783-05914

Transmission Rod Support Strap

$7.49

$

Usually ships in 3-6 days

0

59

MTD 683-04537

Hydro Pedal Brkt. Assembly
(Superseded to 683-04537A)

$

$

Not available

60

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

61

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

62

MTD 748-04203

Cruise Latch

$14.99

$

Usually ships in 3-6 days

0

63

MTD 938-0380

Shoulder Screw .500 x .25
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

64

MTD 710-0604A

Self-tapping Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

65

MTD 783-05940

Brake Shaft Support Strap

$7.49

$

Usually ships in 3-6 days

0

66

MTD 732-04587

Extension Spring .63 x 4.95

$7.49

$

In Stock, Qty 12

0

67

MTD 647-04152D

Brake Control Assembly

$

$

Not available

68

MTD 783-06103A-0637

Brake Pedal Bracket

$17.99

$

Usually ships in 3-6 days

0

69

MTD 936-0344

Flat Washer .385 ID x 1.0 x .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

70

MTD 747-05444A

Belt Keeper Rod

$10.99

$

In Stock, only 1 left!

0
