YT 4218 (13AV90KS897) - Columbia 42" Yard Tractor (2014) Manual PTO Parts Diagram

42" Yard Tractor

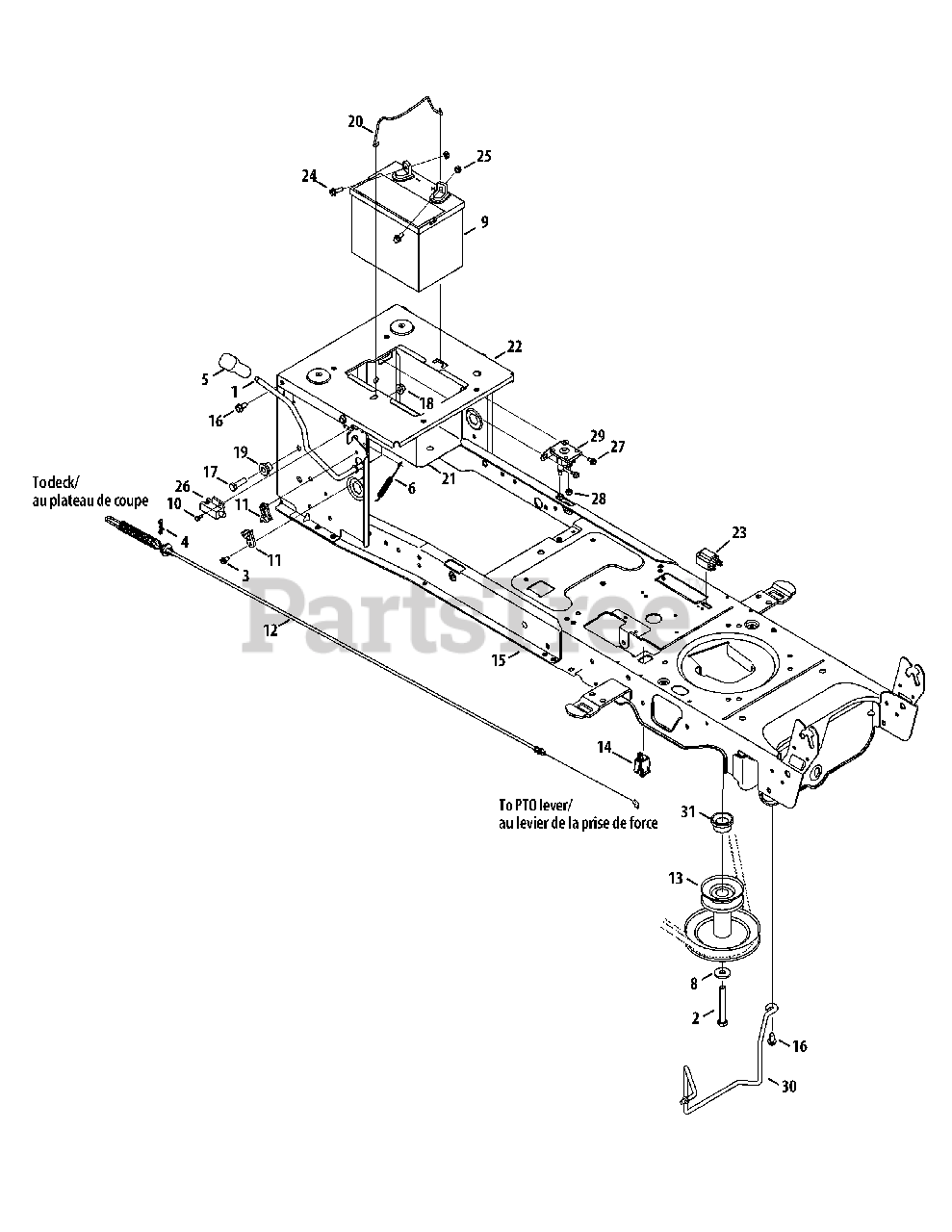

Manual PTO Parts Diagram

  • Title
1

MTD 647-04151

Handle Ass’y , PTO

$22.99

$

In Stock, only 4 left!

0

2

MTD 710-04379A

Hex Screw 7/16-20 x 3.5 Gr. 5

$6.49

$

In Stock, only 3 left!

0

3

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

4

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

5

MTD 720-04049A

Handle Grip 3/8

$16.99

$

In Stock, only 1 left!

0

6

MTD 732-0932

Extension Spring .38 Dia. x 5.6

$14.99

$

In Stock, only 4 left!

0

7

MTD 936-0171

Lockwasher 7/16 ID
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

8

MTD 736-0322

Flat Washer .450 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

9

MTD 925-1707D

Battery 245 CCA (Dry)

$

$

Not available

10

MTD 738-04237A

Shoulder Screw #10-32 x .50

$6.49

$

In Stock, Qty 7

0

11

MTD 741-04119A

Bearing, PTO

$4.99

$

In Stock, Qty 6

0

12

MTD 946-04618C

Deck Engagement Cable

$46.99

$

In Stock, Qty 20+

0

13

MTD 756-04196A

Engine Pulley 3.39 x 6.12 Dia.

Note: (Transmatic Models)

$90.99

$

In Stock, only 1 left!

0

14

MTD 725-04807

Switch, Plunger

Note: (snap mount)

$14.99

$

In Stock, only 1 left!

0

15

MTD 683-04469D-0606

Lower Frame Ass’y
(Superseded to 683-04469D-0637)

$495.99

$

Usually ships in 3-6 days

0

16

MTD 710-04484

Hex Wash Hd. Tapp Scr. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

19

MTD 738-04058

Shoulder Spacer .38 x 1.0 x .70

$4.49

$

In Stock, only 1 left!

0

20

MTD 747-04121A

Battery Retainer Rod

$6.49

$

In Stock, Qty 20+

0

21

MTD 783-0349-0637

Battery Tray

$

$

Not available

22

MTD 783-06089-0637

Seat Frame Bracket

$57.99

$

In Stock, only 1 left!

0

23

MTD 725-04232

Switch, 3-Pole

Note: (NC-NO-NO - Brake)

$49.99

$

In Stock, only 3 left!

0

24

MTD 710-04666

Hex Hd. Flg. Scr. 1/4-20 x .75 Gr. 5

$6.99

$

In Stock, only 3 left!

0

25

MTD 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 19

0

26

MTD 725-04363

Switch, In ter lock

$15.99

$

In Stock, Qty 10

0

27

MTD 1754128

Hex Wash HD Tapp Scr 1/4-20 x .375

$3.99

$

In Stock, only 2 left!

0

28

MTD 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Ny lon

$3.99

$

In Stock, Qty 20+

0

29

MTD 725-06153

Solenoid
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 13

0

30

MTD 747-05171A

Belt Keeper Rod

$32.99

$

In Stock, Qty 8

0
