YT 4218 (13AV90KS897) - Columbia 42" Yard Tractor (2014) Drive System Parts Diagram

42" Yard Tractor

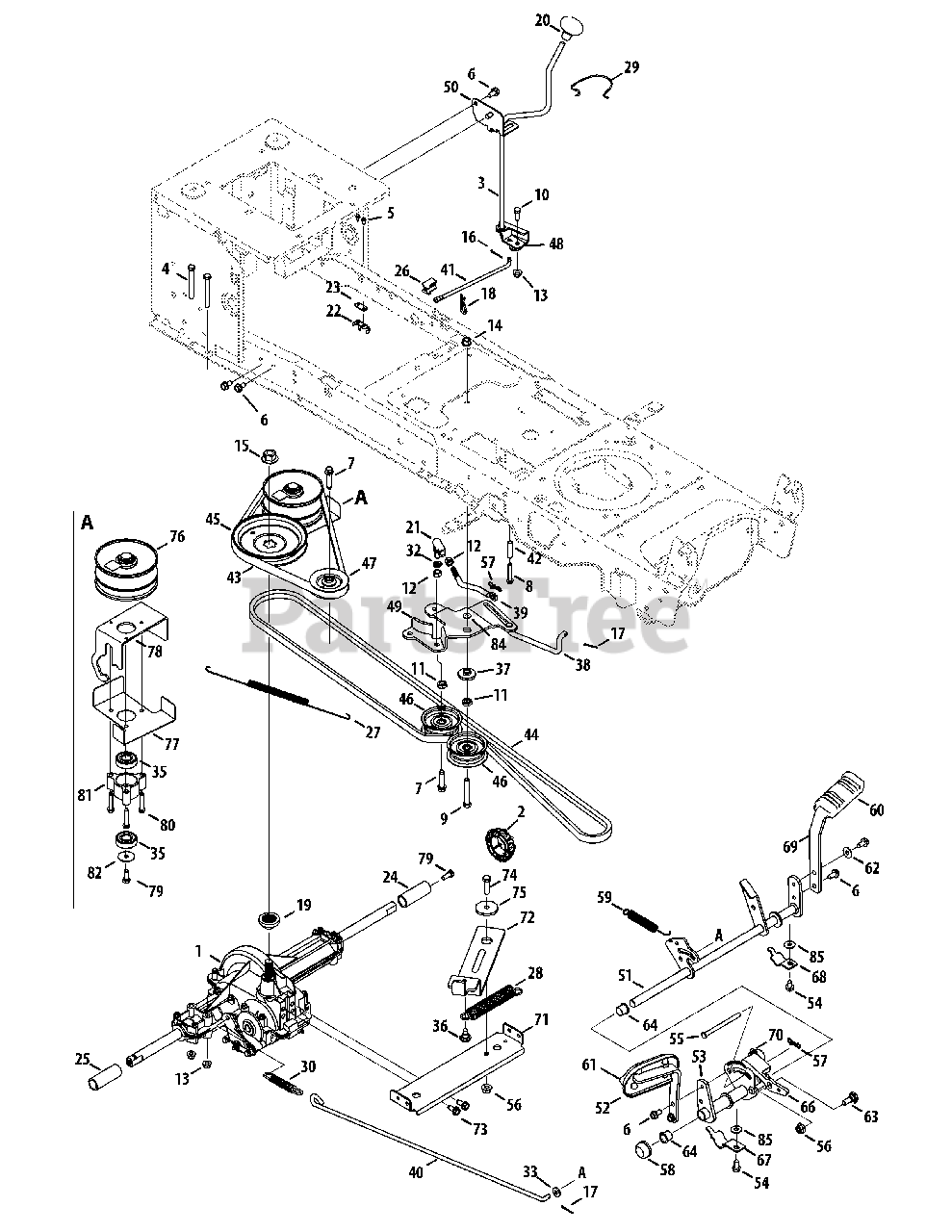

Drive System Parts Diagram

  • Title

1

MTD 918-04566

Transaxle Ass’y
(Superseded to 918-04566B)

$718.99

$

In Stock, only 1 left!

0

2

MTD 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

3

MTD 647-04035

Shift Lever Ass’y

$37.99

$

Usually ships in 3-6 days

0

4

MTD 710-0176

Hex Scr 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

5

MTD 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$4.49

$

In Stock, Qty 15

0

6

MTD 710-04484

Hex Wash Hd. Tapp Scr. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-1007

Hex L-Wash HD Scr 3/8-16 x 1.5

$6.49

$

In Stock, only 1 left!

0

8

MTD 710-1026

Hex TT-Tap Scr 1/4-20 x 1.75

$6.99

$

In Stock, Qty 13

0

9

MTD 710-3011

Hex Bolt 3/8-16 x 2.25" Lg.

$6.99

$

In Stock, Qty 20+

0

10

MTD 710-3025

Screw-Hex Cap

$3.99

$

In Stock, Qty 8

0

11

MTD 912-0240

Hex Jam Nut 7/16-20

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 13

0

13

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Ny lon

$3.99

$

In Stock, Qty 20+

0

14

MTD 912-0431

Hex. Flanged L-Nut 3/8-16 Gr. F

$4.99

$

In Stock, Qty 20+

0

15

MTD 712-0700

Flange Nut

$10.99

$

In Stock, only 2 left!

0

16

MTD 914-0104

Int. Cotter Pin .072 x 1.13" Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

17

MTD 914-0111

Cotter Pin 3/32 dia x 1.00 Lg.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

18

MTD 914-0209

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

19

MTD 718-04407

Hub 5/8" spline

$12.99

$

In Stock, only 2 left!

0

20

MTD 720-04028

Shift Knob

$10.99

$

In Stock, only 4 left!

0

21

MTD 923-3018

Drag Link Ball Joint

$16.99

$

In Stock, Qty 20+

0

22

MTD 725-1644

Short Spring Switch

$9.99

$

In Stock, only 1 left!

0

23

MTD 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 9

0

24

MTD 731-04602

Sleeve .758 x .821 x 3.3125

$6.49

$

In Stock, only 1 left!

0

25

MTD 731-04604

Sleeve .758 x .821 x 2.4375

$6.99

$

In Stock, only 1 left!

0

26

MTD 731-06894

Shift Plate Bearing

$6.49

$

In Stock, only 1 left!

0

27

MTD 732-04612

Extension Spring .70 OD x 12.0

$16.99

$

In Stock, only 1 left!

0

28

MTD 732-04616B

Extension Spring .97 OD x 6.18

$14.99

$

In Stock, only 2 left!

0

29

MTD 732-0525

Complete Spring Clip

$10.99

$

In Stock, only 1 left!

0

30

MTD 732-0716D

Extension Spring .59 OD x 4.0

$13.99

$

In Stock, only 2 left!

0

32

MTD 936-0169

L-Wash 3/8 ID
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

33

MTD 936-3008

Flat Washer .312 ID x .75 OD

$6.99

$

Usually ships in 3-6 days

0

35

MTD 941-0600

Ball Bearing 17 x 40 x 12

$25.99

$

In Stock, Qty 20+

0

36

MTD 738-04091A

Shoulder Screw 5/16-18, .43 x .29

$3.99

$

Usually ships in 3-6 days

0

37

MTD 738-04420

Shoulder Spacer 1.375 x .380 x .183

$6.99

$

In Stock, only 3 left!

0

38

MTD 747-04957A

Footpedal By pass Rod

$13.99

$

Usually ships in 3-6 days

0

39

MTD 747-05604

Idler Adjustment Rod

$14.99

$

Usually ships in 3-6 days

0

40

MTD 747-04984

Brake Rod

$21.99

$

In Stock, only 1 left!

0

41

MTD 747-05243

Shift Rod

$11.99

$

In Stock, only 3 left!

0

42

MTD 750-04456

Spacer .260 x .372 x 1.420

$7.49

$

In Stock, only 4 left!

0

43

MTD 954-04208A

V-Belt

$45.99

$

In Stock, Qty 20+

0

44

MTD 954-0467A

V-Belt

$50.99

$

In Stock, Qty 20+

0

45

MTD 956-04002

Pulley, V-Type, 7.25 dia.

$27.99

$

In Stock, Qty 14

0

46

MTD 756-04224

Idler Pulley, Flat 2.75 OD

$26.99

$

In Stock, Qty 20+

0

47

MTD 756-04325

Idler Pulley V-Type x 3.06

$24.99

$

In Stock, Qty 20+

0

48

MTD 783-04595A

Shift Adjustment Bracket

$10.99

$

In Stock, only 4 left!

0

49

MTD 783-06027B

Idler Bracket (Centre Double)

$

$

Not available

50

MTD 783-06132

Shift Bracket F-N-R

$8.99

$

Usually ships in 3-6 days

0

51

MTD 647-04152D

Brake Control Ass’y

$

$

Not available

52

MTD 683-0266

AutoDrive Pedal Assembly

$

$

Not available

53

MTD 683-04744

Pedal Bracket Assembly

$

$

Not available

54

MTD 710-0604A

Self-tapping Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

55

MTD 711-05068A

Clevis Pin 5/16 x 3.985

$7.99

$

Usually ships in 3-6 days

0

56

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

57

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

58

MTD 726-0214

Push Cap 5/8" Dia Rod

$10.99

$

Usually ships in 3-6 days

0

59

MTD 732-04587

Extension Spring .63 dia. x 4.95

$7.49

$

In Stock, Qty 12

0

60

MTD 735-04136

Brake Pedal Pad

$15.99

$

Usually ships in 3-6 days

0

61

MTD 735-04272

AutoDrive Pedal Pad

$7.99

$

Usually ships in 3-6 days

0

62

MTD 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

63

MTD 938-0380

Shoulder Screw .500 x .25
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

64

MTD 741-0495

Nyliner Flanged Brg.

$4.99

$

Usually ships in 3-6 days

0

66

MTD 748-04203

Cruise Latch

$14.99

$

Usually ships in 3-6 days

0

67

MTD 783-05914

Pedal Strap Support Bracket

$7.49

$

Usually ships in 3-6 days

0

68

MTD 783-05940

Pedal Strap Support Bracket

$7.49

$

Usually ships in 3-6 days

0

69

MTD 783-06103A-0637

Brake Pedal Bracket

$17.99

$

Usually ships in 3-6 days

0

70

MTD 783-06278

Reinforcement Plate Bracket

$7.49

$

Usually ships in 3-6 days

0

71

MTD 683-04520

Transmission Bracket Assembly

$35.99

$

Usually ships in 3-6 days

0

72

MTD 753-06662

Idler Bracket Ass’y

$22.99

$

In Stock, only 4 left!

0

73

MTD 710-1260A

Hex Wash. Hd. Scr. 5/16-18 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

74

MTD 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 12

0

75

MTD 738-04162C

Shoulder Spacer .884 x .190

$13.99

$

In Stock, Qty 20+

0

76

MTD 956-04015A

Variable Speed Pulley Assembly 4.75 OD
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

77

MTD 683-04522

Belt Keeper Ass’y
(Superseded to 783-06227A)

$16.99

$

Usually ships in 3-6 days

0

78

MTD 683-04612-0637

Variable Bracket Ass’y
(Superseded to 783-06587A)

$34.99

$

Usually ships in 3-6 days

0

79

MTD 710-05339

Sems Scr. 5/16-24 x .75
(Superseded to 710-05339A)

$4.49

$

In Stock, Qty 19

0

80

MTD 710-0778

Hex Wash HD Bolt 1/4-20 x 1.50" Lg.

$4.49

$

In Stock, only 3 left!

0

81

MTD 718-04261

Bearing Cup

$20.99

$

In Stock, only 2 left!

0

82

MTD 736-0362

Flat Washer .22 ID x 1.25

$4.49

$

In Stock, Qty 9

0

83

MTD 736-0430

Flat Washer .350 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0

84

MTD 936-0344

Flat Washer .385 x 1.0 x .03
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

85

MTD 936-0275

Flat Washer .344 x 0.688 x .065
(Superseded to 736-0275)

$

$

Not available
