YT 42 XLS (960480083-00) - Husqvarna 42" Yard Tractor (2014-06) MOWER DECK / CUTTING DECK Parts Diagram

42" Yard Tractor

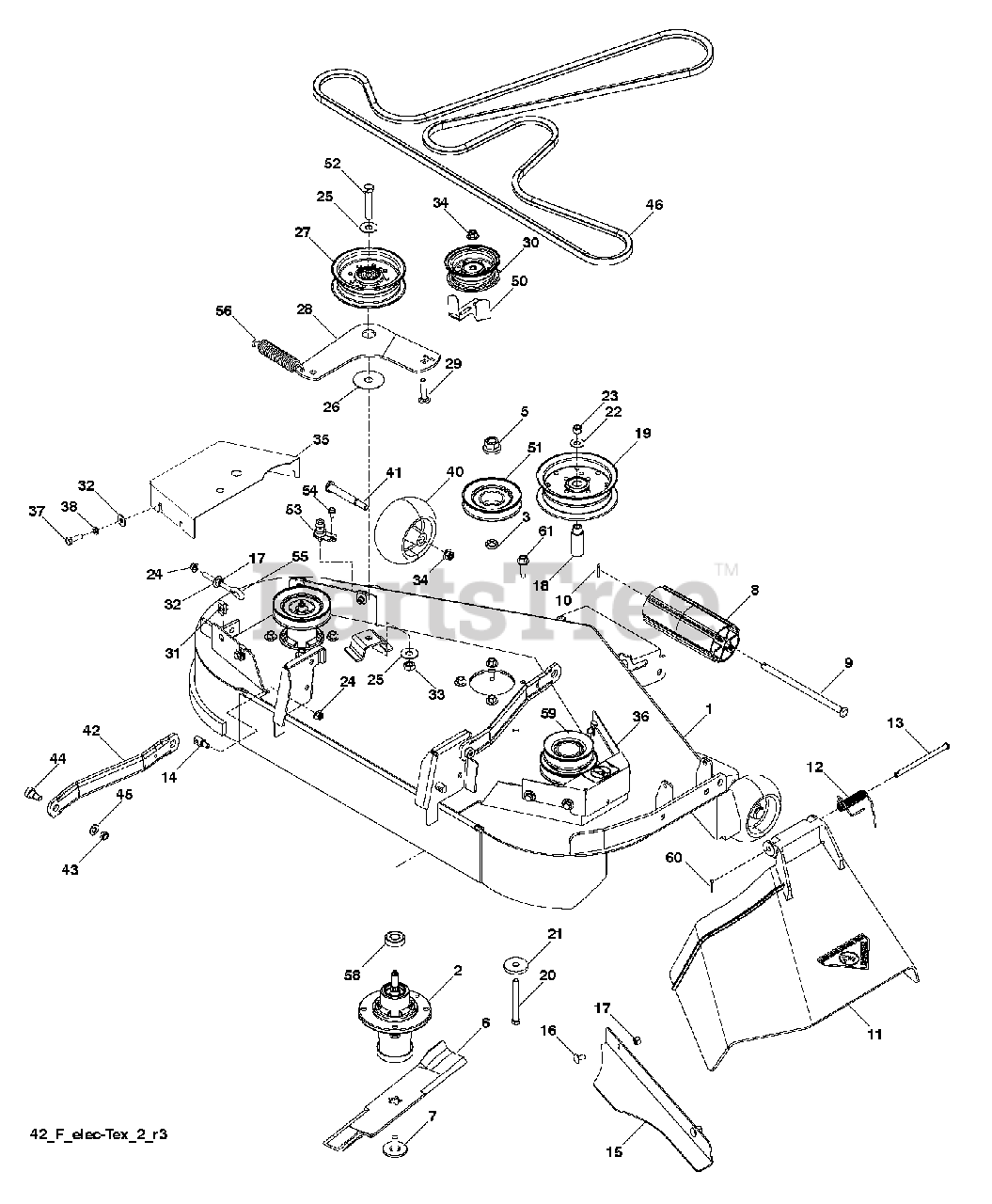

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 574778902

DECK 42" ORANGE
(Superseded to 575438001)

$1941.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

$79.99

$

In Stock, Qty 20+

0

3

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 9

0

5

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 16

0

6

Husqvarna 539112078

BLADE, 14 5/8"

$22.99

$

In Stock, Qty 10

0

7

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 20+

0

9

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

10

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539110731

DISCHARGE CHUTE 42"

$56.99

$

In Stock, only 3 left!

0

12

Husqvarna 539110735

SPRING - TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 4 left!

0

13

Husqvarna 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

15

Husqvarna 539112412

PLATE.CONFINEMENT.42"
(Superseded to 539112413)

$40.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 575224501

BUSHING, IDLER

$31.99

$

In Stock, Qty 5

0

19

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

In Stock, only 1 left!

0

20

Husqvarna 539108271

HCS 3/8-16 X 3-1/2 GR5 ZD

$5.99

$

In Stock, Qty 8

0

21

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

22

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

25

Husqvarna 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 20+

0

28

Husqvarna 574827101

ARM IDLER RAW
(Superseded to 574827102)

$

$

Not available

29

Husqvarna 539990923

RHSNB 3/8-16X1-3/4

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532177968

PULLEY.IDLER.FLAT

$31.99

$

In Stock, Qty 5

0

31

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

32

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 539132019

NUT 7/16-14 HEX WHIZ LK
(Superseded to 873900700)

$7.49

$

In Stock, Qty 5

0

34

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

35

Husqvarna 575224702

SHIELD.BELT.LH.ORANGE

$48.99

$

Usually ships in 3-10 days

0

36

Husqvarna 575967102

SHIELD, BELT, RH 42 ORG

$

$

Not available

37

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

40

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 20+

0

41

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

42

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

43

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

44

Husqvarna 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 574845601

BELT, 42" FAB DECK

$91.99

$

In Stock, only 3 left!

0

50

Husqvarna 575224301

BELT GAURD
(Superseded to 531165901)

$5.99

$

In Stock, only 3 left!

0

51

Husqvarna 575224401

PULLEY, MANDREL 4.08 OP

$34.99

$

In Stock, only 1 left!

0

52

Husqvarna 539104870

BOLT 7/16-14 X 2-1/2 GR 5 ZD
(Superseded to 874780740)

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 13

0

54

Husqvarna 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 6

0

55

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

56

Husqvarna 539106850

SPRING

$

$

Not available

58

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 6

0

59

Husqvarna 575416201

PULLEY, COLLECTION 42

$56.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

61

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

--

Husqvarna 532445357

DECK.ASM SVC.42F.EL.GW.WP.668
(Superseded to 587939001)

$911.99

$

Usually ships in 3-10 days

0
